2003 Chevrolet TrailBlazer 4.2 S, 4WDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Position the power steering pump pulley to the end of the power steering pump shaft.

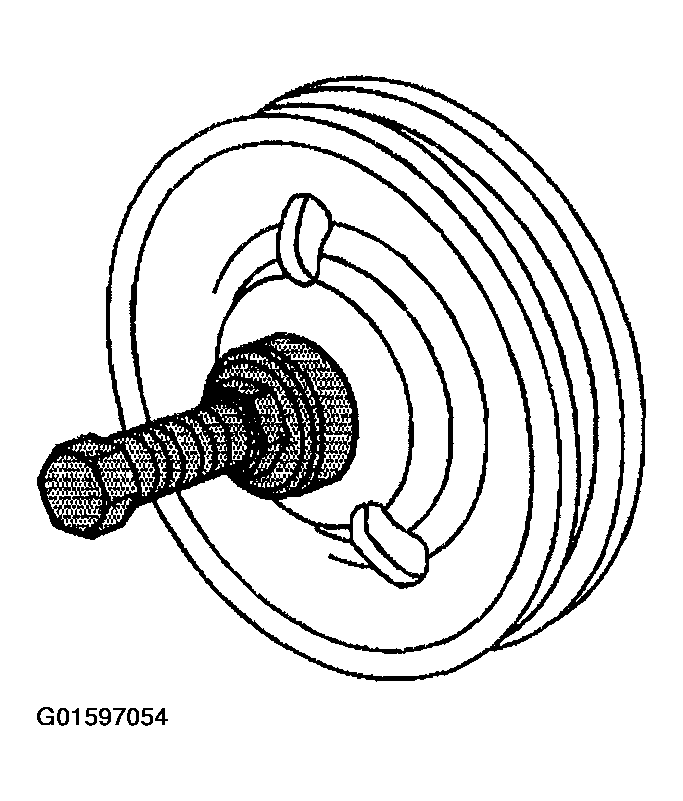

- Using the J 25033-C, install the power steering pump pulley to the power steering pump.

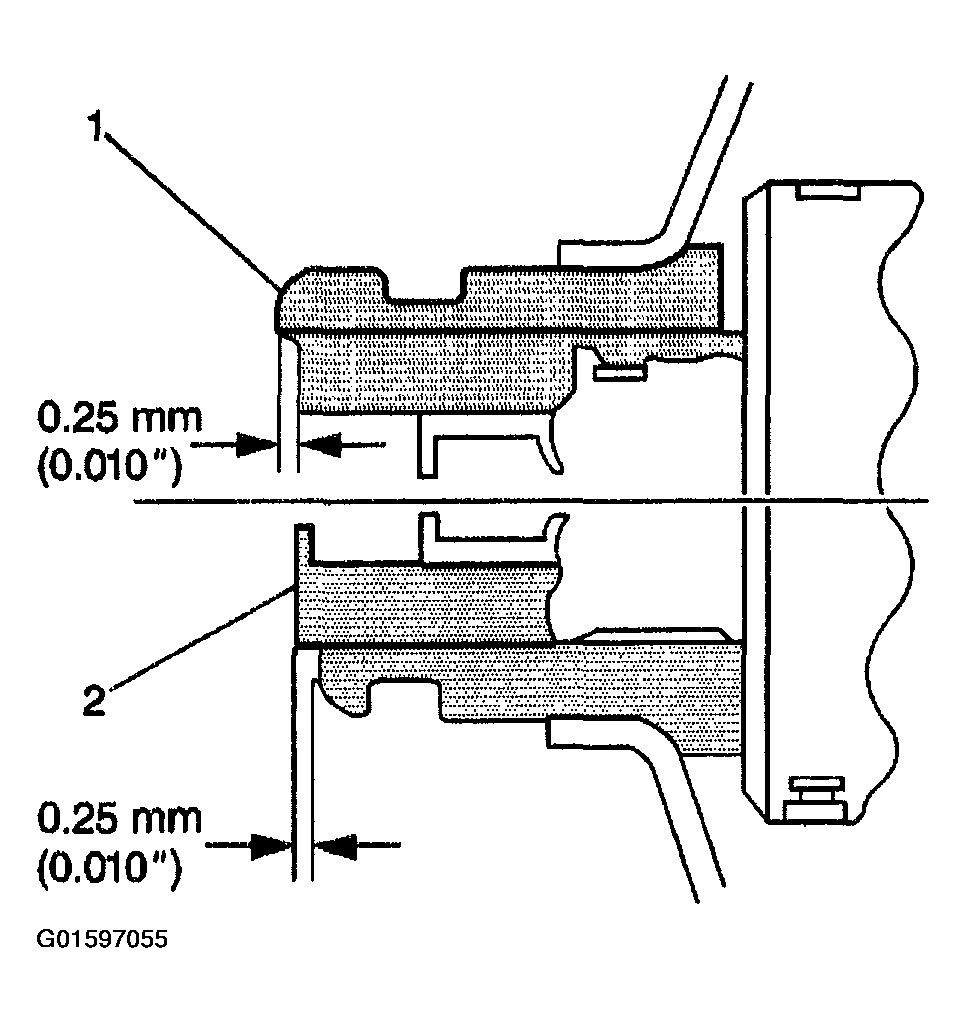

- Install the power steering pump pulley (1) flush against the end of the power steering pump shaft (2), with an allowable variance of 0.25 mm (0.010 in).
- Install the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (4.2L) or POWER STEERING PUMP REPLACEMENT (5.3L) .
