2003 Chevrolet Tracker 2D Utility, RWD, AutomaticFACTORY OEM SERVICE PROCEDURE

Installation Procedure

Install the shift lock solenoid (2) to the manual selector.

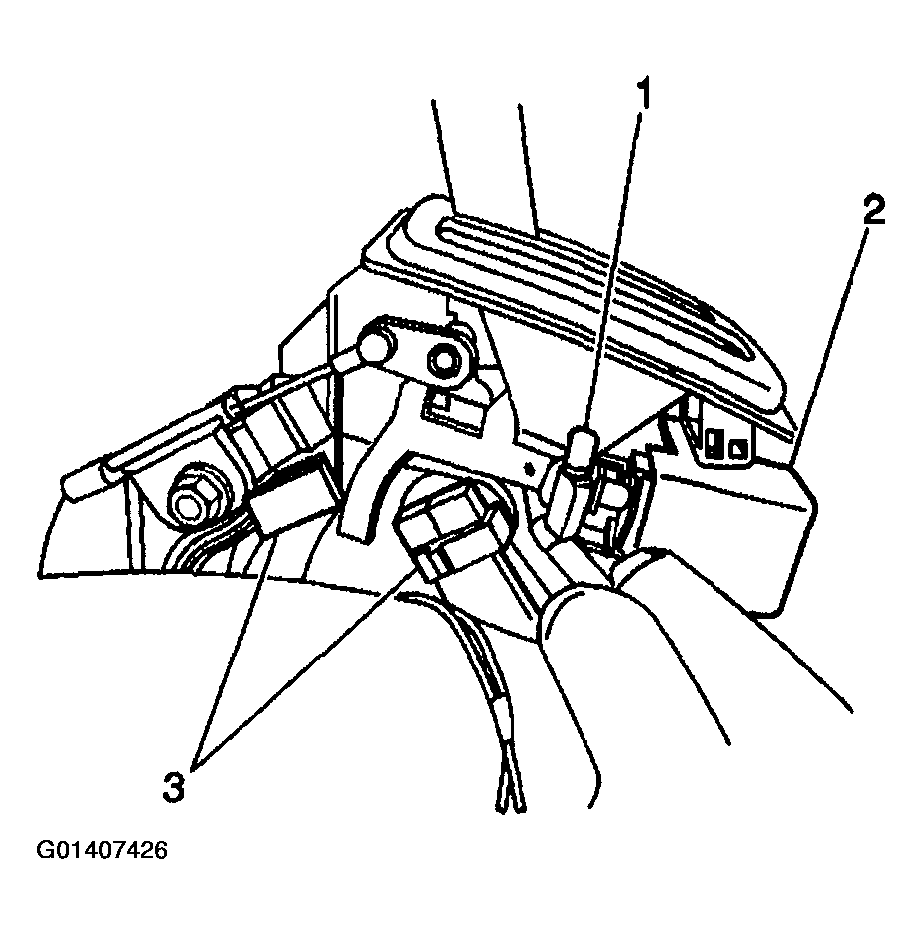

Fig 1: Installing Shift Lock Solenoid To Manual Selector
Courtesy of GENERAL MOTORS CORP.
Install the shift lock solenoid cover (2).

Fig 2: Shift Lock Solenoid Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Connect the shift indicator lamp electrical connector and the shift lock solenoid connector (3) under the carpet.
Install the shift indicator lamp (1).
Install the console box to the floor.

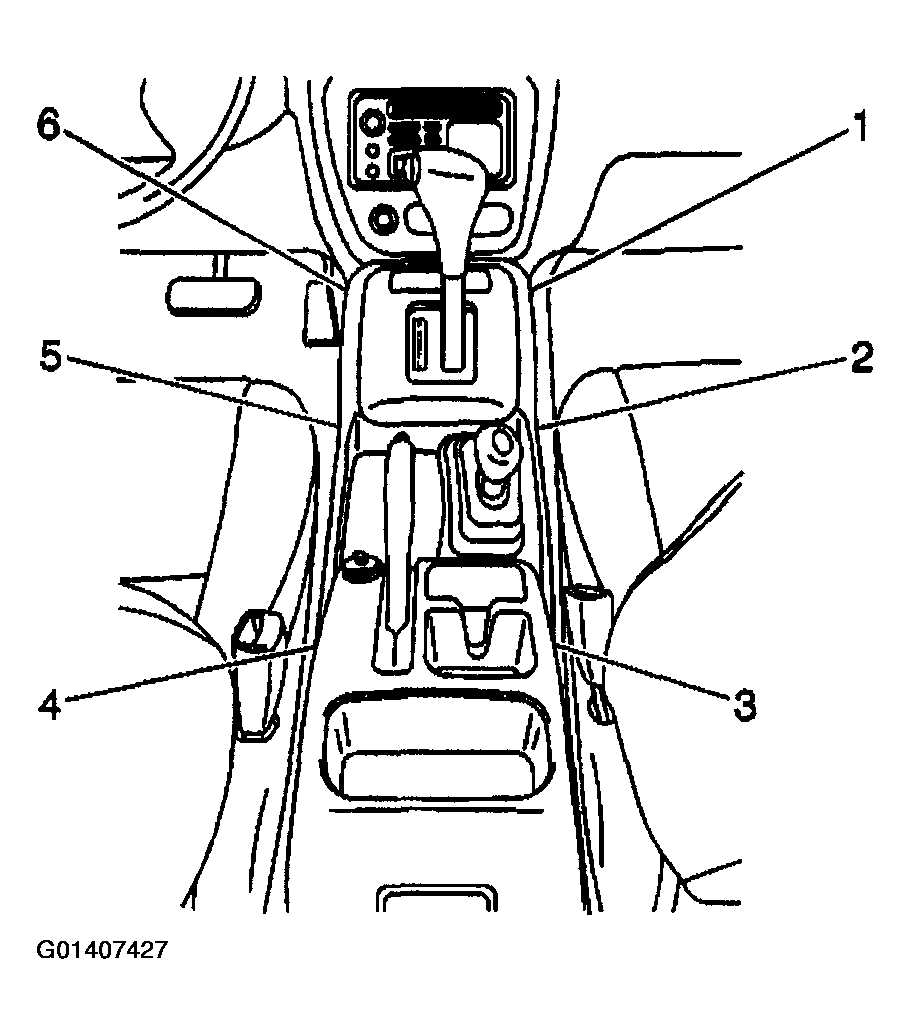

Fig 3: Console Box Screws & Retaining Clips
Courtesy of GENERAL MOTORS CORP.
Secure the console box with the 2 plastic retaining clips (2,5) and the 4 screws (1,6,3,4).
Connect the negative battery cable.
