2003 Chevrolet SSR V8-5.3L VIN PFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair
MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT
REMOVAL PROCEDURE
1. Open the hood.
2. Disconnect the electrical connection from mass air flow (MAF)/intake air temperature (IAT) sensor.
3. Remove air cleaner outlet duct.

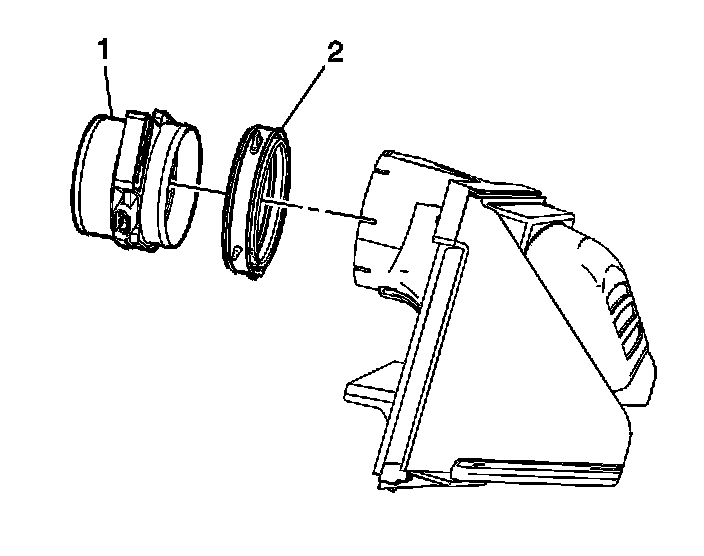

4. Loosen clamp (2) retaining MAF/IAT to upper air box.
5. Remove MAF/IAT (1) sensor from vehicle.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Install the MAF/IAT (1) sensor to upper air box.
Tighten
Tighten clamp (2) to 4 N.m (35 lb in).
2. Install the air cleaner outlet duct.
3. Connect the electrical connector to MAF/IAT sensor.
4. Close the hood.
REMOVAL PROCEDURE
1. Open the hood.
2. Disconnect the electrical connection from mass air flow (MAF)/intake air temperature (IAT) sensor.
3. Remove air cleaner outlet duct.

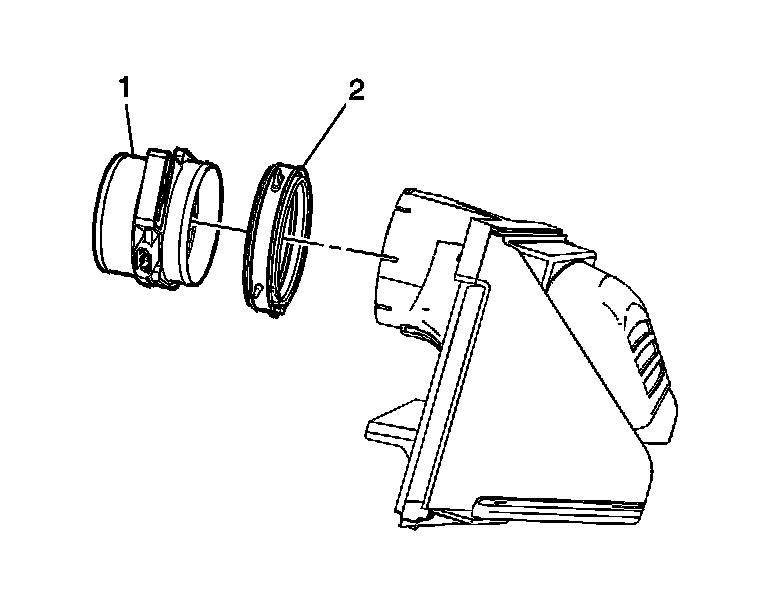

4. Loosen clamp (2) retaining MAF/IAT to upper air box.
5. Remove MAF/IAT (1) sensor from vehicle.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Install the MAF/IAT (1) sensor to upper air box.
Tighten
Tighten clamp (2) to 4 N.m (35 lb in).
2. Install the air cleaner outlet duct.
3. Connect the electrical connector to MAF/IAT sensor.
4. Close the hood.
