2003 Chevrolet SSR V8-5.3L VIN PFACTORY OEM SERVICE PROCEDURE
Control Module HVAC: Service and Repair
HVAC CONTROL MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Remove the storage compartment.
2. Remove the IP trim panel.
3. Remove the lower right knee bolster.

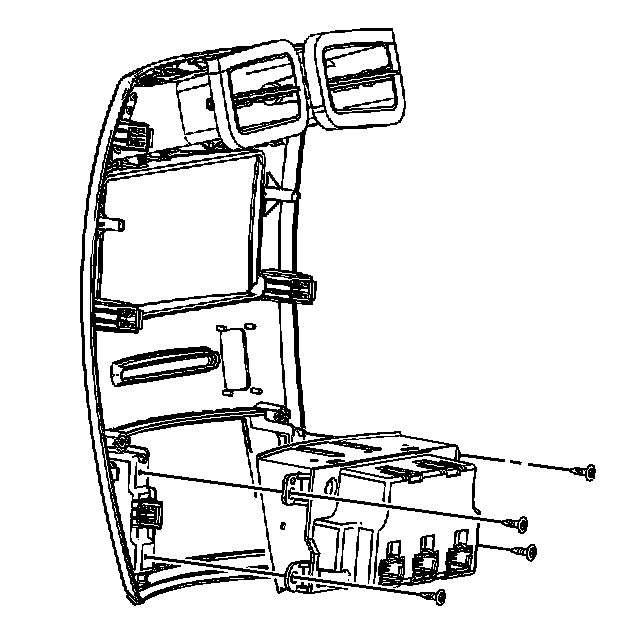

4. Remove the HVAC control module retaining screws.
5. Push the HVAC control module forward. Lower the module through the storage compartment.
6. Disconnect the electrical connector from HVAC control module.
INSTALLATION PROCEDURE
1. Connect the HVAC control module electrical connector.
2. Install the HVAC control module.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the HVAC control module retaining screws.
Tighten
Tighten the screws to 1.6 N.m (14 lb in).
4. Install the right knee bolster.
IMPORTANT: Do not adjust any controls on the HVAC control module while the HVAC control module is self-calibrating. If interrupted, improper HVAC performance will result.
5. Install the IP trim panel.
6. Install the storage compartment.
REMOVAL PROCEDURE
1. Remove the storage compartment.
2. Remove the IP trim panel.
3. Remove the lower right knee bolster.
4. Remove the HVAC control module retaining screws.
5. Push the HVAC control module forward. Lower the module through the storage compartment.
6. Disconnect the electrical connector from HVAC control module.
INSTALLATION PROCEDURE
1. Connect the HVAC control module electrical connector.
2. Install the HVAC control module.
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the HVAC control module retaining screws.
Tighten
Tighten the screws to 1.6 N.m (14 lb in).
4. Install the right knee bolster.
IMPORTANT: Do not adjust any controls on the HVAC control module while the HVAC control module is self-calibrating. If interrupted, improper HVAC performance will result.
5. Install the IP trim panel.
6. Install the storage compartment.
