2003 Chevrolet SSR V8-5.3L VIN PFACTORY OEM SERVICE PROCEDURE
Lower Front of Engine
Disassembled Views

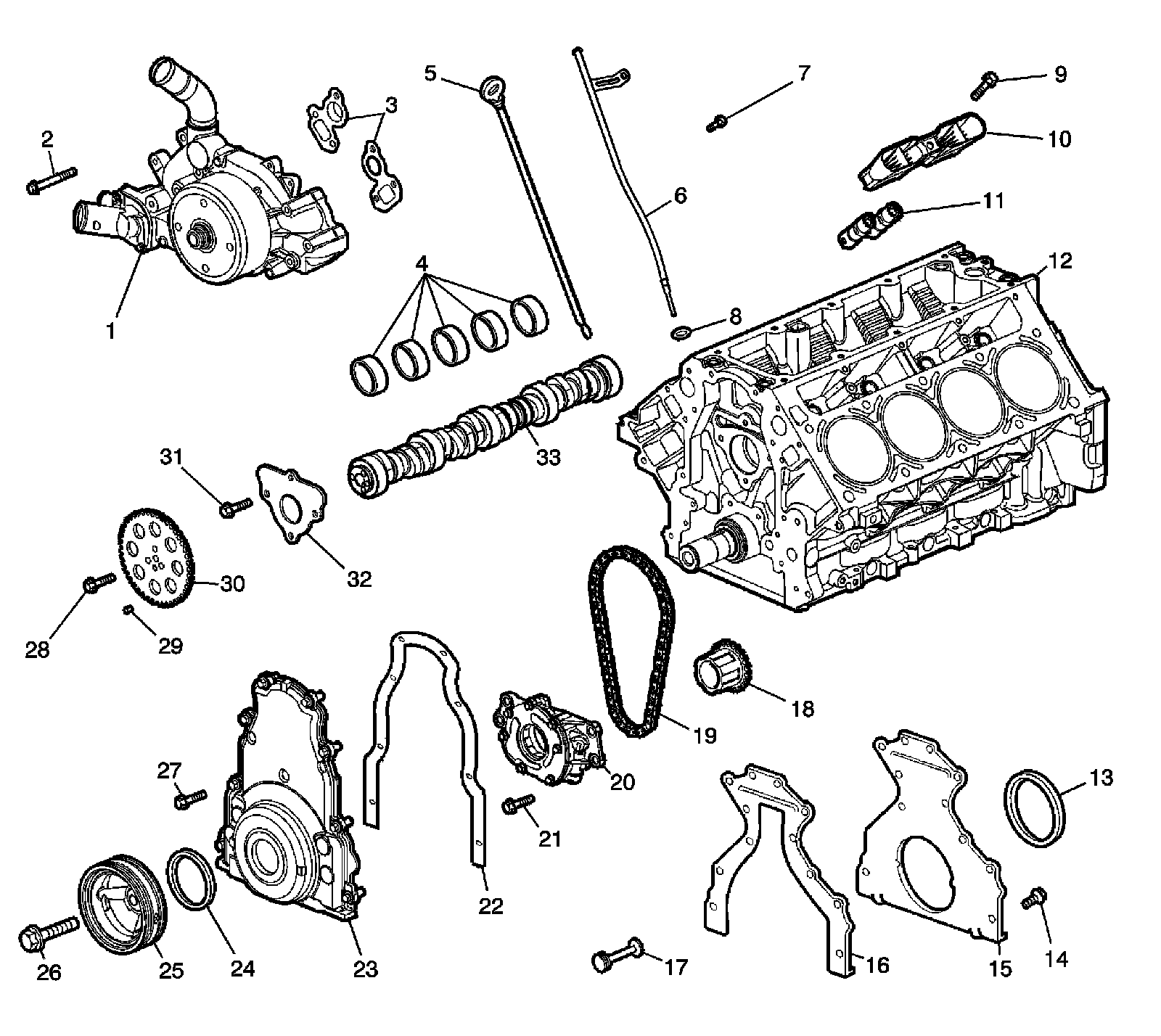

Lower Front of Engine:
1 - Water Pump
2 - Water Pump Bolt
3 - Water Pump Gaskets
4 - Camshaft Bearings
5 - Oil Level Indicator
6 - Oil Level Indicator Tube
7 - Oil Level Indicator Tube Bolt
8 - Oil Level Indicator Tube O-Ring Seal
9 - Valve Lifter Guide Bolt
10 - Valve Lifter Guide
11 - Valve Lifter
12 - Engine Block
13 - Crankshaft Rear Oil Seal
14 - Engine Rear Cover Bolt
15 - Engine Rear Cover
16 - Engine Rear Cover Gasket
17 - Engine Block Rear Oil Gallery Plug
18 - Crankshaft Sprocket
19 - Camshaft Timing Chain
20 - Oil Pump Assembly
21 - Oil Pump Bolt
22 - Engine Front Cover Gasket
23 - Engine Front Cover
24 - Crankshaft Front Oil Seal
25 - Crankshaft Balancer
26 - Crankshaft Balancer Bolt
27 - Engine Front Cover Bolt
28 - Camshaft Sprocket Bolt
29 - Camshaft Sprocket Locating Pin
30 - Camshaft Sprocket
31 - Camshaft Retainer Bolt
32 - Camshaft Retainer
33 - Camshaft
