2003 Chevrolet SSR V8-5.3L VIN PFACTORY OEM SERVICE PROCEDURE
Lower Engine Assembly
Disassembled Views

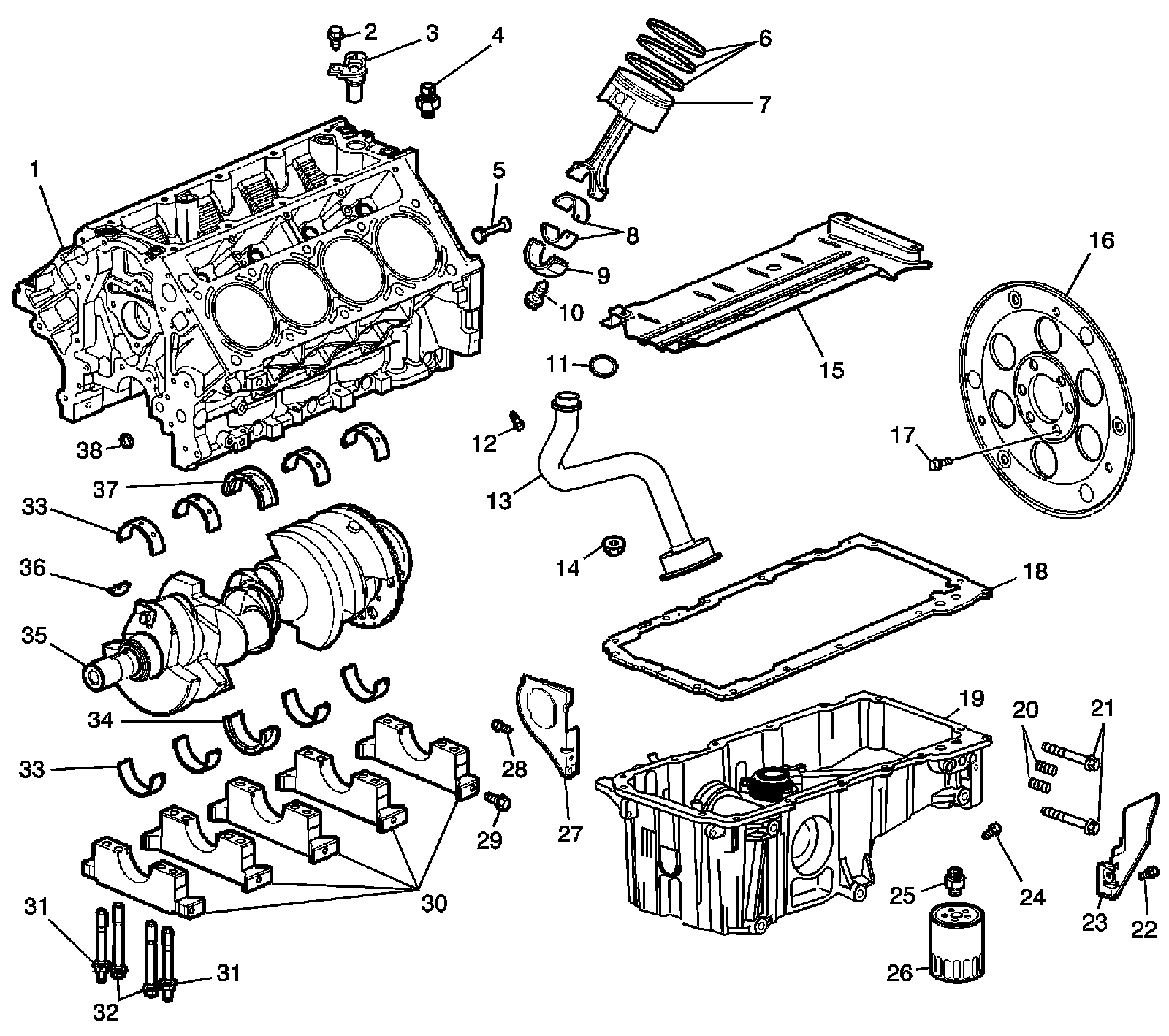

Lower Engine Assembly:
1 - Engine Block
2 - Camshaft Position Sensor Bolt
3 - Camshaft Position Sensor
4 - Oil Pressure Sensor
5 - Engine Block Rear Oil Gallery Plug
6 - Piston Rings
7 - Piston and Connecting Rod Assembly
8 - Connecting Rod Bearings
9 - Connecting Rod Cap
10 - Connecting Rod Bolt
11 - Oil Pump Screen O-Ring Seal
12 - Oil Pump Screen Bolt
13 - Oil Pump Screen
14 - Oil Pump Screen Nut
15 - Crankshaft Oil Deflector
16 - Flywheel - Automatic Transmission
17 - Flywheel Bolt
18 - Oil Pan Gasket
19 - Oil Pan
20 - Oil Pan Oil Gallery Plugs
21 - Oil Transfer Tube Bolts
22 - Oil Pan Closeout Cover Bolt - Left Side
23 - Oil Pan Closeout Cover - Left Side
24 - Oil Pan Drain Plug
25 - Oil Filter Adapter
26 - Oil Filter
27 - Oil Pan Closeout Cover - Right Side
28 - Oil Pan Closeout Cover Bolt - Right Side
29 - Crankshaft Bearing Cap Side Bolt
30 - Crankshaft Bearing Caps
31 - Crankshaft Bearing Cap Bolt/Stud
31 - Crankshaft Bearing Cap Bolt/Stud
32 - Crankshaft Bearing Cap Bolt
33 - Crankshaft Bearing
33 - Crankshaft Bearing
34 - Crankshaft Thrust Bearing - Lower
35 - Crankshaft
36 - Crankshaft Sprocket Key
37 - Crankshaft Thrust Bearing - Upper
38 - Engine Block Front Oil Gallery Plug
