2003 Chevrolet SSR V8-5.3L VIN PFACTORY OEM SERVICE PROCEDURE

Intake Manifold/Upper Engine



Disassembled Views

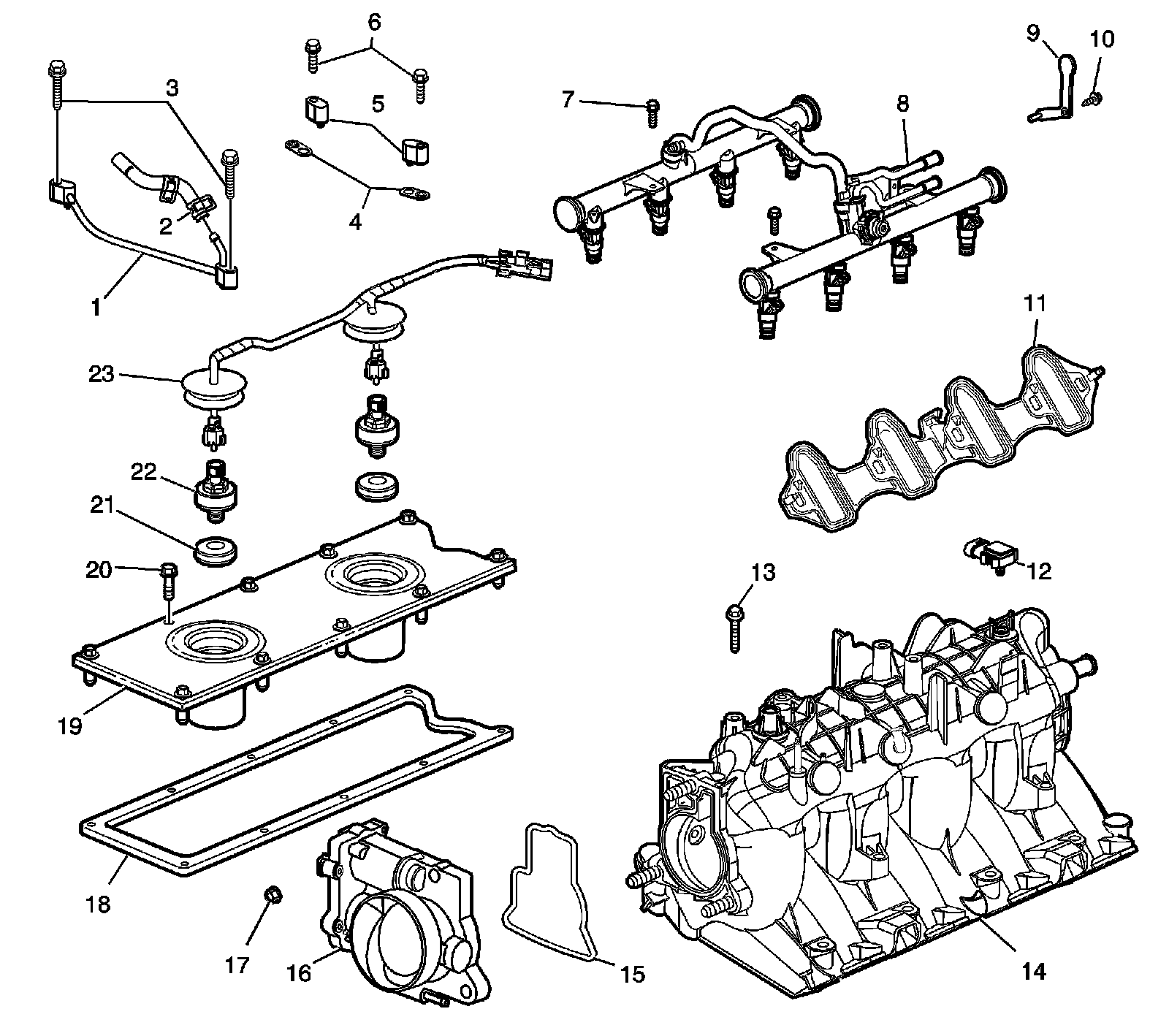

Intake Manifold/Upper Engine:

Factory service manual diagram




1 - Engine Coolant Air Bleed Pipe
2 - Engine Coolant Air Bleed Hose
3 - Engine Coolant Air Bleed Pipe Bolt
4 - Engine Coolant Air Bleed Pipe/Cover Gasket
5 - Engine Coolant Air Bleed Cover
6 - Engine Coolant Air Bleed Cover Bolt
7 - Fuel Rail Bolt
8 - Fuel Rail - with Injectors
9 - Fuel Rail Stop Bracket
10 - Fuel Rail Stop Bracket Bolt
11 - Intake Manifold Gasket
12 - Manifold Absolute Pressure (MAP) Sensor
13 - Intake Manifold Bolt
14 - Intake Manifold
15 - Throttle Body Gasket
16 - Throttle Body
17 - Throttle Body Nut
18 - Valley Cover Gasket
19 - Valley Cover
20 - Valley Cover Bolt
21 - Knock Sensor Oil Seal
22 - Knock Sensor
23 - Knock Sensor Wire Harness
