2003 Chevrolet SSR BaseFACTORY OEM SERVICE PROCEDURE

Automatic Transmission Shift Lock Control Connector End Views

Automatic Transmission Shift Lock Actuator Terminal Identification

GM40422Courtesy of GENERAL MOTORS CORP.

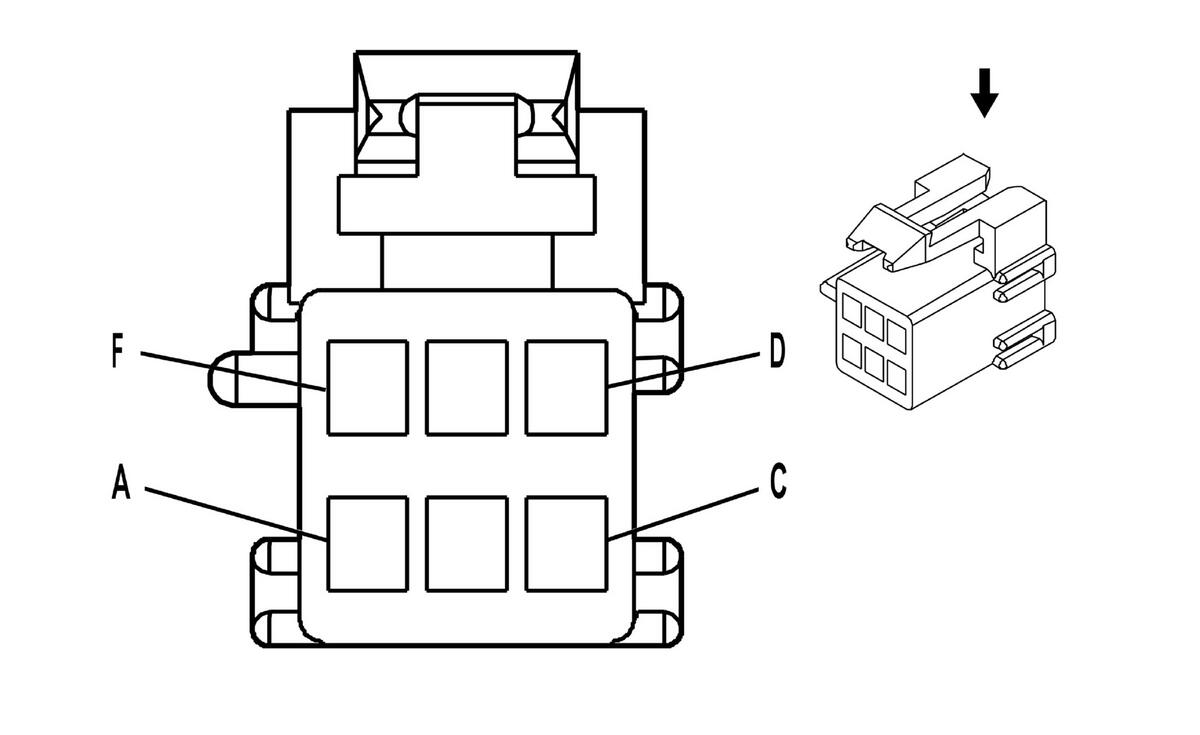

Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
A BK 2250 Ground
B L-GN/BK 584 Brake Transmission Shift Interlock Switch Supply Voltage
C YE 1996 Remote Shift Selector Signal
D - - Not Used
E D-GN/WH 1135 Brake Transmission Shift Interlock Solenoid Supply Voltage
F PK 1020 Off/Run/Crank Voltage
Park Neutral Position Switch (PNP) C2 Terminal Identification - Early Production

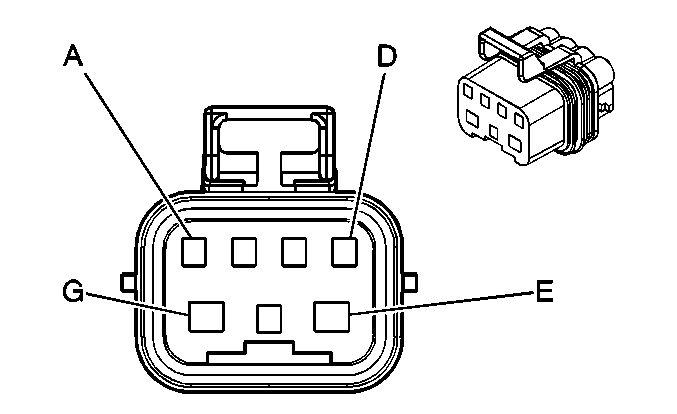

GM535900Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129840
  • 7-Way F Metri-Pack 150, 280 Series (GY)
Pin Wire Color Circuit No. Function
A - - Not Used
B L-GN 275 Park Neutral Position Park Signal
C PK 339 Ignition 1 Voltage
D BK 450 Ground
E PK 639 Ignition 1 Voltage
F - - Not Used
G YE 1737 Neutral Safety Switch Park/Neutral Signal
Park Neutral Position Switch (PNP) Terminal Identification - Late Production

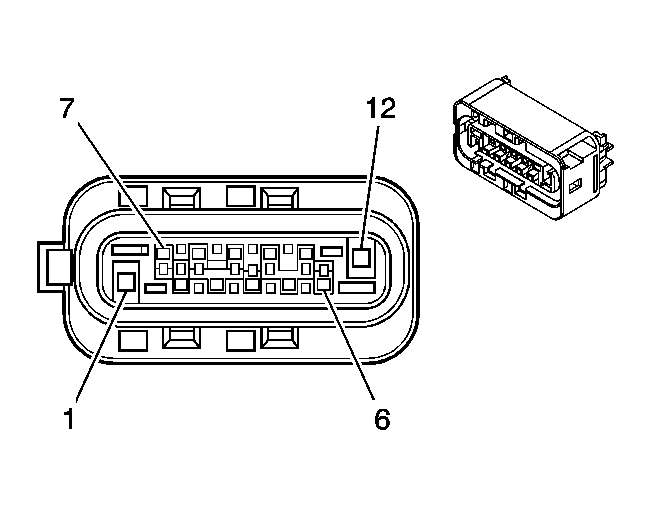

GM901039Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15416722
  • 11-Way F GT Mixed with Latch (GY)
Pin Wire Color Circuit No. Function
1 YE 1737 Neutral Safety Switch Park/Neutral Signal
3 - - Not Used
4 YE 722 Transmission Range Switch Signal B
5 BK/WH 771 Transmission Range Switch Signal A
6 GY 773 Transmission Range Switch Signal C
7 BK 450 Ground
8 WH 776 Transmission Range Switch Signal P
9 L-GN 275 Park Neutral Position Park Signal
10 - - Not Used
11 PK 339 Ignition 1 Voltage
12 PK 639 Ignition 1 Voltage
