2003 Chevrolet SSR BaseFACTORY OEM SERVICE PROCEDURE

Installation Procedure

NOTE: Follow the tightening sequence and procedure for the seat belt guide loop fasteners. If these steps are not followed, permanent vehicle body damage will occur.

Position the shoulder belt guide bracket to the vehicle body.

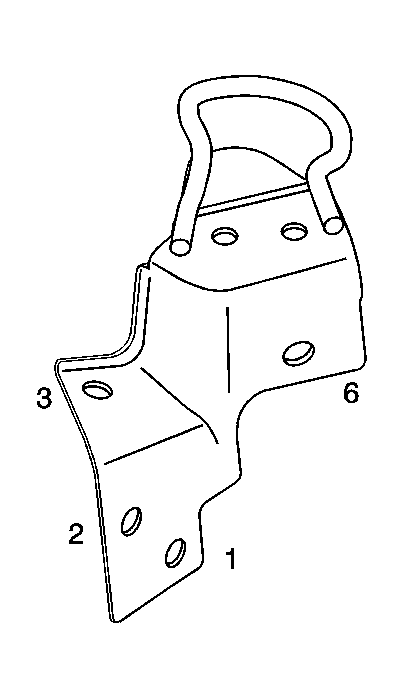

Fig 1: Identifying Fastener Locations

GM1363419

Courtesy of GENERAL MOTORS CORP.

Finger tighten the 4 fasteners (1, 2, 3, 6).

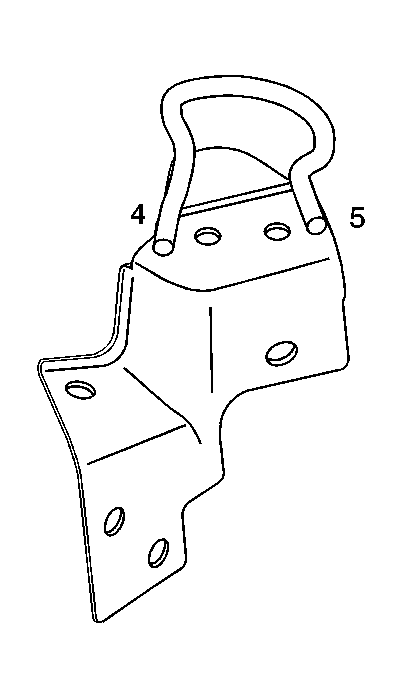

Fig 2: View of Trim Attachment Bracket

GM1363420

Courtesy of GENERAL MOTORS CORP.

Position the trim attachment bracket and finger tighten bolts (4, 5).

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
