2003 Chevrolet SSR BaseFACTORY OEM SERVICE PROCEDURE

Removal Procedure

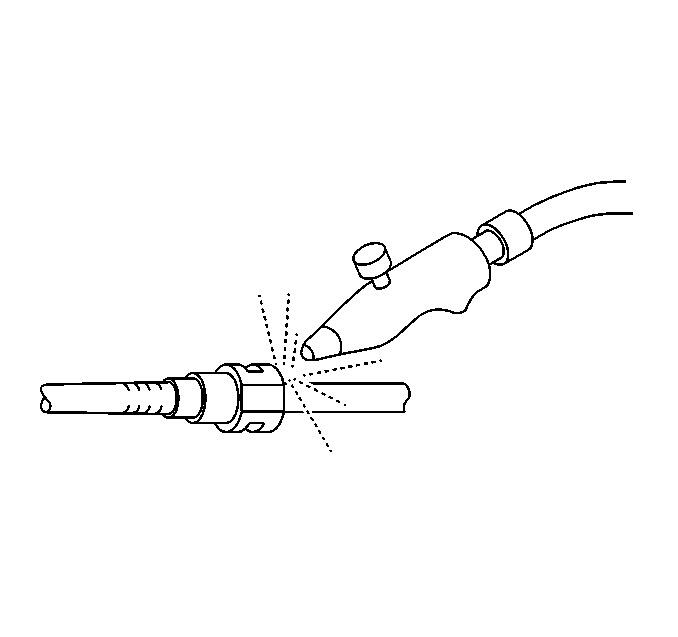

Fig 1: Blowing Dirt Out Of Fitting (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Relieve the fuel system pressure before servicing any fuel system connection. Refer to Fuel Pressure Relief Procedure .

CAUTION: Wear safety glasses when using compressed air in order to prevent eye injury.

Using compressed air, blow any dirt out of the quick-connect fitting.

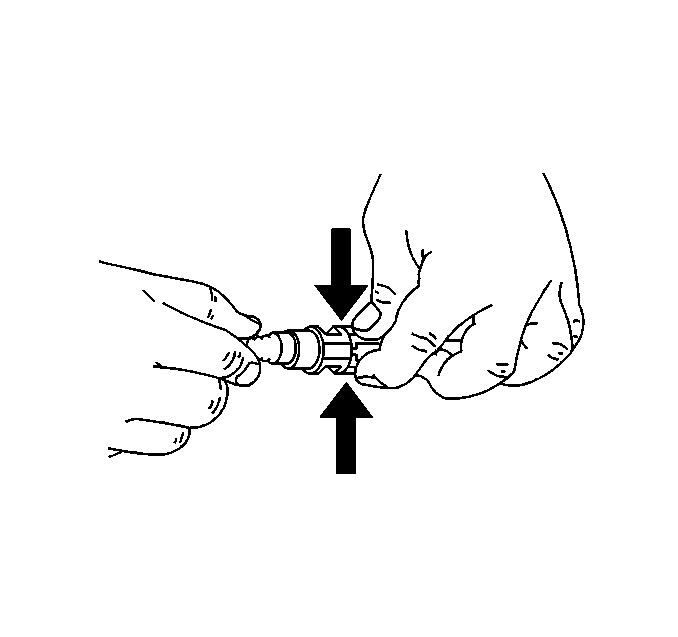

Fig 2: Squeezing Quick Connect Fitting Release Tabs (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Squeeze the plastic retainer release tabs.

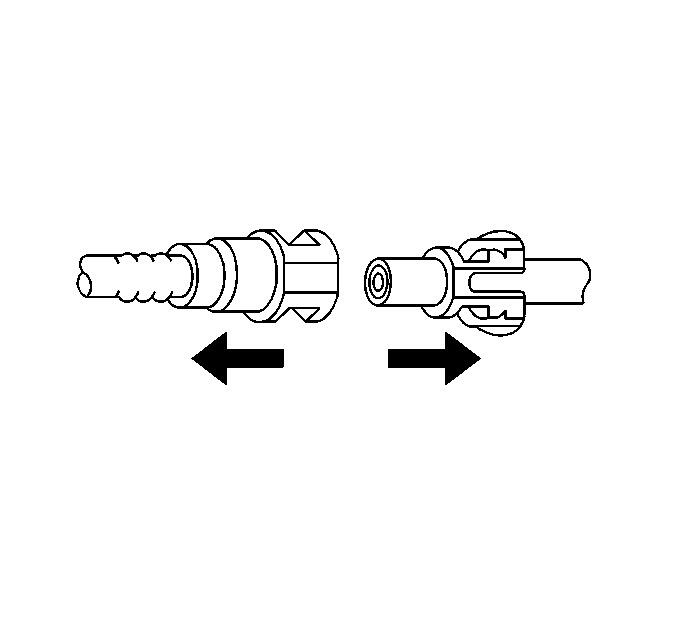

Fig 3: Pulling Connection Apart (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Pull the connection apart.
