2003 Chevrolet SSR BaseFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Loosen the fasteners from the intake manifold sight shield.
- Remove the sight shield.
- Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

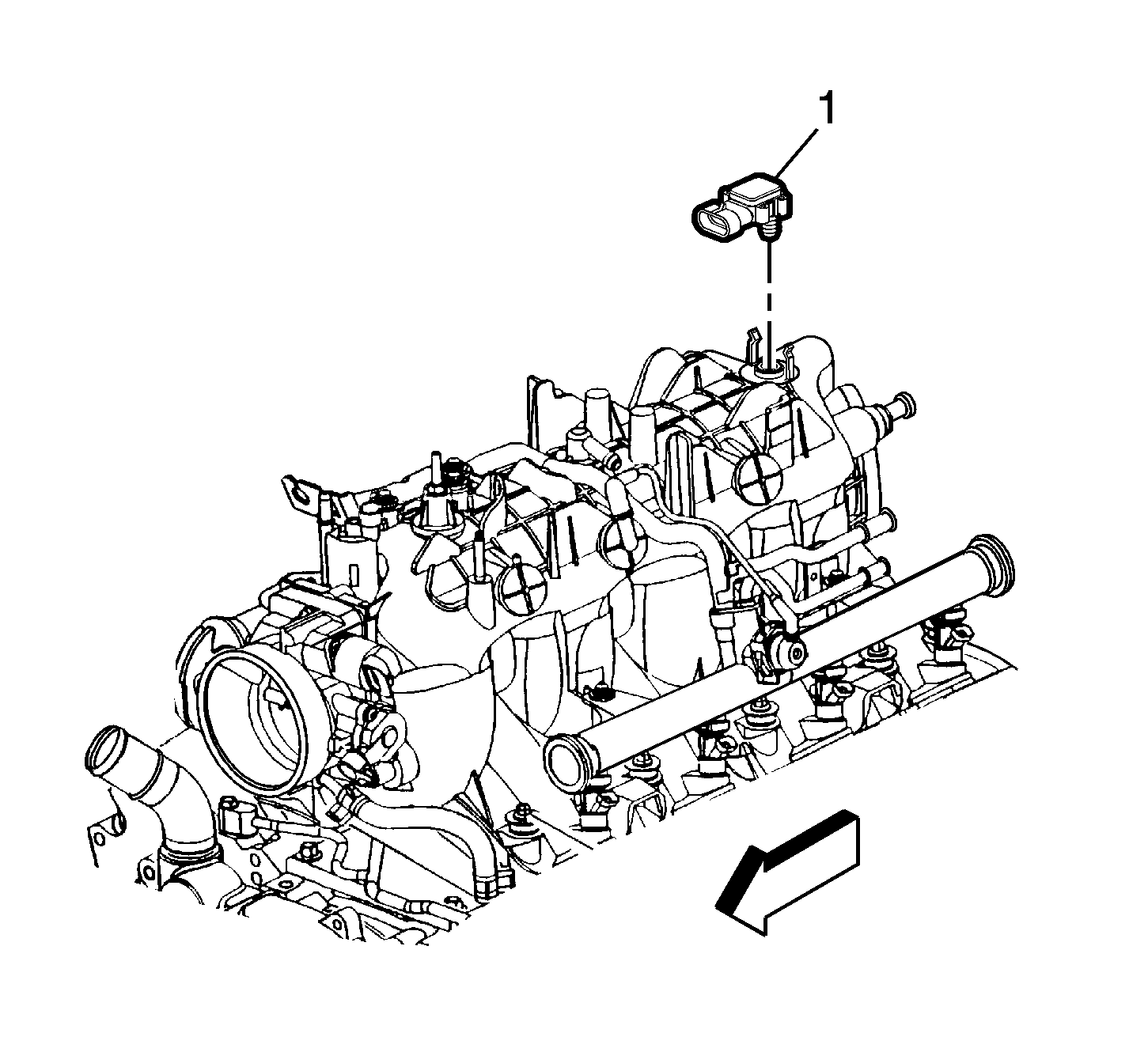

- Remove the MAP sensor (1) from the intake manifold.
