Installation Procedure

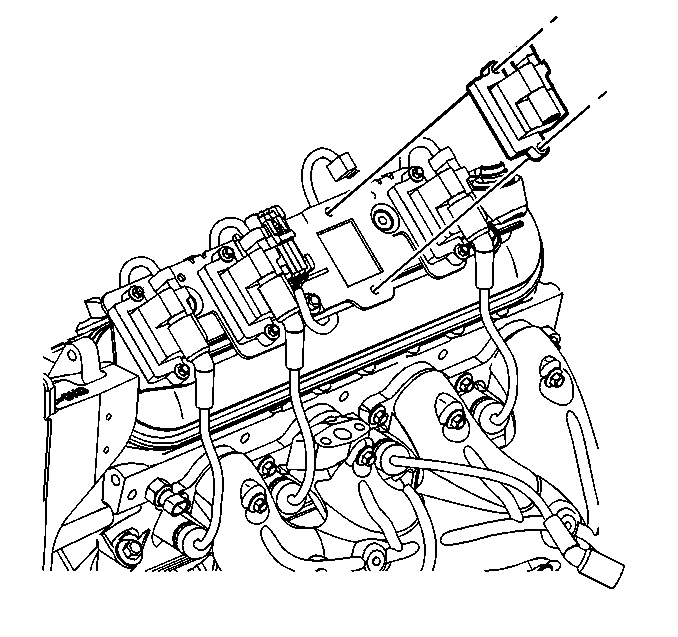

- Install the ignition coil to the bracket.

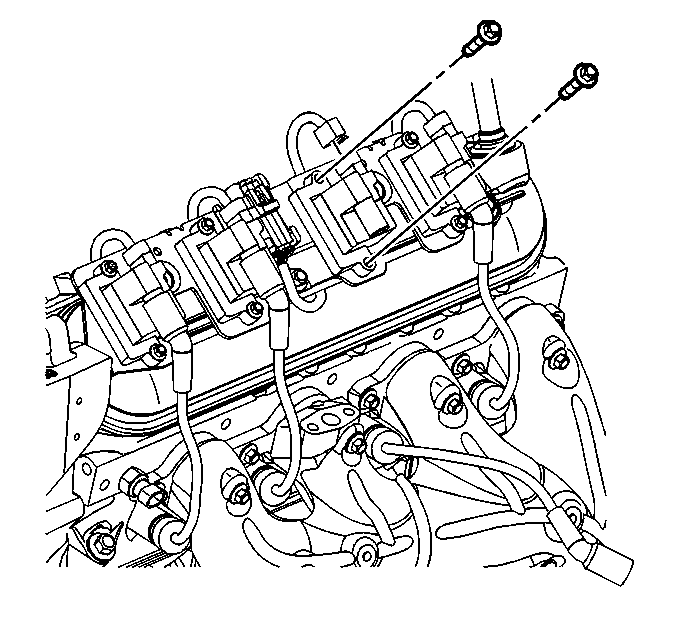

- Install the ignition coil mounting bolts.
Tighten: Tighten the ignition coil mounting bolts to 8 N.m (71 lb in).

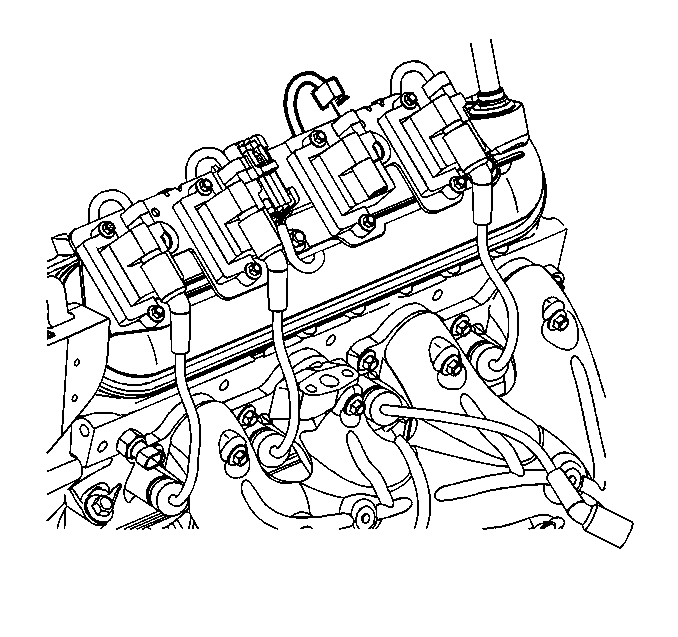

- Connect the ignition coil harness connector.

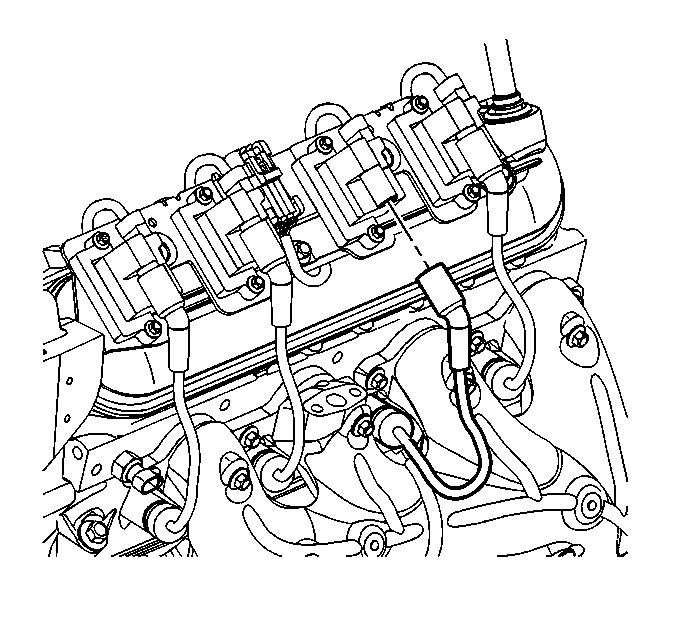

- Connect the spark plug wires at the ignition coils.
