2003 Chevrolet SSR BaseFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Install the fuel lines.

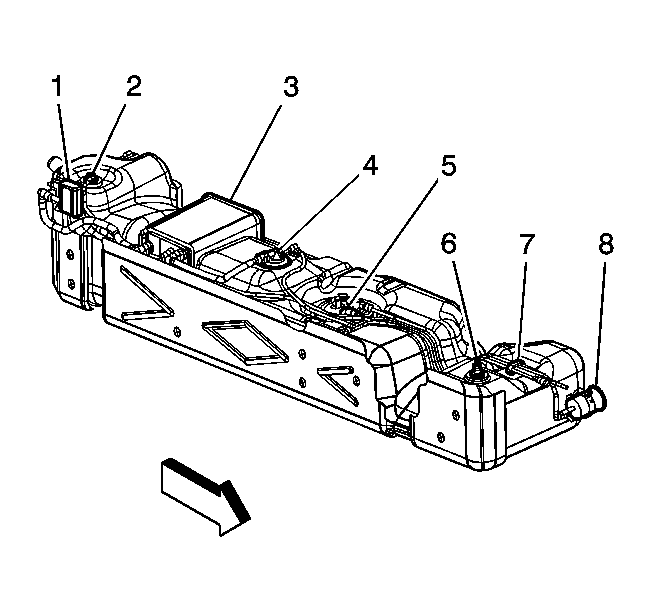

- Engage the fuel lines to the clip (7) at the front of the fuel tank.
- Remove the caps from the fuel sender assembly pipes.
- Connect the fuel feed line to the fuel filter. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
- Connect the fuel return line to the sender assembly. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
- Install the fuel tank. Refer to Fuel Tank Replacement .
