2003 Chevrolet SSR BaseFACTORY OEM SERVICE PROCEDURE

Removal Procedure

    NOTE: Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.
  1. Turn OFF the ignition.

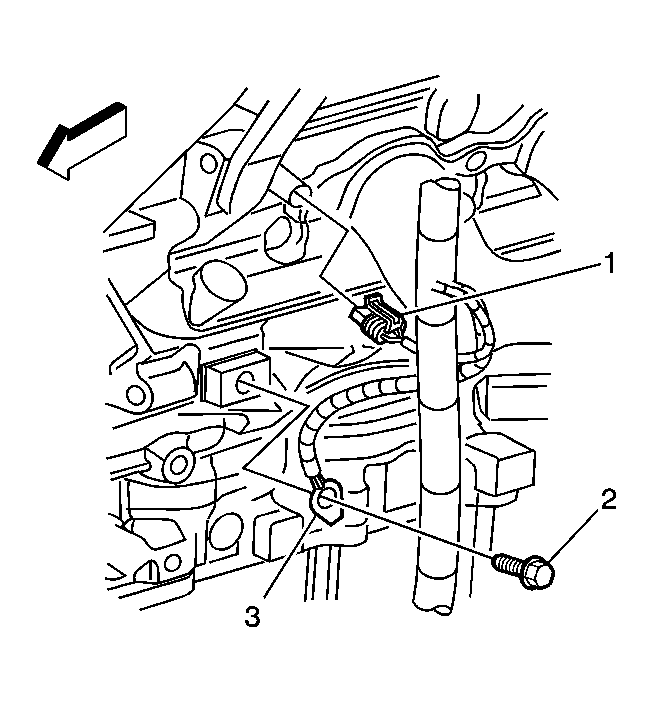

    2. Fig 1: View Of ECT Sensor Electrical Connector And Ground
    GM898343Courtesy of GENERAL MOTORS CORP.
  2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Drain the cooling system below the level of the engine coolant temperature (ECT) sensor. Refer to Draining and Filling Cooling System in Engine Cooling.
  4. Lower the vehicle.
  5. Disconnect the ECT sensor electrical connector (1).

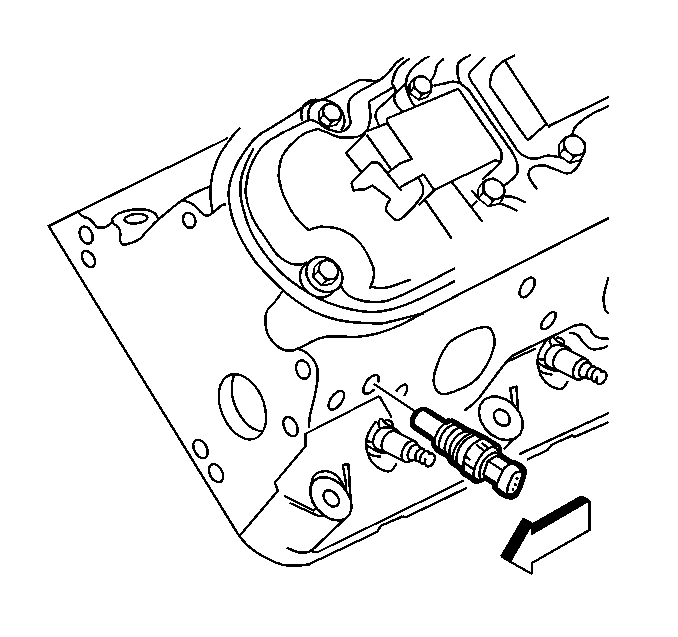

    6. Fig 2: Locating ECT Sensor
    GM50974Courtesy of GENERAL MOTORS CORP.
  6. Remove the ECT sensor.
