2003 Chevrolet SSR BaseFACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Remove the console shift lever bezel from the console. Refer to Console Shift Lever Bezel Replacement in Instrument Panel, Gages and Console.

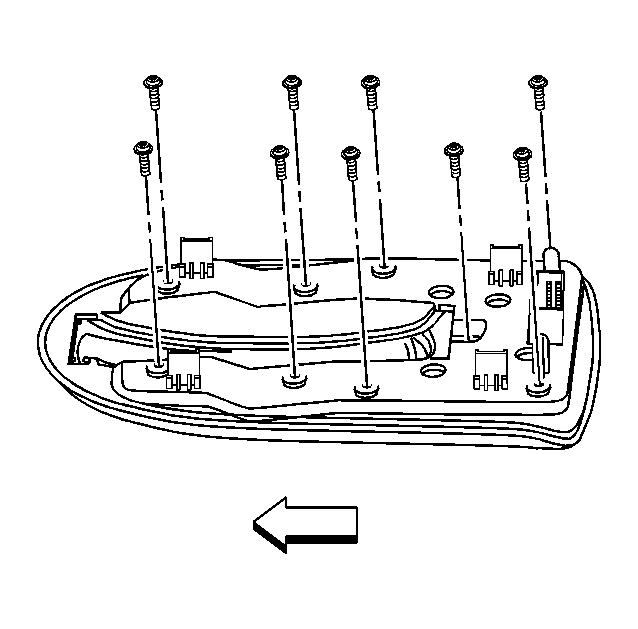

    2. Fig 1: Identifying Console Shift Bezel Fasteners
    GM1166670Courtesy of GENERAL MOTORS CORP.
  2. Remove the fasteners from the console shift bezel.

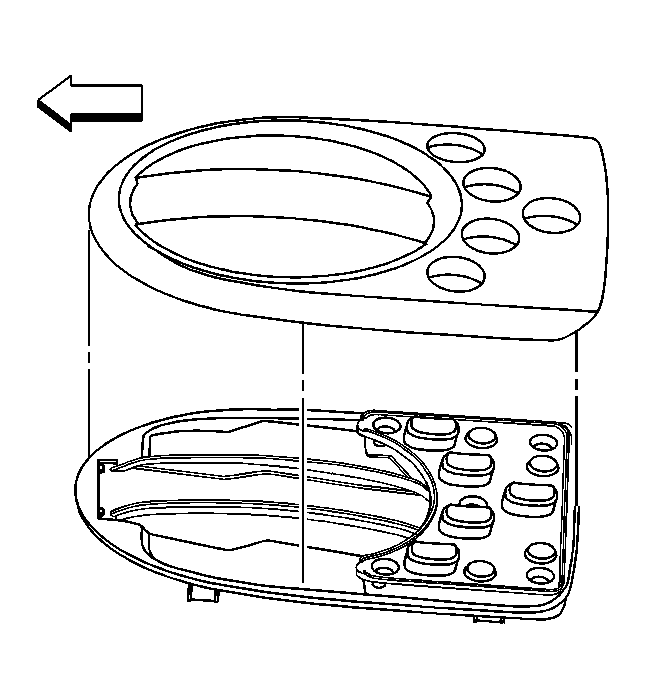

    3. Fig 2: View of Console Shift Bezel
    GM1166669Courtesy of GENERAL MOTORS CORP.
  3. Remove the console shift bezel.

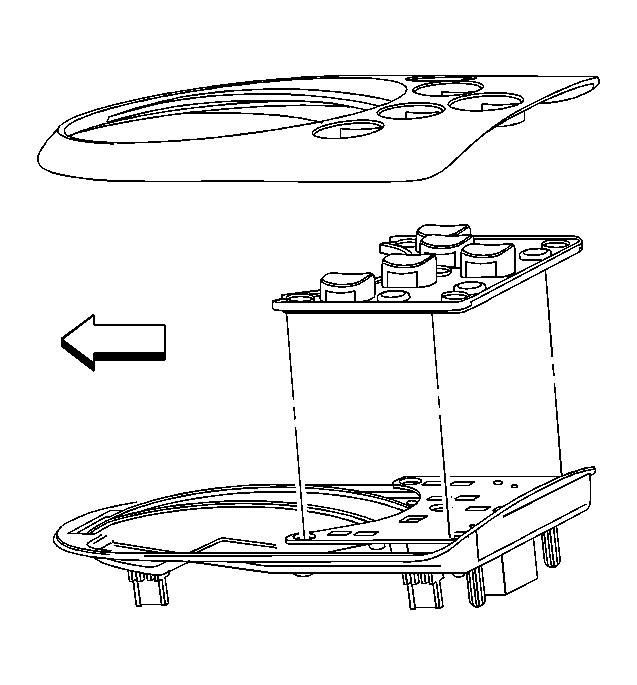

    4. Fig 3: View of Shift Bezel Switch Membrane
    GM1166850Courtesy of GENERAL MOTORS CORP.
  4. Remove the shift bezel switch membrane.
    5. Fig 4: Identifying Shift Bezel Switch Assembly Screws
    GM1166800Courtesy of GENERAL MOTORS CORP.
  5. Remove the shift bezel switch assembly screws.
    6. Fig 5: View of Shift Bezel Switch Assembly
    GM1166673Courtesy of GENERAL MOTORS CORP.
  6. Remove the shift bezel switch assembly.
