2003 Chevrolet SSR BaseFACTORY OEM SERVICE PROCEDURE

Removal Procedure

IMPORTANT: After installation, calibrate the new electronic brake control module (EBCM) to the tire size that is appropriate to the vehicle.

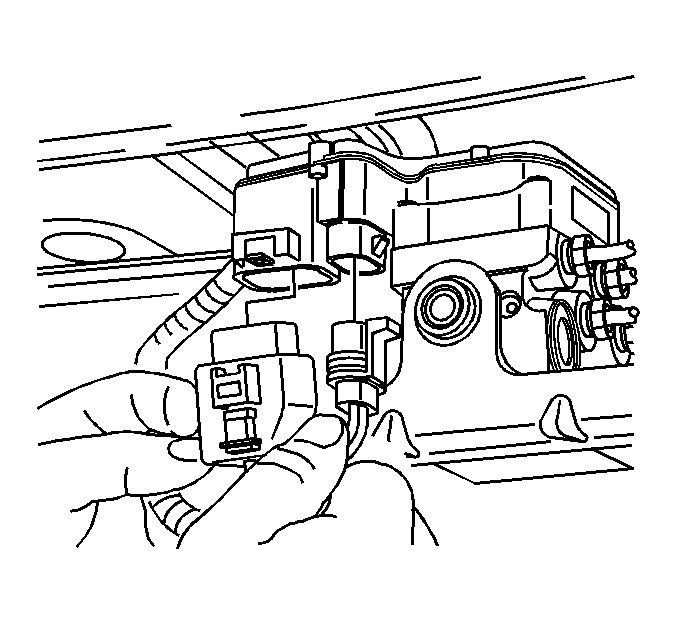

Fig 1: EBCM Side Connectors

Courtesy of GENERAL MOTORS CORP.

Raise the vehicle. Lifting and Jacking the Vehicle in General Information.
Remove 2 electrical connectors on the side of the EBCM.

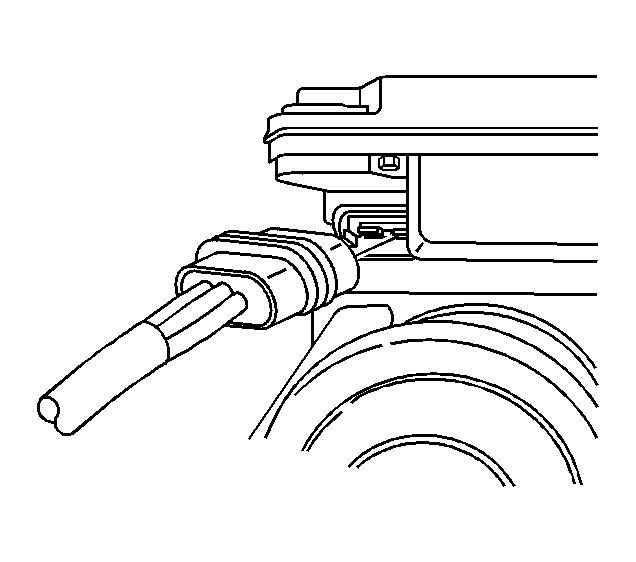

Fig 2: EBCM Back Connector

Courtesy of GENERAL MOTORS CORP.

Using a long flat-bladed screwdriver, release the lock tab on the electrical connector located on the back of the EBCM.

Fig 3: EBCM Mounting Screws

Courtesy of GENERAL MOTORS CORP.
