2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Shift Lock Control Component Views

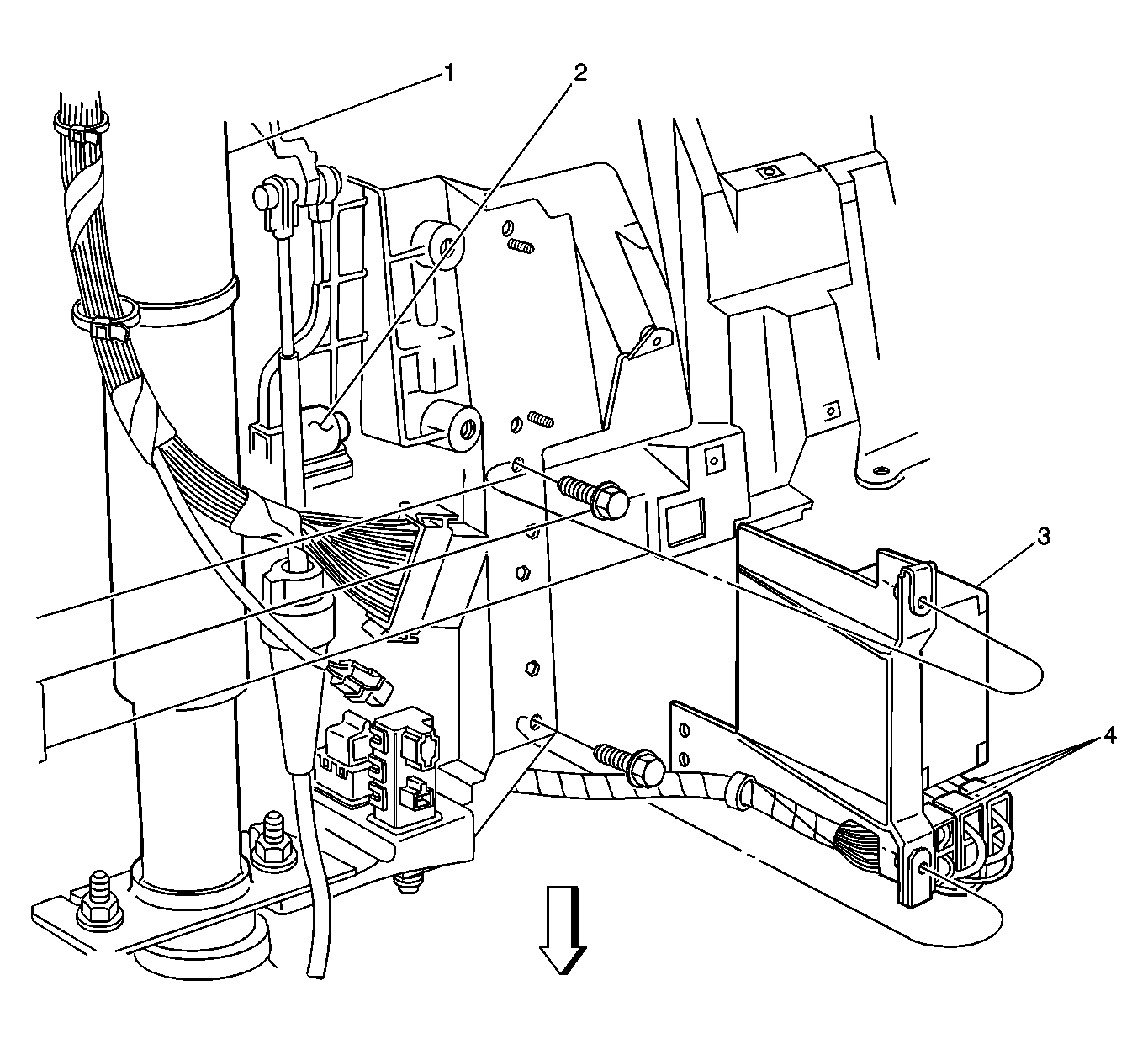

| Callout | Component Name |
|---|---|
| 1 | Steering Column |
| 2 | A/T Shift Lock Control Solenoid (w/o D55) |
| 3 | Fuse Block-SEO (9C1/9C3) |
| 4 | Circuit Breaker #1, #2, #3 (9C1/9C3) |

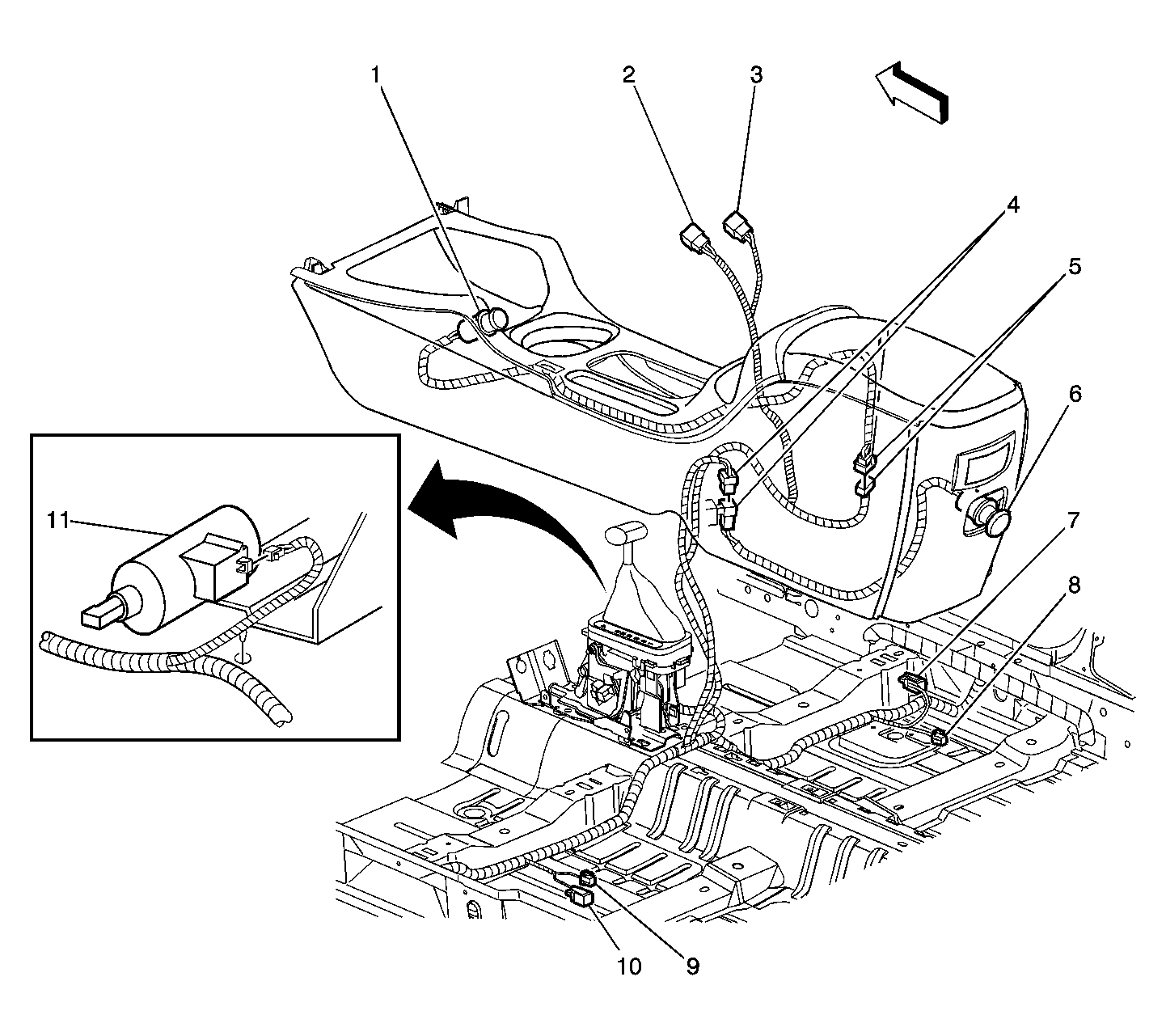

| Callout | Component Name |
|---|---|
| 1 | Cigar Lighter |
| 2 | Heated Seat Switch-Driver (Monte Carlo) Connector |
| 3 | Heated Seat Switch-Front Passenger (Monte Carlo) Connector |
| 4 | C317 |
| 5 | C315 |
| 6 | Auxiliary Power Outlet |
| 7 | Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector |
| 8 | C312 |
| 9 | Inflatable Restraint Side Impact Module-LF Connector |
| 10 | C311 |
| 11 | A/T Shift Lock Control Solenoid |
