2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Wiper/Washer System Connector End Views

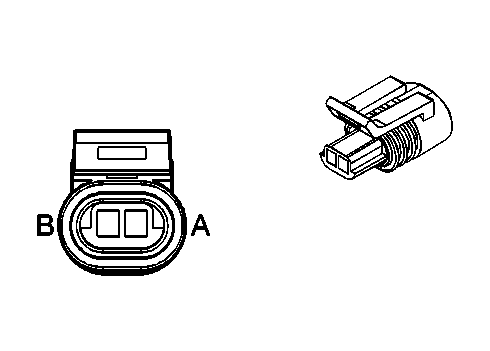

Windshield Washer Fluid Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12162195 2-Way F Metri-Pack 150.2 Series Sealed P2S (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	150	Ground
B	BLK/WHT	99	Windshield Washer Fluid Level Signal

Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series, Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	BLK	150	Ground

Windshield Wiper System Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12129126 5-Way F Metri-Pack Mixed 150, 280 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1150	Ground
B	YEL	243	Accessory Voltage
C	PPL	92	Windshield Wiper Motor High Speed
D	DK GRN	113	Windshield Wiper Switch Signal 1
E	GRY	112	Windshield Wiper Switch Signal 2
