2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Wiper/Washer System Component Views

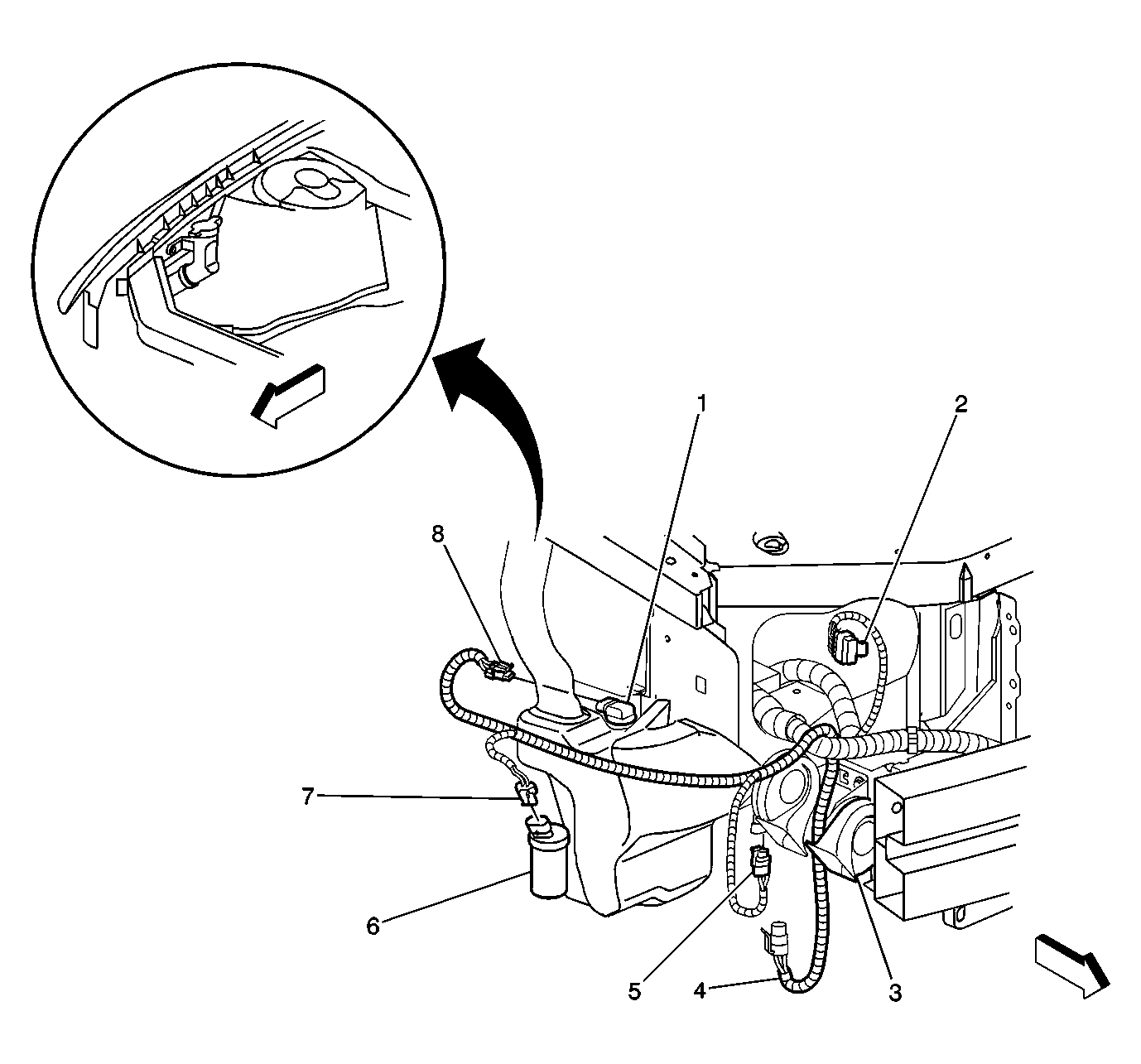

Fig 1: Right Front Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Level Switch
2	Headlamp-Right Connector
3	Horn Assembly
4	Fog Lamp-RF Connector
5	Horn Assembly Connector
6	Windshield Washer Fluid Pump
7	Windshield Washer Fluid Pump Connector
8	Windshield Washer Fluid Level Switch Connector

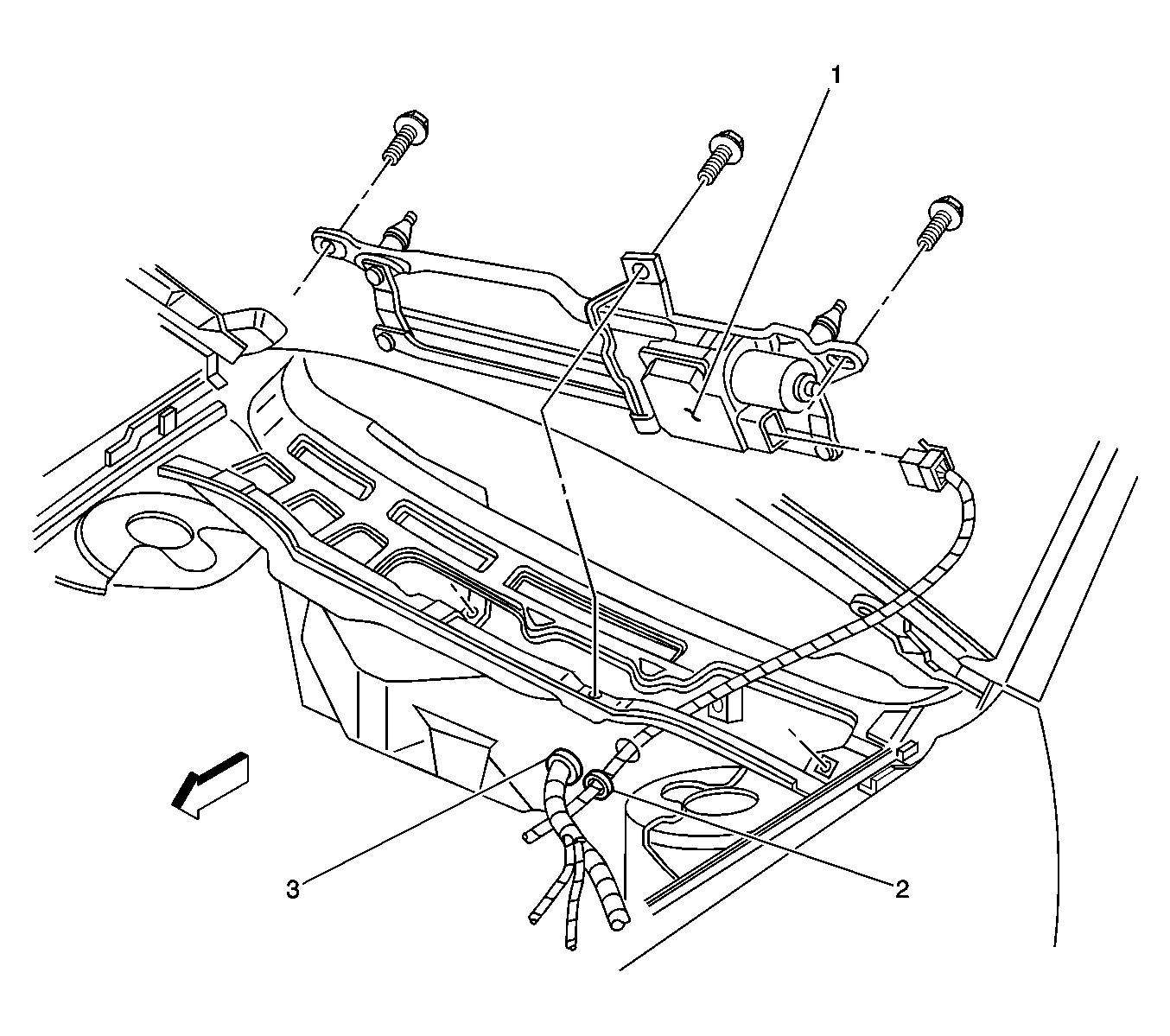

Fig 2: Forward Of Windshield Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper System Module
2	P103
3	P101

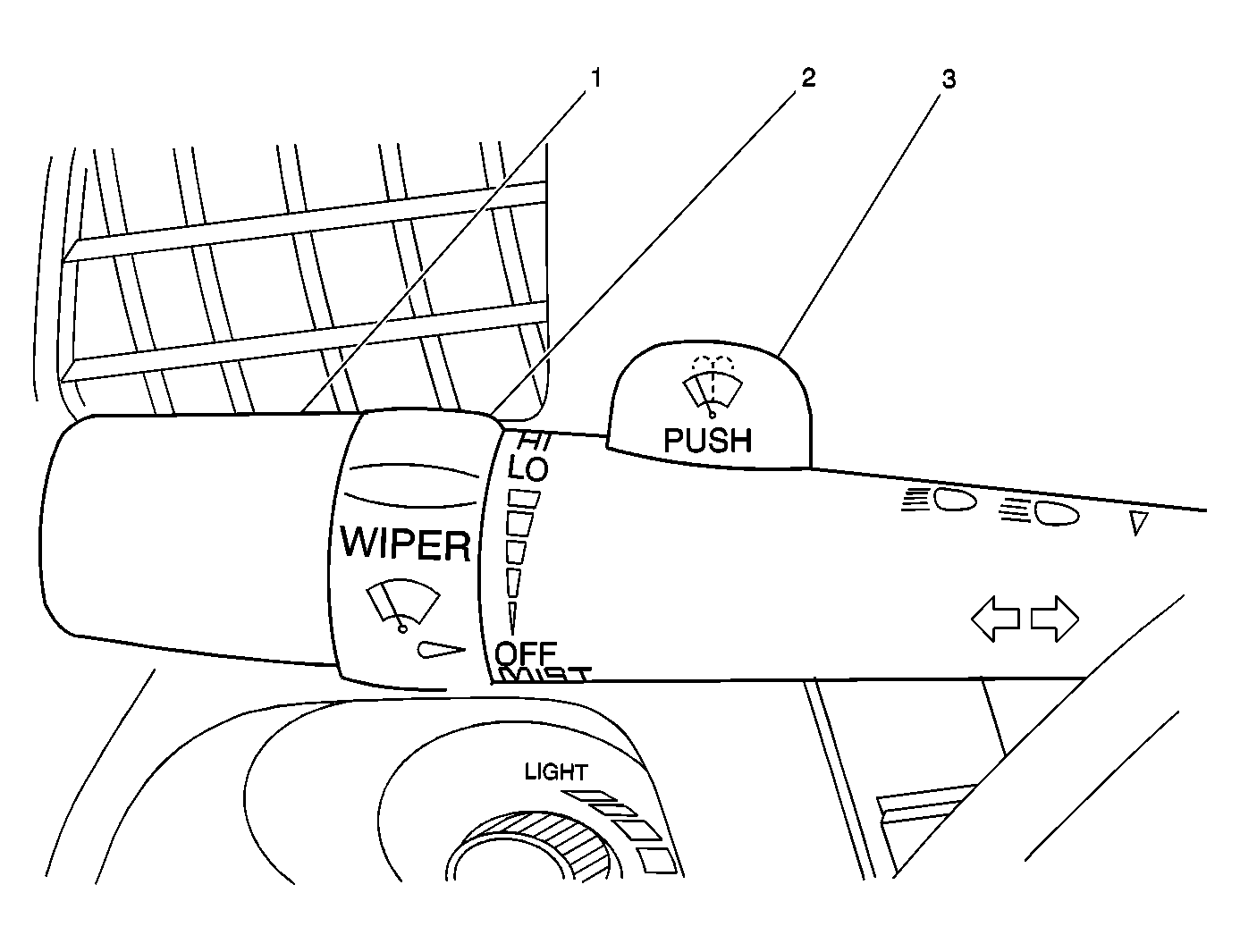

Fig 3: Turn Signal/Multifunction Switch Component View (Impala)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Malfunction Switch
2	Wiper Switch
3	Washer Switch
4	Cruise Control ON/OFF Switch

Fig 4: Turn Signal/Multifunction Switch Component View (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Malfunction Switch
2	Wiper Switch
3	Washer Switch
