2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Lighting Systems Component Views

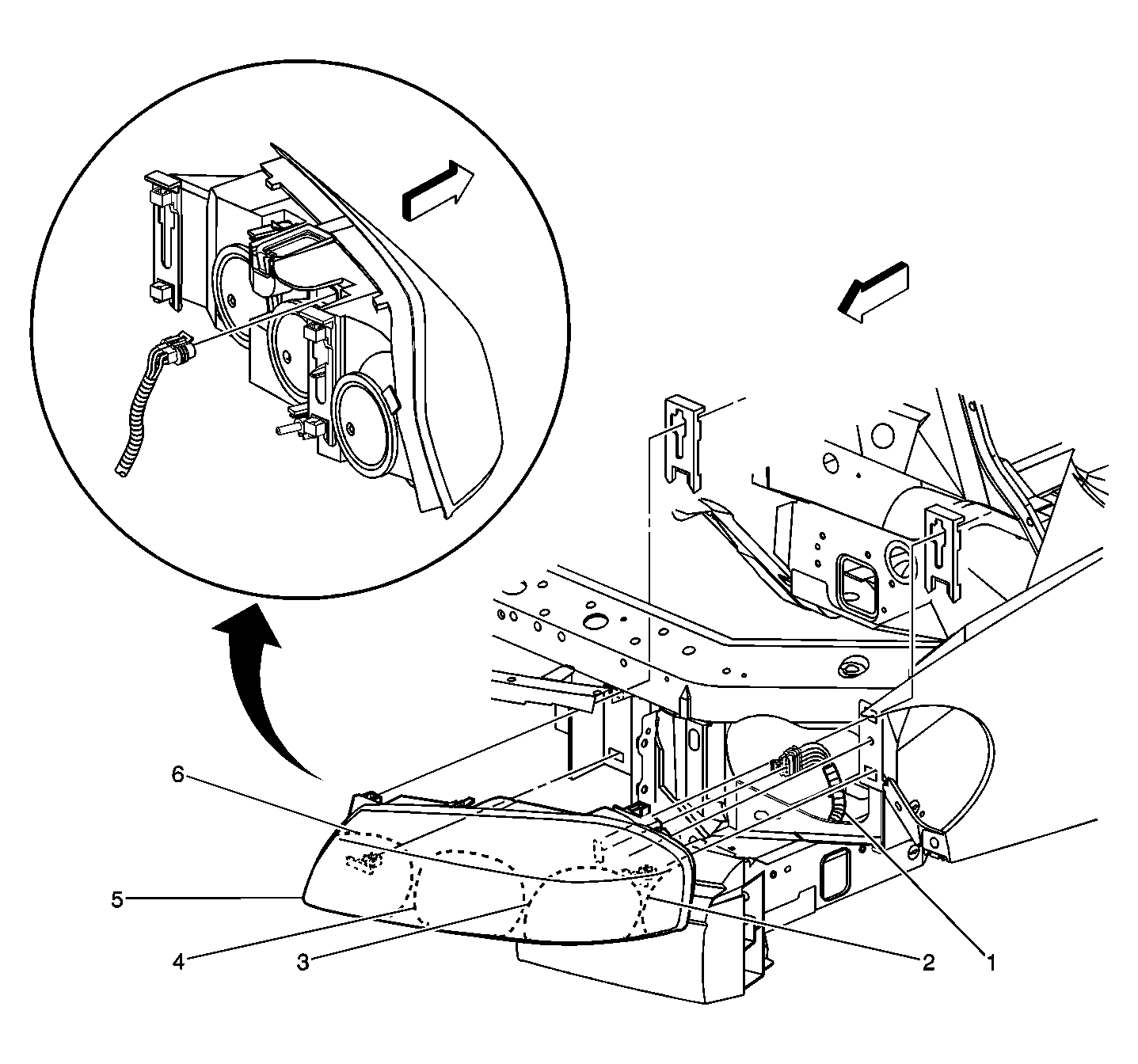

Fig 1: Left Front Of Impala Component View, Right Front Similar
GM498539Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp-Left Connector
2 Park Lamp-LF
3 Turn Lamp-LF
4 Headlamp-Left Low Beam
5 Headlamp-Left
6 Headlamp-Left High Beam

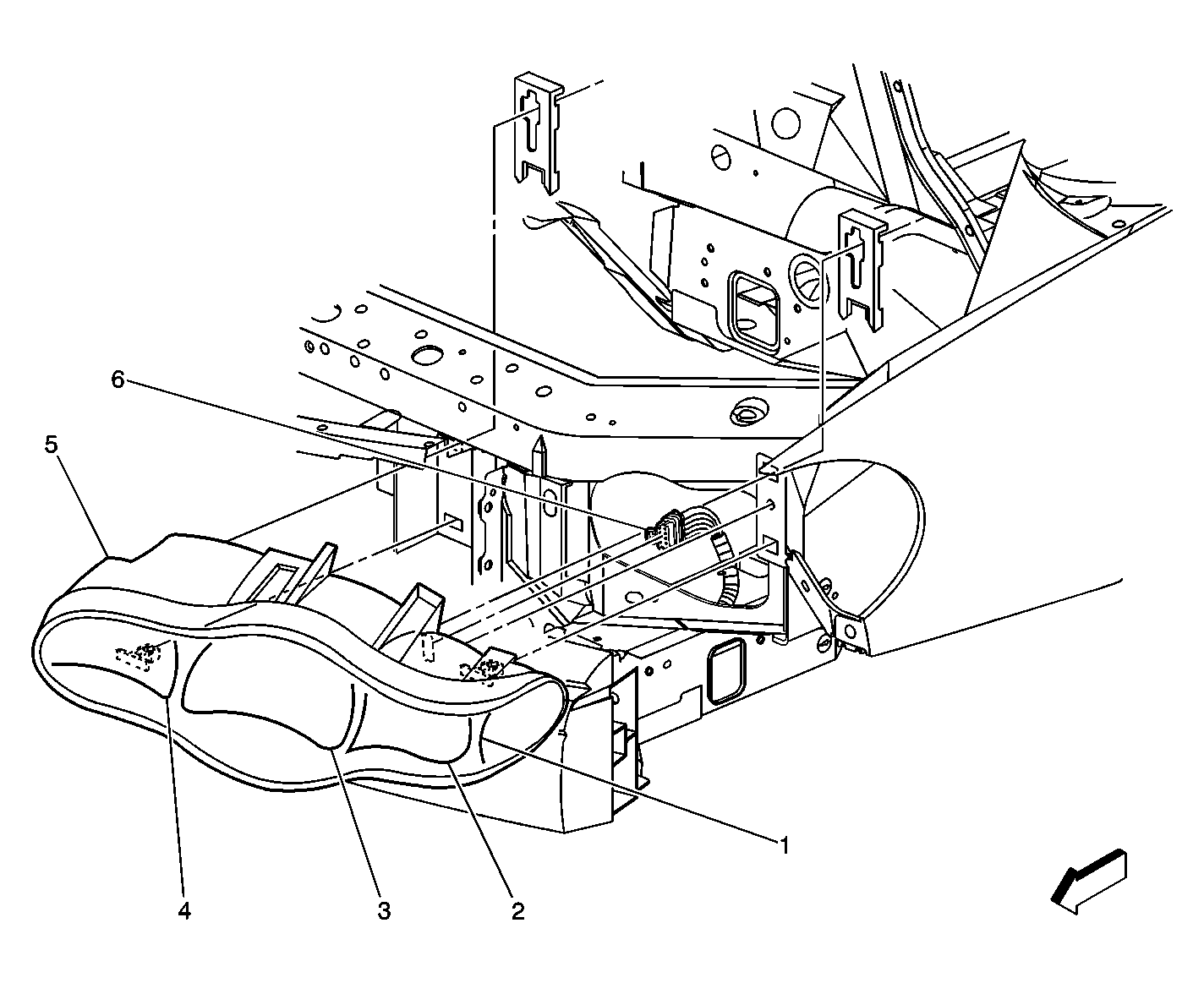

Fig 2: Left Front Of Monte Carlo Component View, Right Front Similar
GM498521Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Lamp-LF
2 Park/Turn Lamp-LF
3 Headlamp-Left Low Beam
4 Headlamp-Left High Beam
5 Headlamp-Left
6 Headlamp-Left Connector

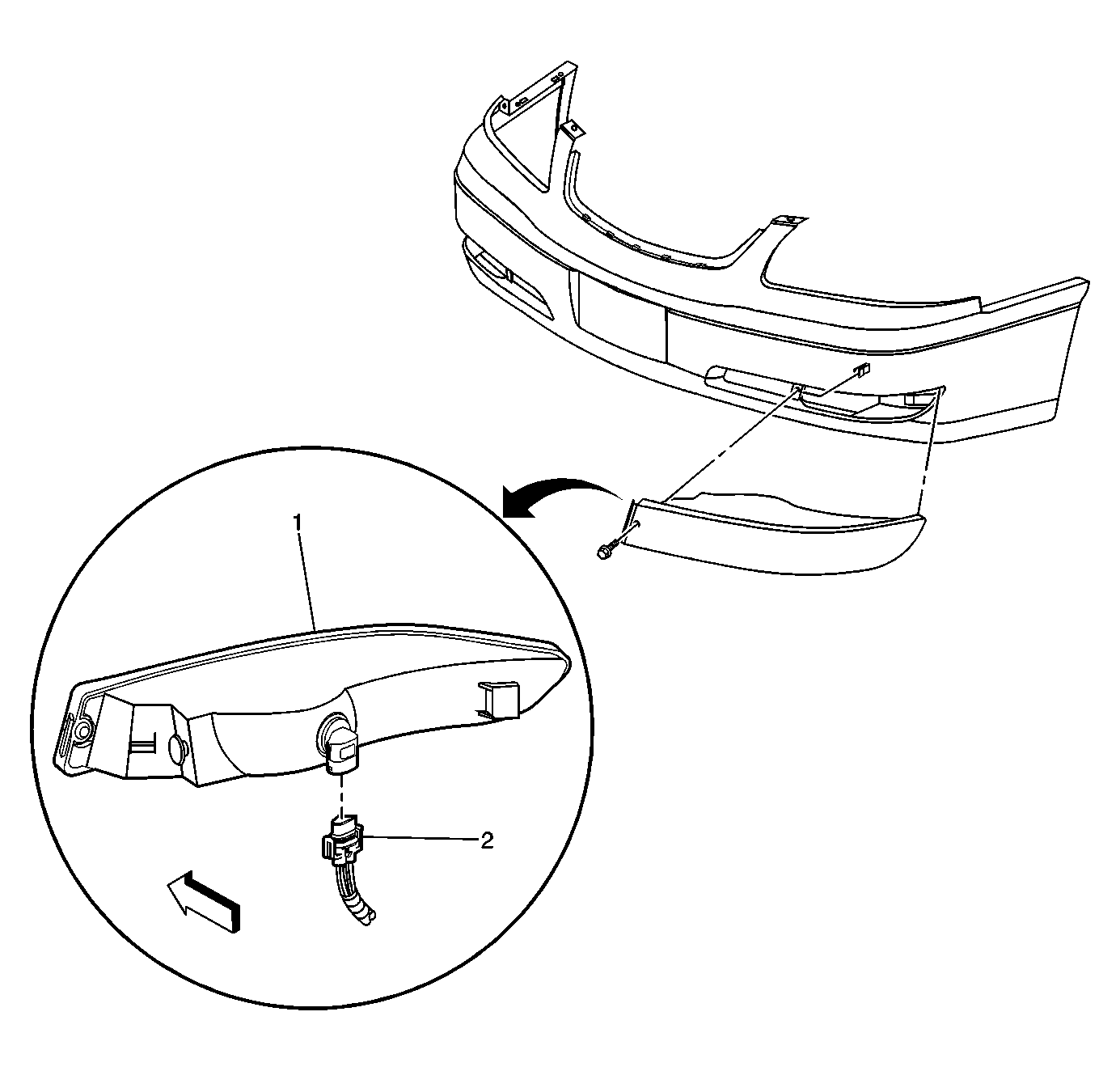

Fig 3: Lower Left Front Of Vehicle Component View, Lower Right Front Similar
GM498546Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fog Lamp-LF
2 Fog Lamp-LF Connector

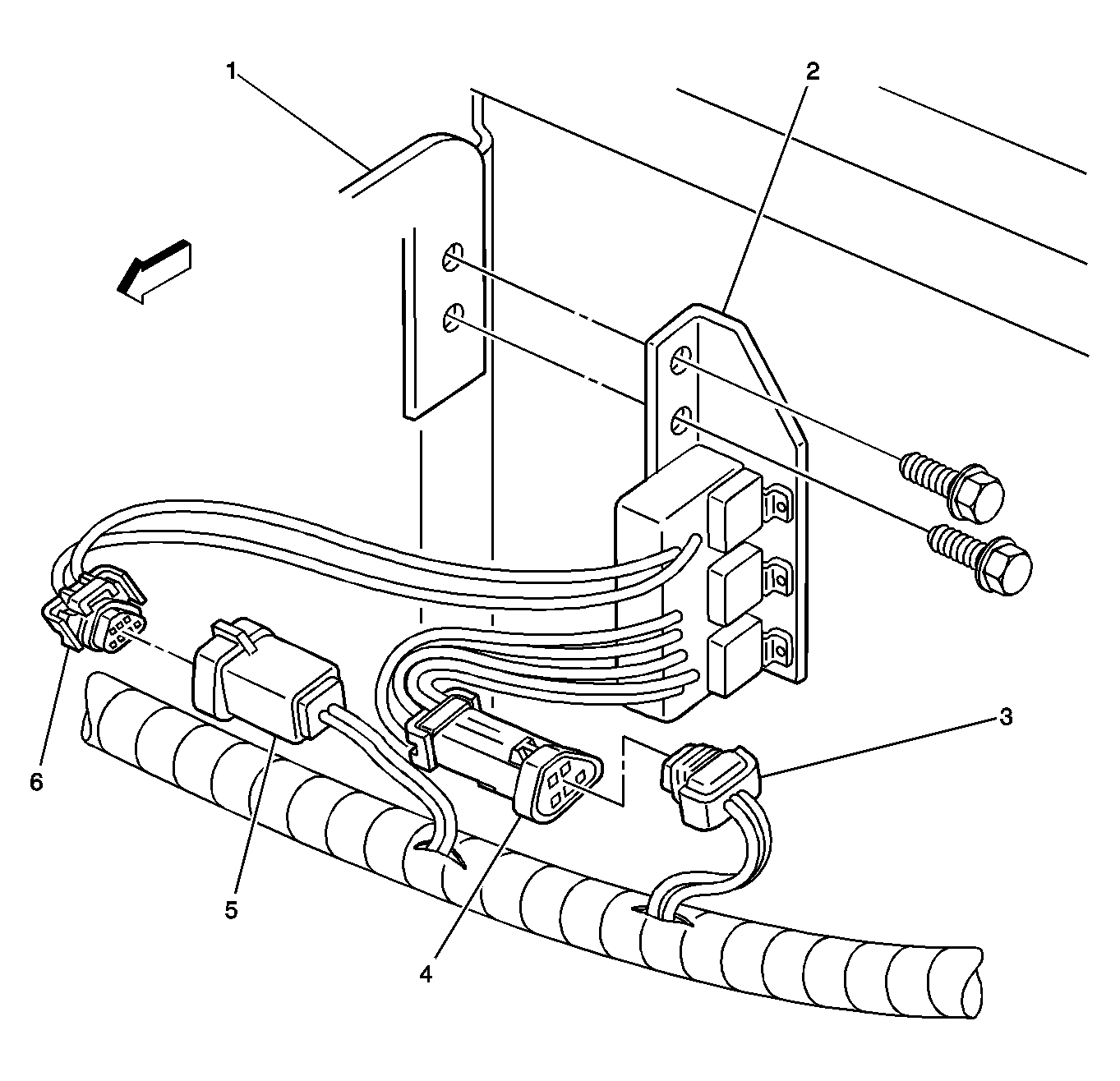

Fig 4: Forward Of Radiator Support Component View (9C1/9C6)
GM807211Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radiator Support
2 Emergency Vehicle Headlamps Flasher (6J7)
3 C122
4 Emergency Vehicle Headlamps Flasher, C1 (6J7)
5 C122
6 Emergency Vehicle Headlamps Flasher, C2 (6J7)

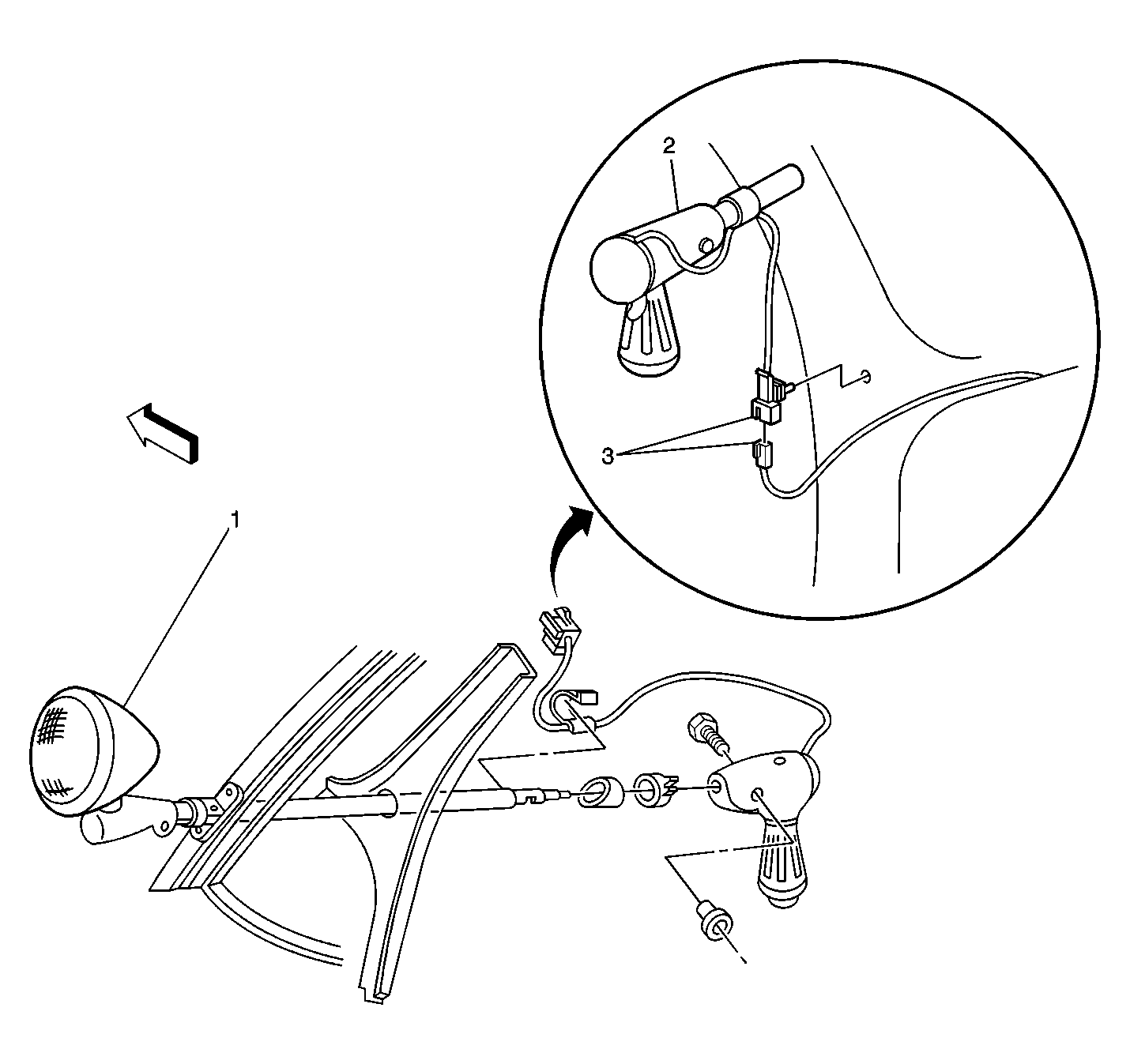

Fig 5: Driver A-Pillar Component View, Front Passenger A-Pillar Similar (7X6/7X7)
GM592729Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Spot Lamp-Left
2 Spot Lamp-Left Switch
3 Spot Lamp-Left Connector

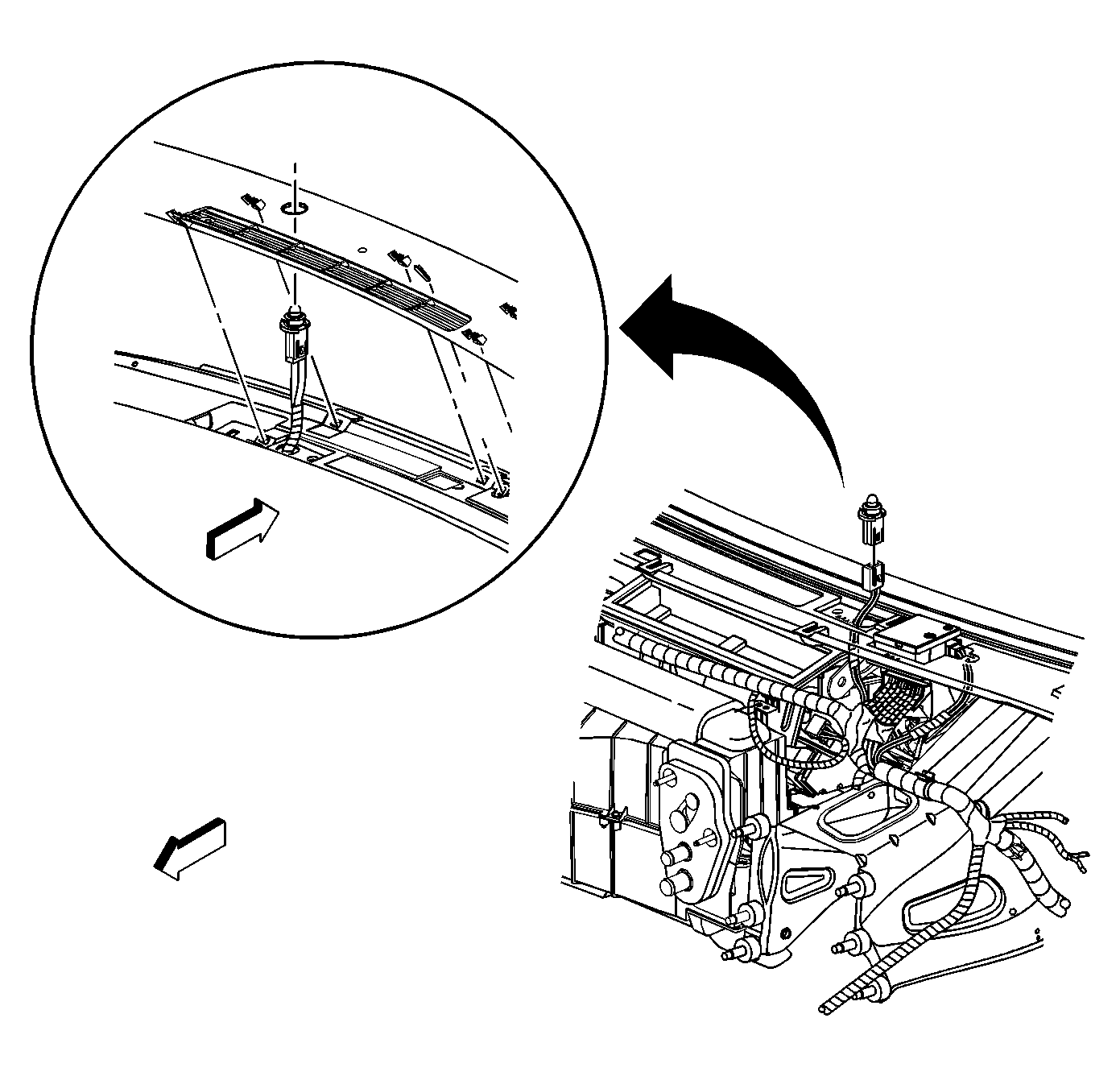

Fig 6: Top Of Instrument Panel, Ambient Light Sensor Component View
GM498567Courtesy of GENERAL MOTORS CORP.
