2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Entertainment Connector End Views

Audio Amplifier Connector End View, C1

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GRY)
Pin Wire Color Circuit No. Function
A1 BLK 1051 Ground
A2 - - Not Used
A3 ORN 2640 Battery Positive Voltage
A4-A8 - - Not Used
A9 LT BLU 115 Right Rear Speaker Output (-)
A10 YEL 116 Left Rear Speaker Output (-)
A11 DK GRN 117 Right Front Speaker Output (-)
A12 GRY 118 Left Front Speaker Output (-)
B1 BLK 1051 Ground
B2 - - Not Used
B3 ORN 2640 Battery Positive Voltage
B4 - - Not Used
B5 WHT 1487 Antenna Enable Signal
B6-B8 - - Not Used
B9 DK BLU 46 Right Rear Speaker Output (+)
B10 BRN 199 Left Rear Speaker Output (+)
B11 LT GRN 200 Right Front Speaker Output (+)
B12 TAN 201 Left Front Speaker Output (+)
Audio Amplifier Connector End View, C2

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12-Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
A PPL 1952 Right Front Tweeter Speaker Output (-)
B YEL 1956 Left Front Tweeter Speaker Output (-)
C RED 1955 Right Rear Speaker Output (-)
D WHT 1959 Left Rear Speaker Output (-)
E LT BLU/BLK 315 Right Front Speaker Output (-)
F LT GRN/BLK 1794 Left Front Speaker Output (-)
G DK BLU/
WHT		 346 Left Front Speaker Output (+)
H DK GRN/WHT 1795 Right Front Speaker Output (-)
J TAN 1859 Left Rear Speaker Output (+)
K TAN 1855 Right Rear Speaker Output (+)
L BLK 1856 Left Front Tweeter Speaker Output (+)
M LT GRN 1852 Right Front Tweeter Speaker Output (+)

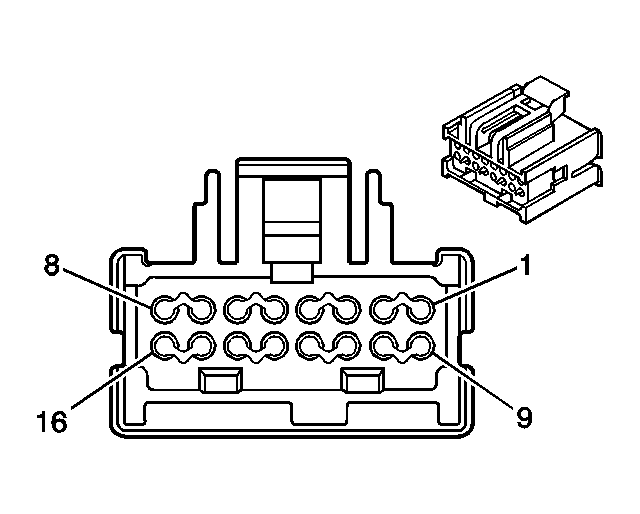

Digital Radio Receiver Connector End View (Early Production)

GM823325Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15394150
  • 16-Way F Metri-Pack (BLK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BRN/WHT 367 Remote Radio Left Audio Signal
3 DK GRN/WHT 368 Remote Radio Right Audio Signal
4-8 - - Not Used
9 BLK 1051 Ground
10 BLK/WHT 372 Audio Common
11 BARE 1705 Drain Wire
12-14 - - Not Used
15 DK BLU 2272 Amplifier Class 2 Serial Data
16 ORN 2640 Battery Positive Voltage
Digital Radio Receiver Connector End View (Late Production)

GM823325Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15394150
  • 16-Way F Metri-Pack (BLK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BRN/YEL 2059 Auxiliary Audio Left Signal
3 WHT 2058 Auxiliary Audio Right Signal
4-8 - - Not Used
9 BLK 1051 Ground
10 PNK/BLK 5152 Audio Common
11 BARE 1705 Drain Wire
12-14 - - Not Used
15 DK BLU 2272 Amplifier Class 2 Serial Data
16 ORN 2640 Battery Positive Voltage
Radio Connector End View, C1

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GRY)
Pin Wire Color Circuit No. Function
A1 ORN 1044 Radio Class 2 Serial Data
A2-A5 - - Not Used
A6 PNK 314 Radio On Signal (w/o 9C1/9C3/9C6)
A7 DK BLU 1796 Steering Wheel Controls Signal (w/o 9C1/9C3/9C6)
A8 TAN 201 Left Front Speaker Output (+)
A9 GRY 118 Left Front Speaker Output (-)
A10 LT BLU 115 Right Rear Speaker Output (-)
A11 DK BLU 46 Right Rear Speaker Output (+)
A12 BLK 1051 Ground
B1 ORN 2640 Battery Positive Voltage
B2 - - Not Used
B3 WHT 1487 Antenna Enable Signal
B4 GRY 8 Instrument Panel Lamp Supply Voltage - 1
B5 BLK 1050 Ground
B6 PPL 2232 Amplifier Present Signal (Monte Carlo)
B7 - - Not Used
B8 BRN 199 Left Rear Speaker Output (+)
B9 YEL 116 Left Rear Speaker Output (-)
B10 DK GRN 117 Right Front Speaker Output (-)
B11 LT GRN 200 Right Front Speaker Output (+)
B12 - - Not Used
Radio Connector End View, C2

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12-Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
A-G - - Not Used
H DK GRN/WHT 368 Remote Radio Right Audio Signal
J BRN/WHT 367 Remote Radio Left Audio Signal
K BLK/WHT 372 Audio Common
L BLK/WHT 372 Remote Radio Audio Output (-)
M DK GRN/
WHT		 368 Remote Radio Right Audio Signal
Radio Antenna Module Connector End View

GM773245Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15359292
  • 2-Way F 58 Series (BLK)
Pin Wire Color Circuit No. Function
A WHT 1487 Antenna Enable Signal
B DK GRN 1927 Radio Antenna/Rear Window Defog Control Module Supply Voltage
Speaker Connector End View - LF Door

GM697046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186567
  • 4-Way F Metri-Pack 150 Series, Sealed (BLK)
Pin Wire Color Circuit No. Function
A GRY 118 Left Front Speaker Output (-)
B TAN 201 Left Front Speaker Output (+)
C YEL 1956 Left Front Tweeter Speaker Output (-)
D BLK 1856 Left Front Tweeter Speaker Output (+)
Speaker Connector End View - RF Door

GM697046Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186567
  • 4-Way F Metri-Pack 150 Series, Sealed (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 117 Right Front Speaker Output (-)
B LT GRN 200 Right Front Speaker Output (+)
C PPL 1952 Right Front Tweeter Speaker Output (-)
D LT GRN 1852 Right Front Tweeter Speaker Output (+)
Speaker Connector End View - LR

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN 1859 Left Rear Speaker Output (+) (UQ3)
A BRN 199 Left Rear Speaker Output (+) (UW6/U62)
B WHT 1959 Left Rear Speaker Output (-) (UQ3)
B YEL 116 Left Rear Speaker Output (-) (UW6/U62)
Speaker Connector End View - RR

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN 1855 Right Rear Speaker Output (+) (UQ3)
A DK BLU 46 Right Rear Speaker Output (+) (UW6/U62)
B RED 1955 Right Rear Speaker Output (-) (UQ3)
B LT BLU 115 Right Rear Speaker Output (-) (UW6/U62)
