2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Data Link Communications Component Views

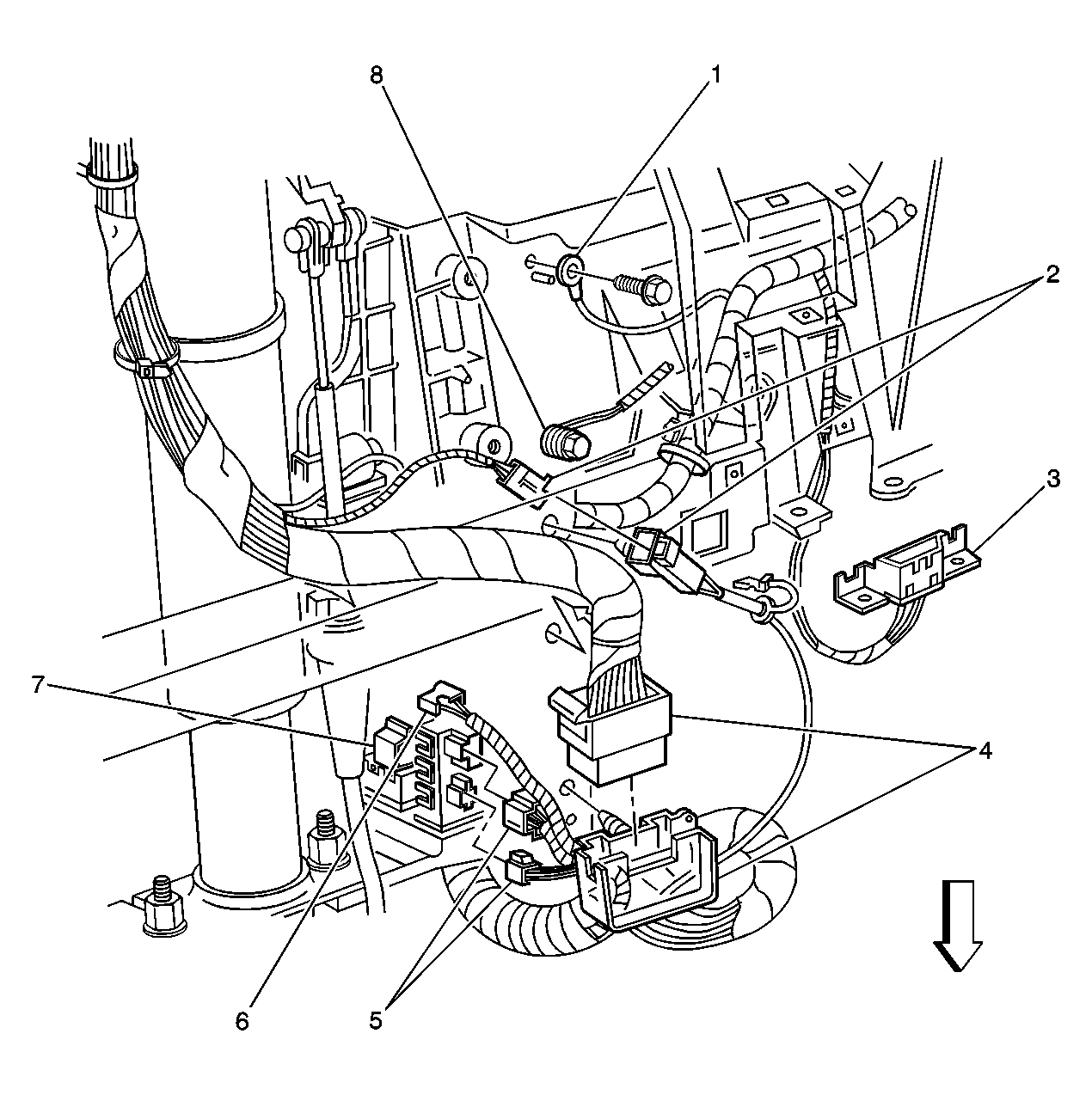

Fig 1: Lower Center Of Instrument Panel Component View (w/o 9C1/9C3)
GM487935Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G203
2 Inflatable Restraint Steering Wheel Module Coil Connector C1
3 Data Link Connector (DLC)
4 C201
5 Stop Lamp Switch Connectors
6 Cruise Control Release Switch Connector
7 Cruise Control Release Switch
8 G201

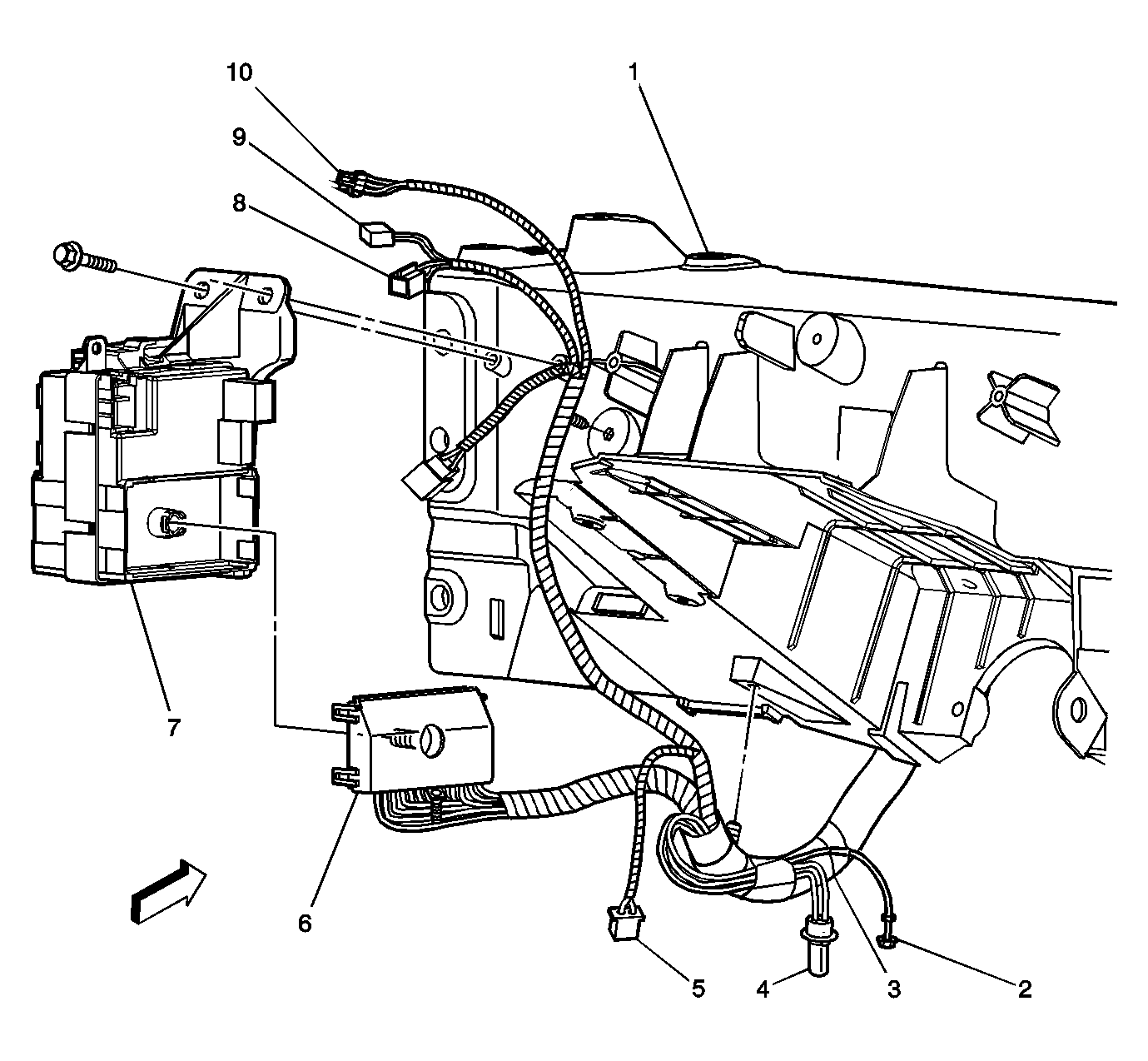

Fig 2: Left Side Of Instrument Panel Support Component View
GM743324Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Carrier
2 C205 (Radio Coax)
3 Splice Pack-SP205 (Taped Over)
4 Footwell Courtesy Lamp-Left
5 Rear Compartment Lid Release Switch Connector
6 Junction Block-Left I/P Connector C1
7 Junction Block-Left I/P
8 Traction Control Switch (Impala) Connector
9 Fog Lamp Switch Connector
10 Headlamp Switch Connector
