2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Body Control System Component Views

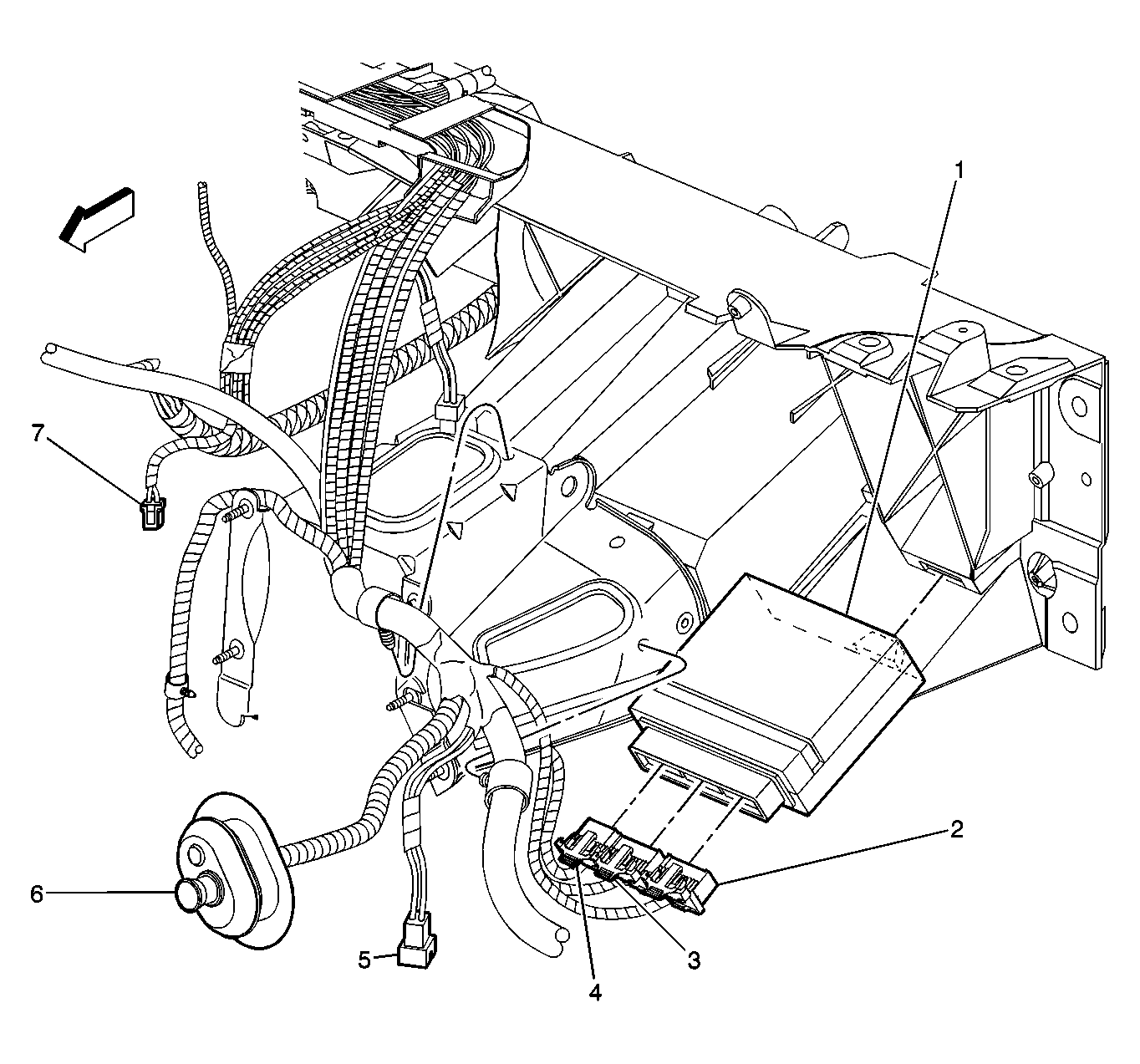

Fig 1: Behind Left Side Of Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Body Control Module Connector C3
3	Body Control Module Connector C2
4	Body Control Module Connector C1
5	Headlamp Switch Connector
6	P101
7	Remote Control Door Lock Receiver (RCDLR) Connector
