2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

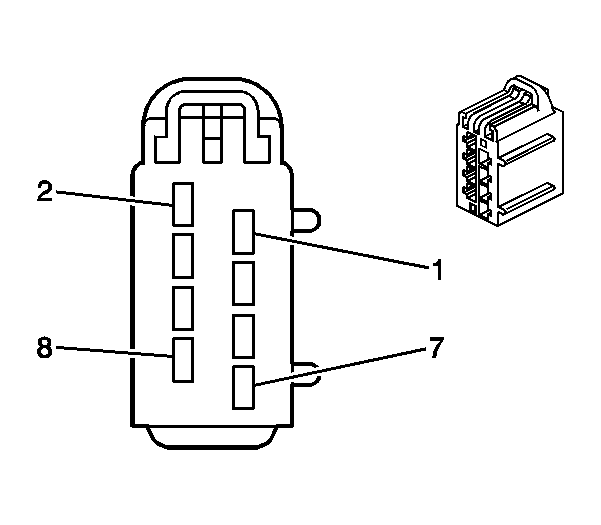

Seat Adjuster Motor Assembly Connector End View - Front Passenger
Seat Adjuster Motor Assembly - Front Passenger
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | DK GRN | 286 | Driver Seat Front Vertical Motor Up Control |
| 2 | LT BLU | 283 | Driver Seat Rear Vertical Motor Down Control |
| 3 | LT GRN | 284 | Driver Seat Horizontal Motor Rearward Control |
| 4 | - | - | Not Used |
| 5 | TAN | 285 | Driver Seat Horizontal Motor Forward Control |
| 6 | - | - | Not Used |
| 7 | DK BLU | 287 | Driver Seat Front Vertical Motor Down Control |
| 8 | YEL | 282 | Driver Seat Rear Vertical Motor Up Control |
