2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Installation Procedure

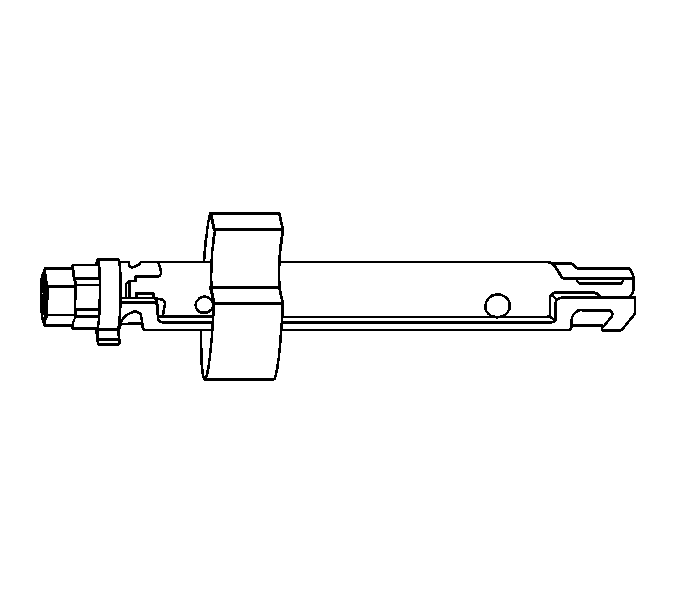

- Install the equalizer assembly to the front park brake cable.

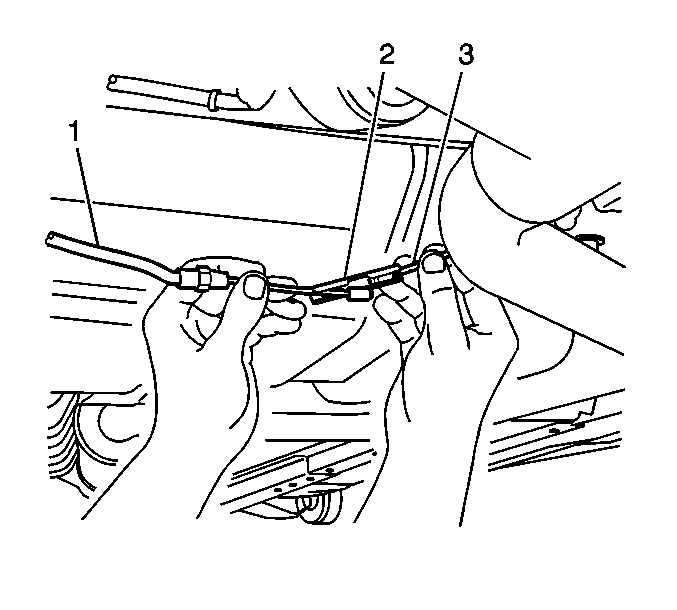

- Connect the front brake cable (1) to the right rear cable (3) at the connector clip (2).
- Connect the left rear brake cable and adjustment stud assembly to the equalizer assembly by installing the adjustment stud to the equalizer nut.
- Adjust the Park Brake System. Refer to Park Brake Adjustment .
- Lower the vehicle.
