2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
IMPORTANT:
Protect applique with heavy material tape to avoid damaging the underlying paint finish or applique. Do not use a pointed or sharp instruments for removal of the door applique.
- Position the rear door window in the down position.
- Remove the rear door window channel part way from the applique. Refer to Weatherstrip Replacement - Rear Door Window (Impala) .
- Remove the rear door outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer (Impala) .
- Remove the rear door window channel retainer. Refer to Window Channel Retainer Replacement - Rear Door (Impala) .

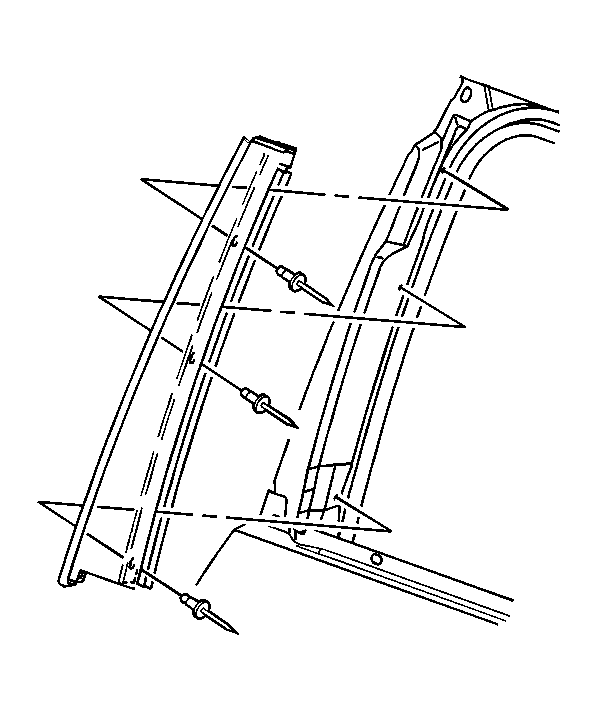

- Drill out the rivets from the rear door frame applique.
- Remove the rear door frame applique from the rear door.
