2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Installation Procedure

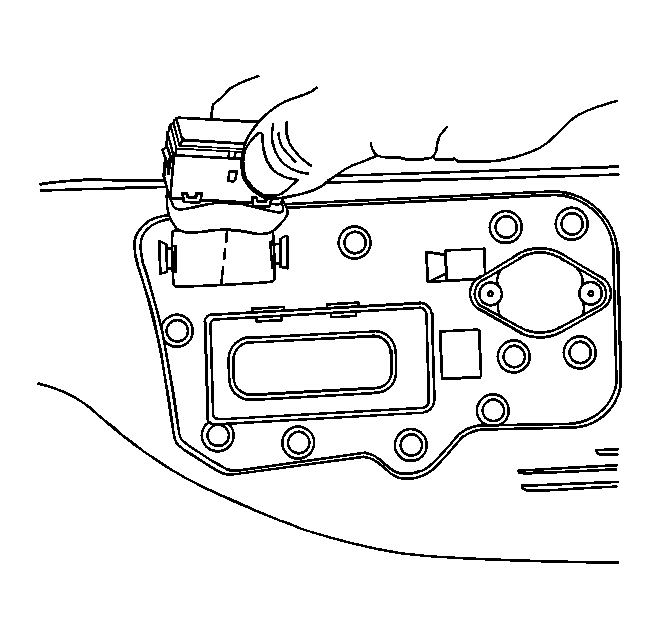

Fig 1: Front Seat Heated Seat Switch At Trim Panel (Impala)

Courtesy of GENERAL MOTORS CORP.

Install the front seat heated seat switch to the front seat cushion outer trim panel, pressing into place until fully seated.

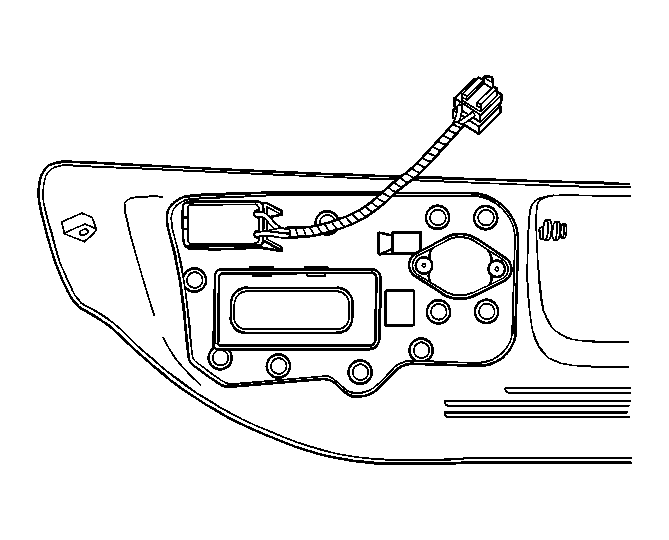

Fig 2: Front Seat Electrical Connector (Impala)

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the front seat wiring harness.
Install the front seat cushion outer trim panel. Refer to Trim Panel Replacement - Front Seat .
