2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the overhead console. Refer to Console Replacement - Overhead .
- Remove the sunshade anchors. Refer to Sunshade Anchor Replacement .
- Lower the headliner at the sunroof opening.

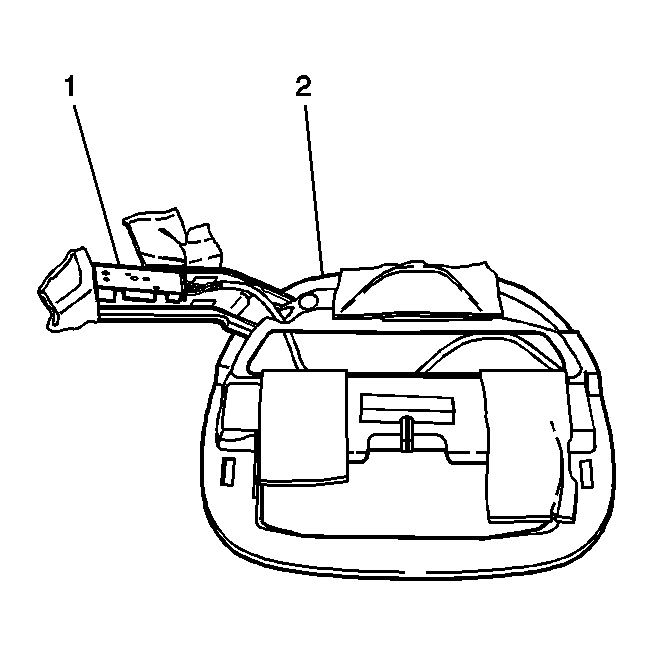

- Remove the foam tape from the electrical harness on the console retainer (2).
- Reposition the electrical harness away from the retainer.
- Slide the retainer forward and remove the retainer from the front of the headliner.
- Remove the remote compass sensor.
