2003 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

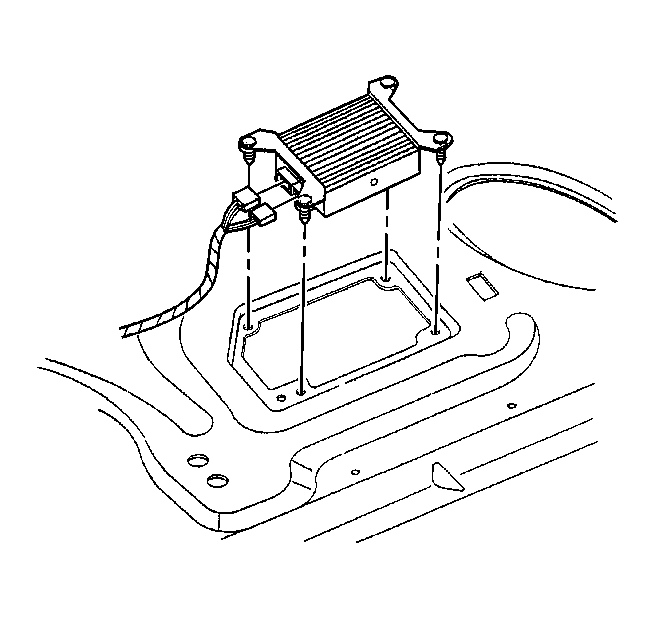

Removal Procedure
- Remove the rear window trim panel. Refer to Trim Panel Replacement - Rear Window Shelf (Impala) or Trim Panel Replacement - Rear Window Shelf (Monte Carlo) in Interior Trim.
- Disengage the amplifier retainers from the rear window panel.
- Disconnect the electrical connectors from the amplifier.
- Remove the amplifier.
IMPORTANT:
Inspect the retainers and the foam washers. Faulty retainers and washers must be replaced.
