Tools Required

J 41207-C Off-Board Programming Adapter Kit. See Special Tools .

The J 41207-C is required when a module must be programmed without having the vehicle present. See Special Tools . The adapter allows the module to be turned ON and communicate with the scan tool.

For additional SPS information, refer to Service Programming System (SPS) Description .

IMPORTANT: Ensure the Tech 2 and the terminal are both equipped with the latest software before performing SPS.

Performing the Off Board Remote Procedure

Obtain the vehicle identification number (VIN) of the vehicle for which the module is being programmed.

IMPORTANT: The TIS supports service programming with the Tech 2 scan tool only.

Launch the TIS application at the terminal.
Select the Service Programming System.
Highlight the following information on the Select Diagnostic Tool and Programming Process screen:
- Select Diagnostic Tool-Select Tech 2
- Select Programming Process-Identify whether an existing module is being reprogrammed or replaced with a new one.
- Select ECU location-select Off-Board Programming Adapter.
Select Next.

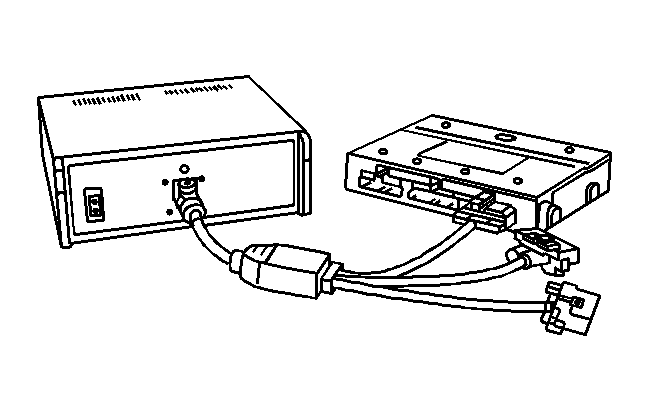

Fig 1: Control Module & Adapter

Courtesy of GENERAL MOTORS CORP.
