Installation Procedure

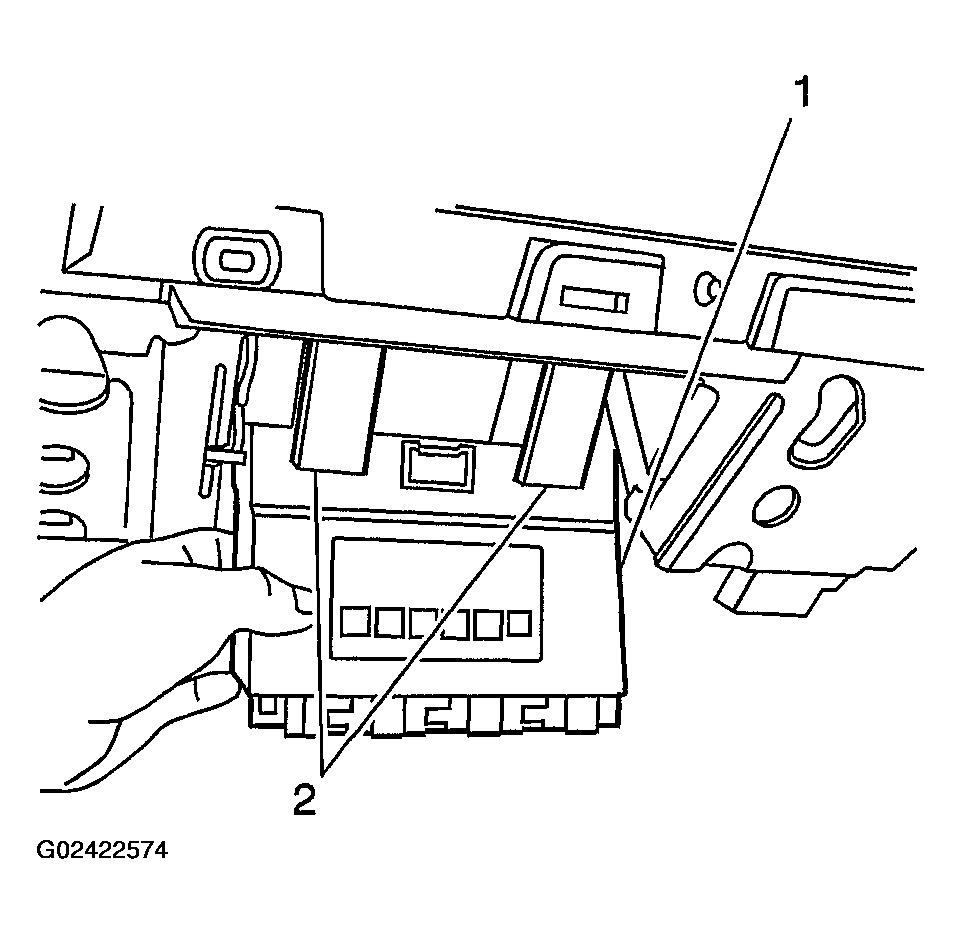

- Install the BCM (1) into the bracket. Ensure the BCM (1) is engaged in the bracket, under the retaining tabs (2).

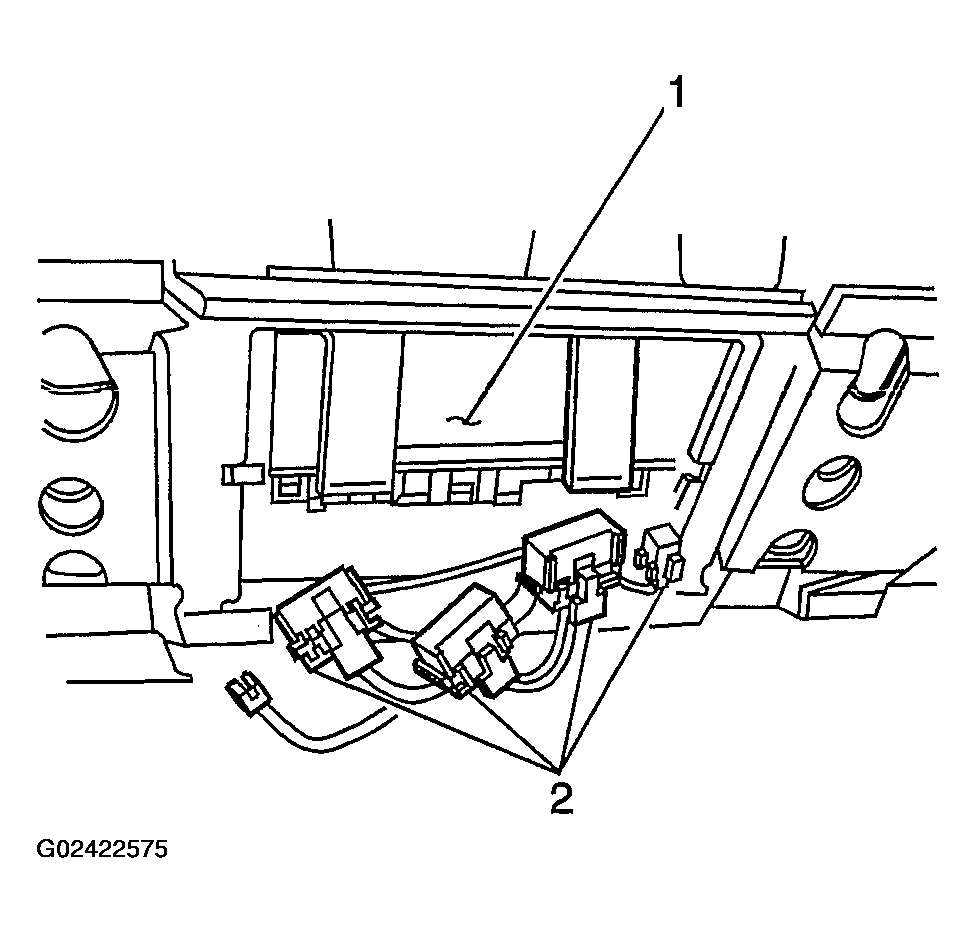

- Connect the electrical connectors (2) to the BCM (1).
- Install the right side knee bolster trim panel. Refer to KNEE BOLSTER REPLACEMENT - RIGHT .
- If the BCM has been replaced the module will need to be programed.
Program the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration .
