Removal Procedure
Important: Before replacing the RIM module, record the personalization settings in order to restore the settings after the new module is installed.
- Record the Rear Integration Module (RIM) personalization settings. Refer to DRIVER PERSONALIZATION .
- Remove the rear storage compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .

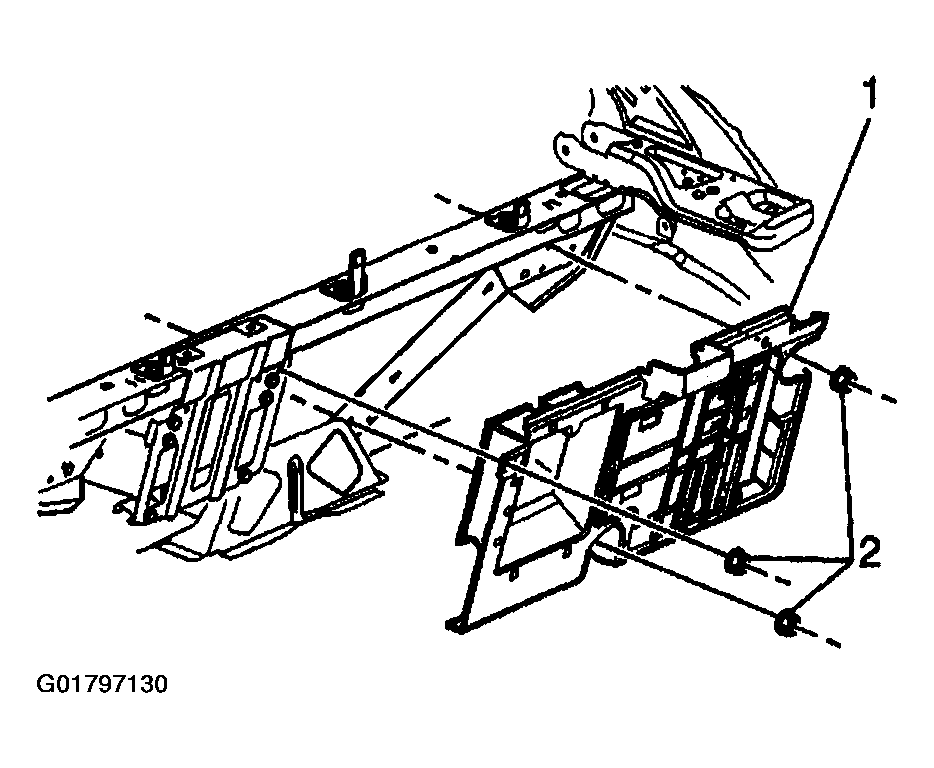

- Remove the electrical component mounting panel nuts (2).
- Pull the electrical component mounting panel (1) away from the body and place the panel (1) module side up in the rear compartment.
- Disconnect the RIM electrical connectors.

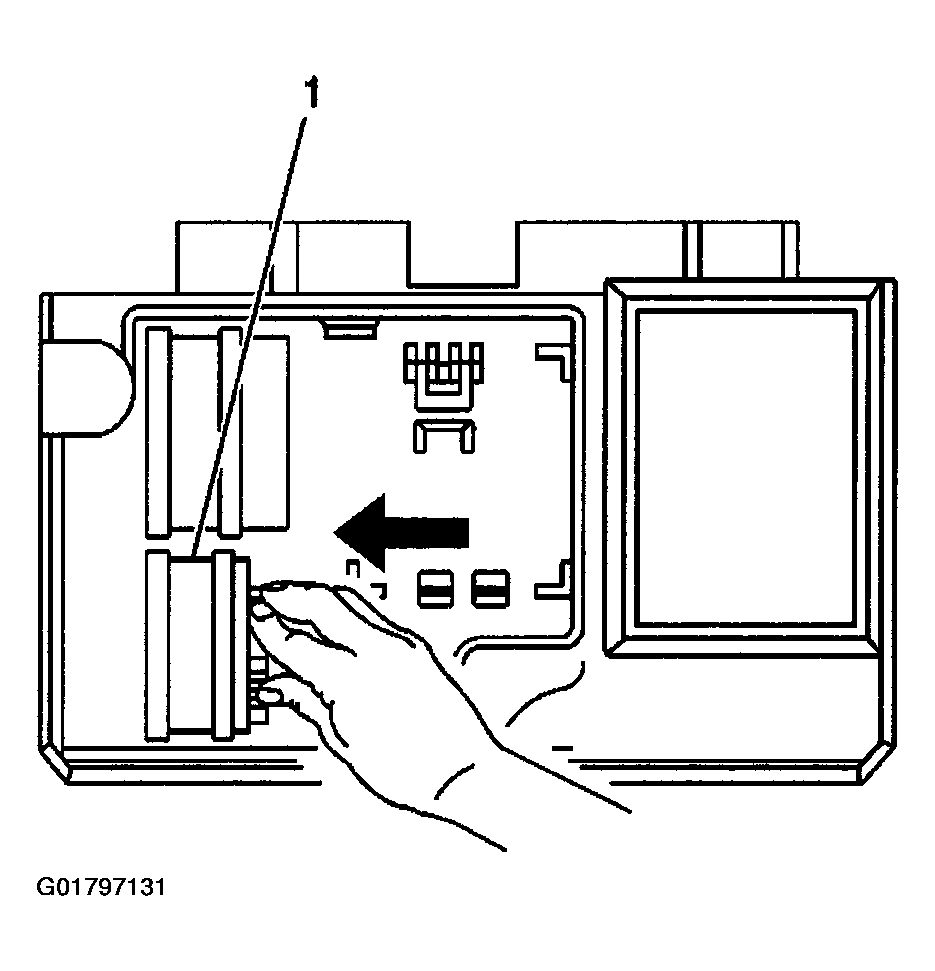

- Remove the RIM (1) by depressing the locking tabs (2) inward, in order to release the RIM (1) from the electrical component mounting panel.
