2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE

Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Before replacement of the DIM module (1), record the personalization settings in order to transfer the settings after the DIM module (1) has been replaced.

  1. Remove the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT or CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Disconnect the DIM electrical connectors (2).

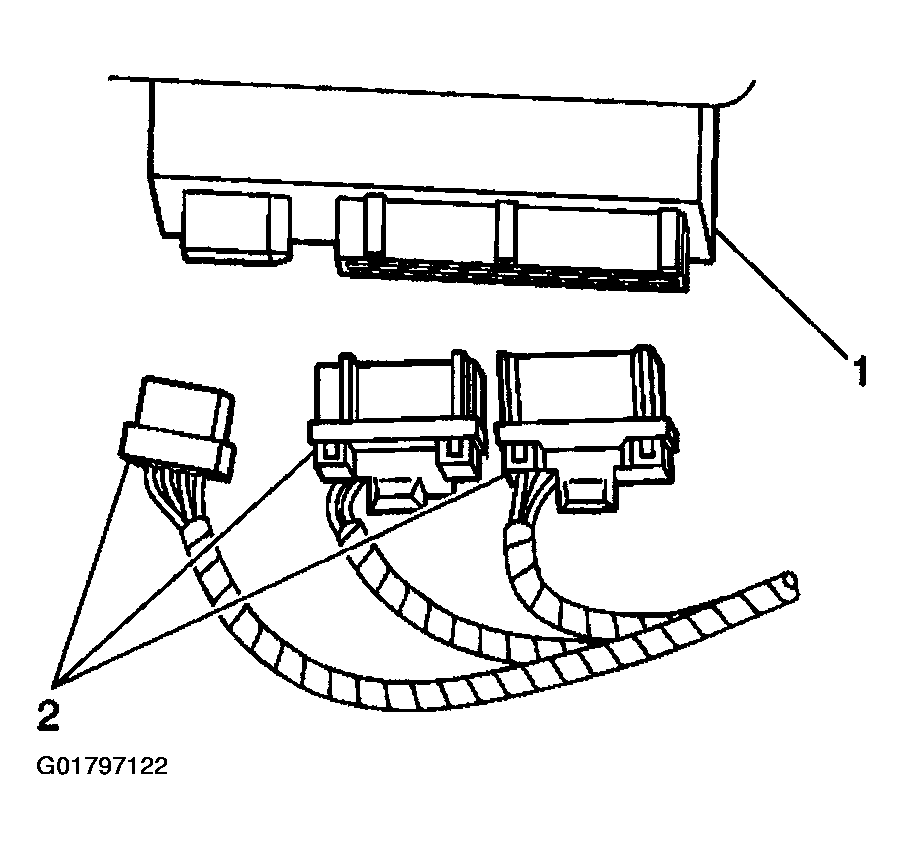

    Fig 1: Disconnecting DIM Electrical Connectors (LHD)
    G01797122Courtesy of GENERAL MOTORS CORP.
  3. Depress inward on the locking tab (2).
  4. With the locking tab (2) depressed, slide the DIM (1) downward.
  5. Remove the module (1) from the bracket.

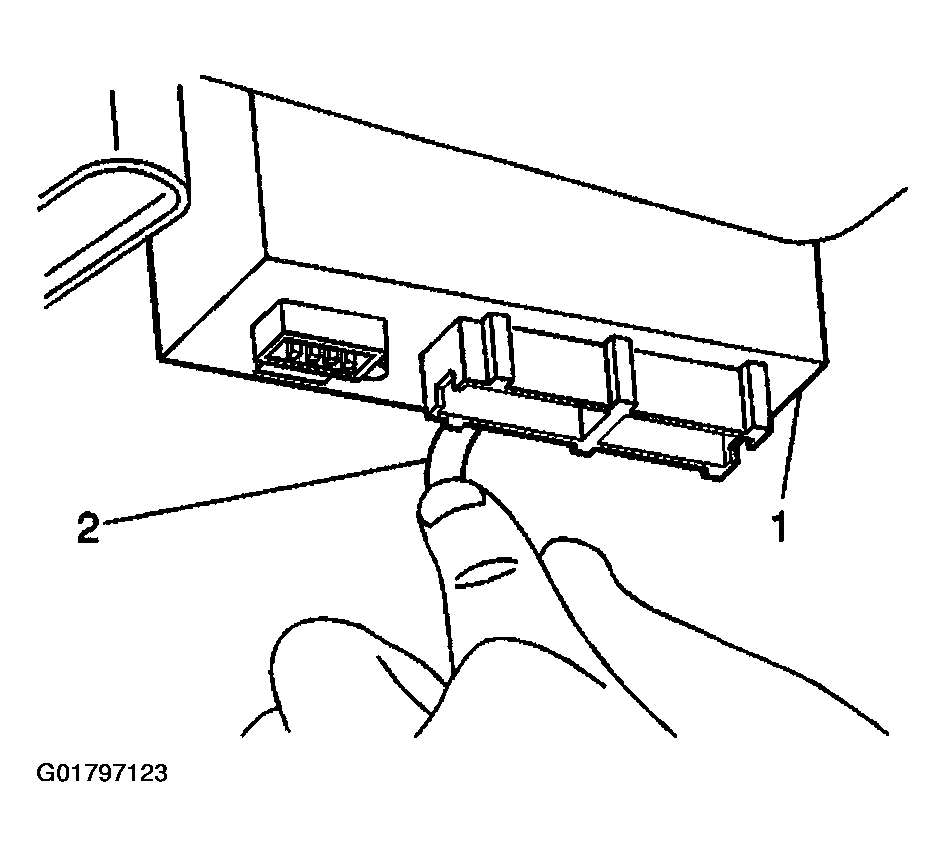

    Fig 2: Removing Module & Locking Tab (LHD)
    G01797123Courtesy of GENERAL MOTORS CORP.
