Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
- Install the module to the bracket.

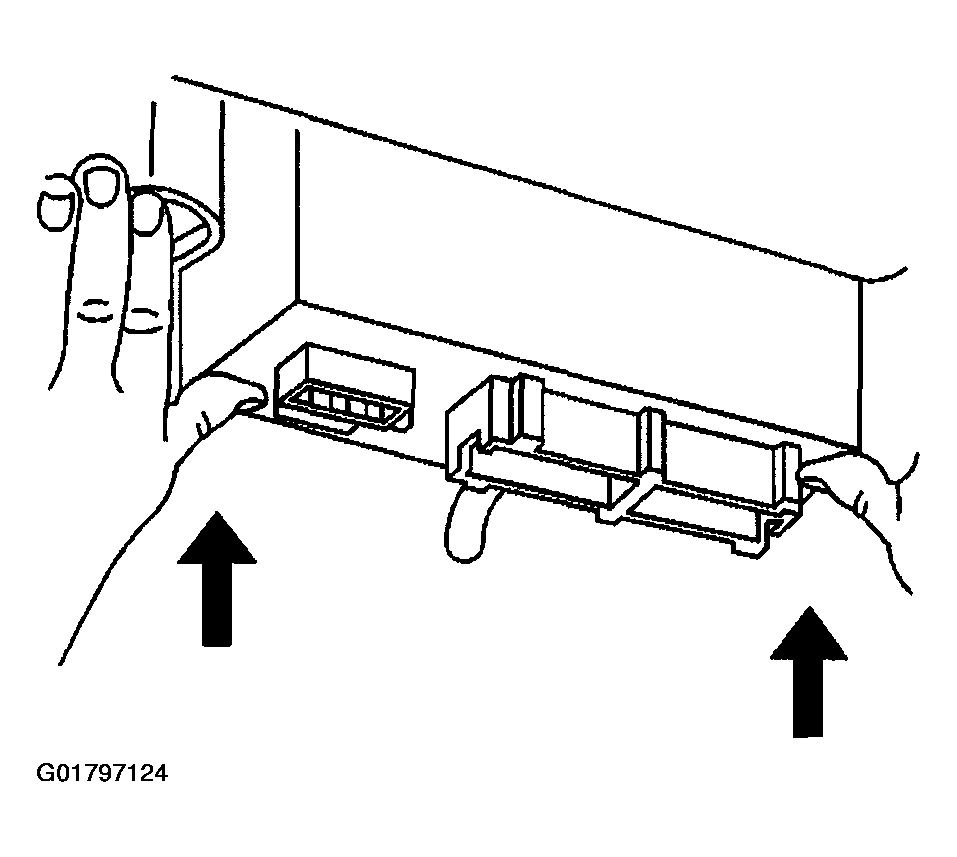

- Slide the DIM upward until it is fully engaged.

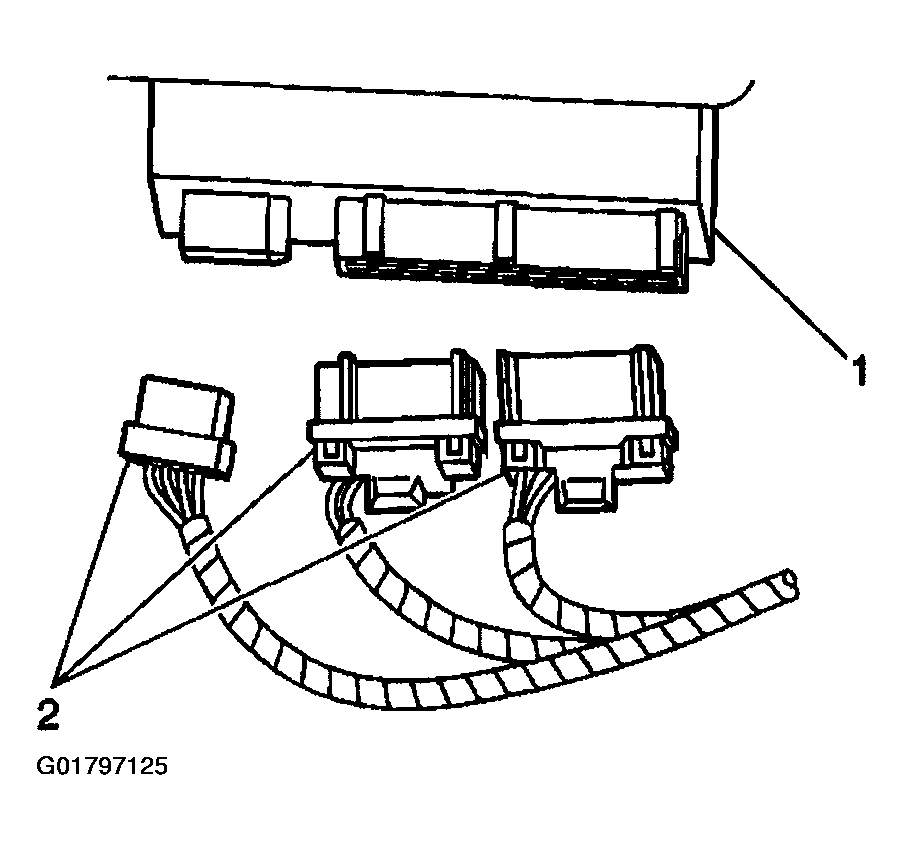

- Connect the DIM electrical connectors (2).
- Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT or CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
- Reprogram the Dash Integration Module. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)1 .
