2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

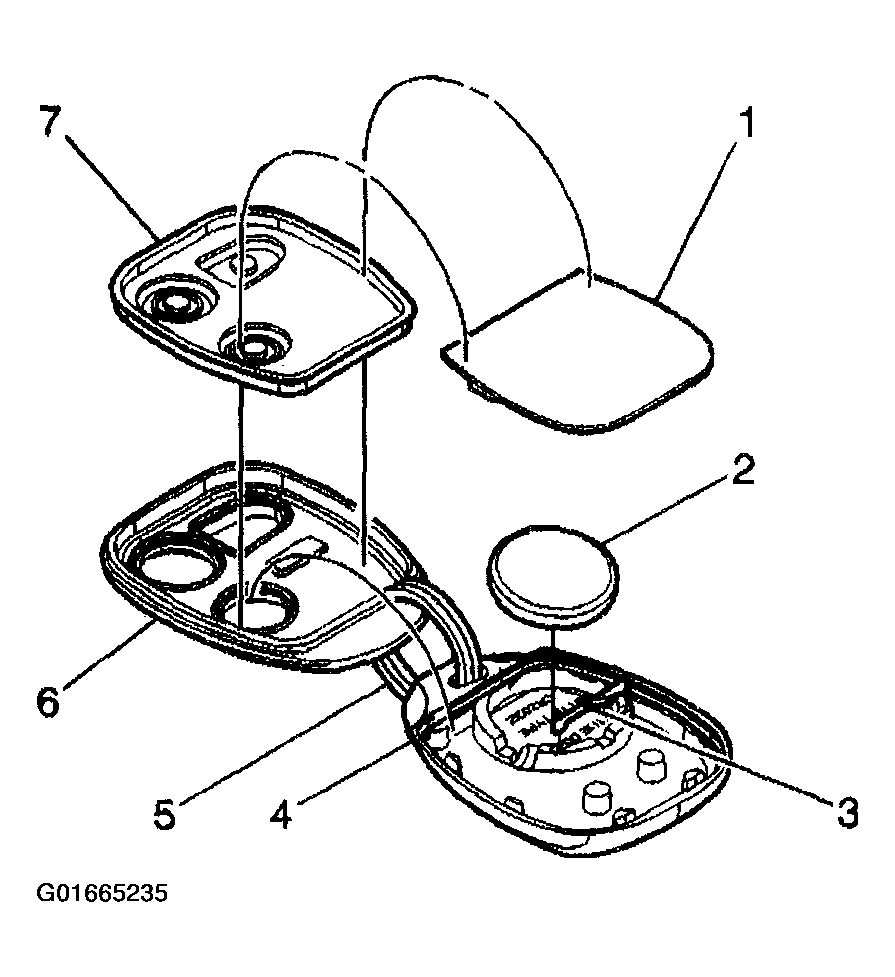

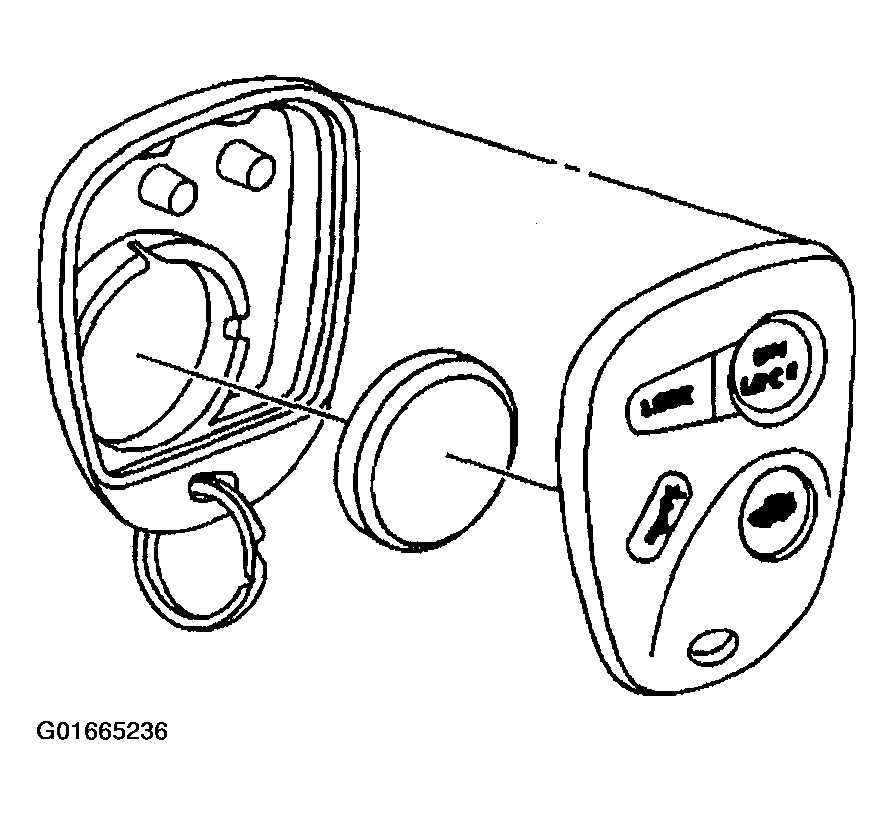

- Install the battery (2) within the positive (+) side down. Use one 3 V CR2302 battery or the equivalent.
- Align both halves (6,4) of the transmitter.
- Ensure that the seal if positioned correctly.
- Close the transmitter case.
- Resynchronize the transmitter. Refer to Transmitter Programming .
- Replace the battery when the range of the transmitter decreases to less than 7 mm (23 ft).
