2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE
Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel (IP) upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.

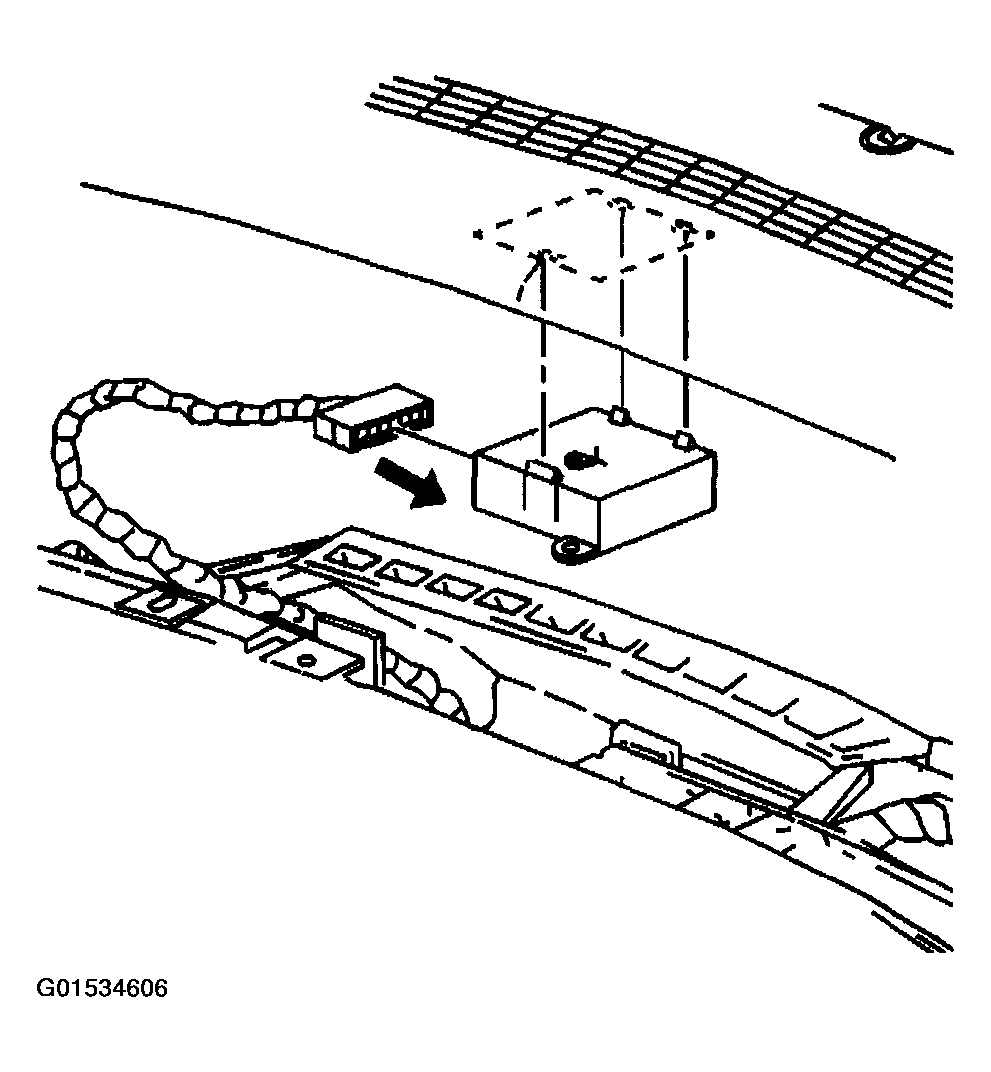

- Disengage the retaining tabs in order to remove the door lock receiver from the IP upper trim.
- Disconnect the electrical connector from the door lock receiver.
