2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE
Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery
- Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.

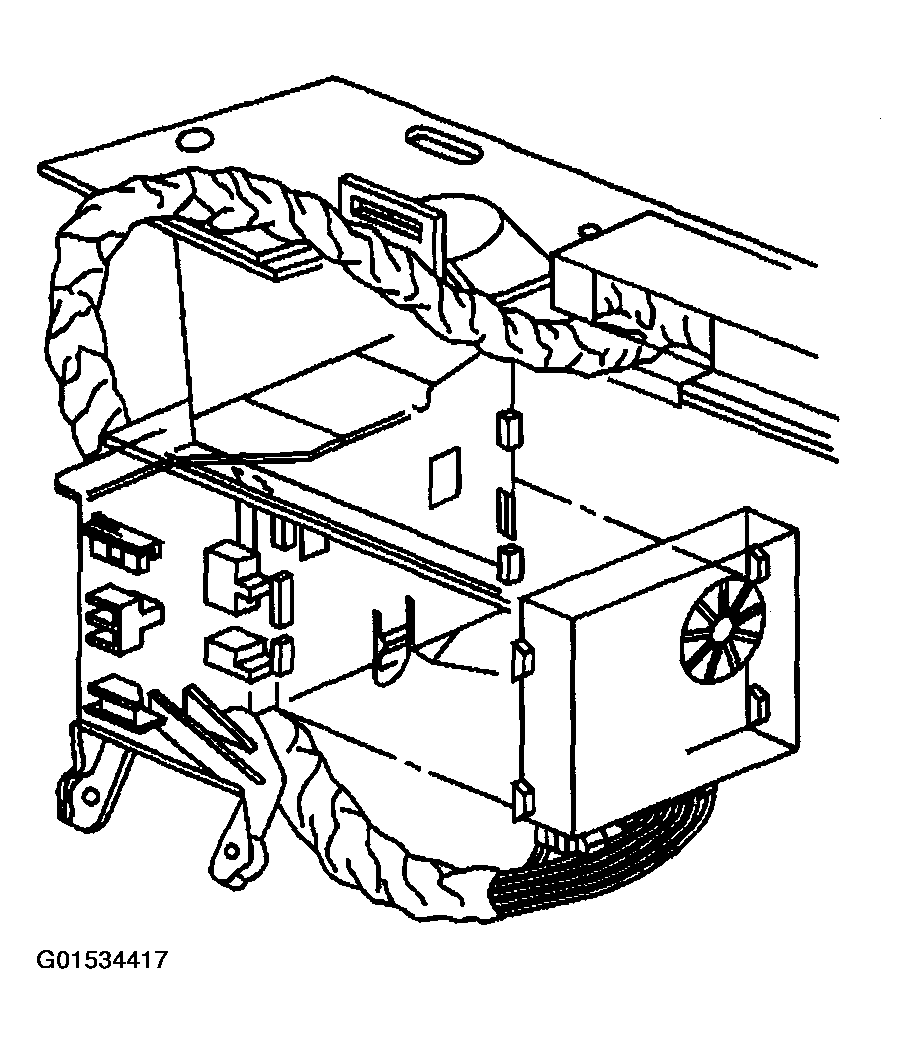

- Push the release tab on the bottom of the bracket to release the body control module.
- Slide the body control module from the bracket.

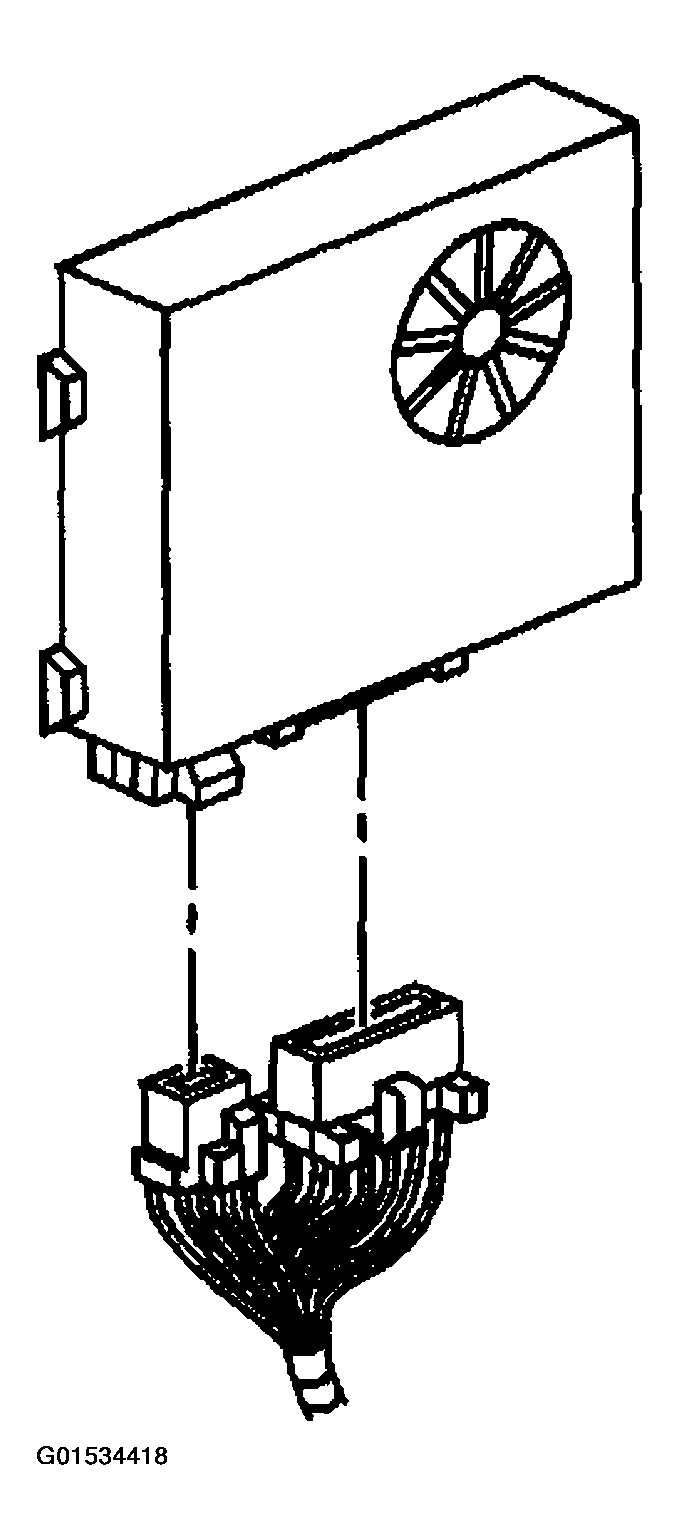

- Disconnect the electrical connectors.
