Removal Procedure
Important: Do not exchange the vehicle communication interface module with other vehicles. Each vehicle communication interface module has a specific station identification (STID) and electronic serial number (ESN). These identification numbers are stored in the General Motors vehicle history files by VIN and are used by OnStar® and the National Cellular Telephone Network.
- Remove the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .

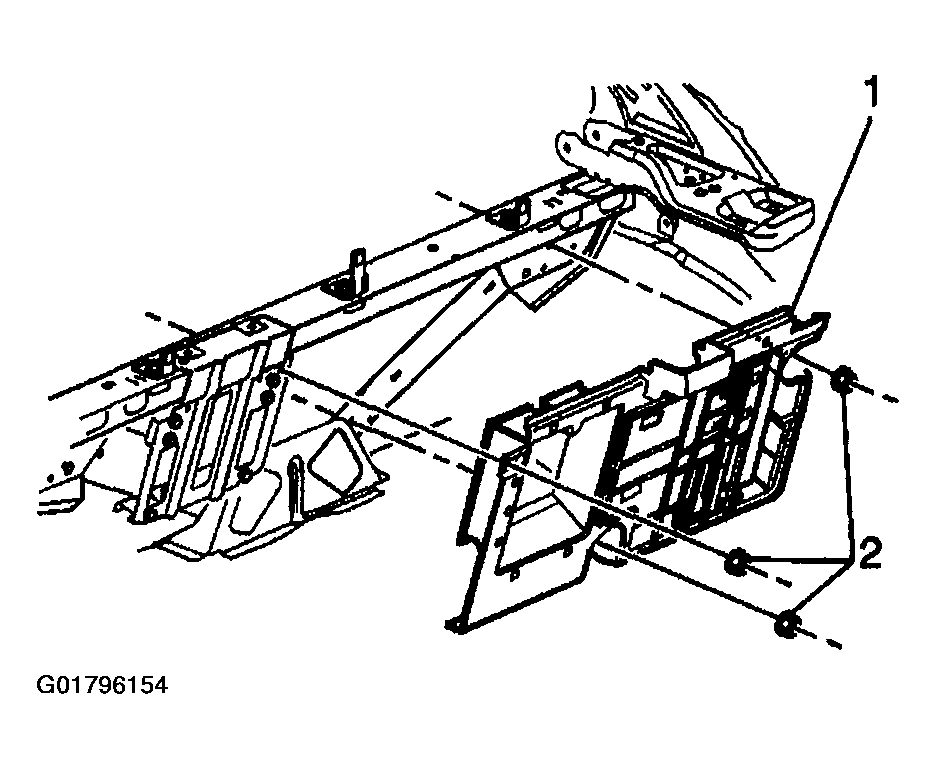

- Remove the electrical component mounting bracket nuts (2).
