2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE
Removal Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left rear sail panel. Refer to SAIL PANEL REPLACEMENT .
- Remove the rear assist handles. Refer to ASSIST HANDLE REPLACEMENT .

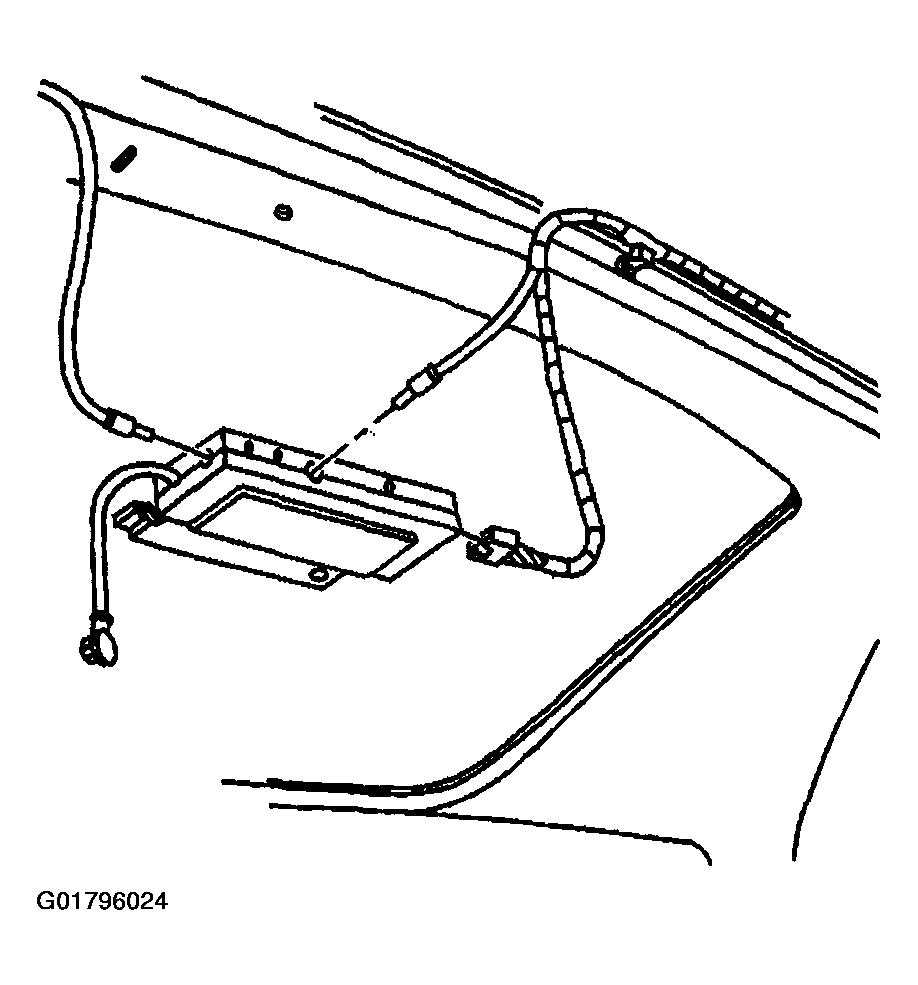

- Disconnect the electrical connectors from the radio antenna module.
- Remove the fastener retaining the radio antenna module to the roof beam.
- Remove the radio antenna module.
