2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE

Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not reuse the old mounting screws. Always install new mounting screws with the new EBCM.
Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

Connect the BPMV electrical connector to the EBCM.

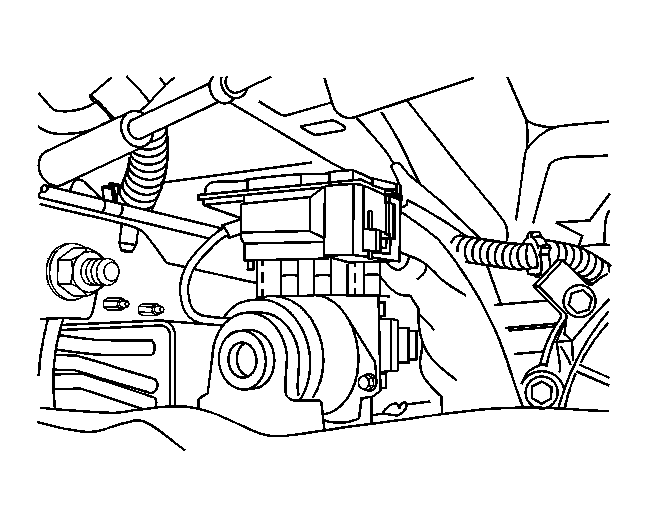

Fig 1: Connecting BPMV Electrical Connector To EBCM

Courtesy of GENERAL MOTORS CORP.

Install the EBCM to the BPMV.

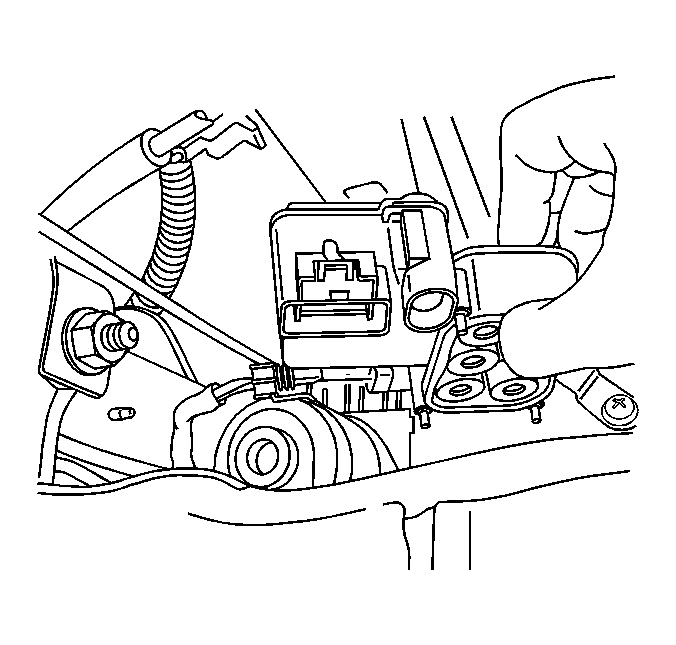

Fig 2: Installing EBCM To BPMV

Courtesy of GENERAL MOTORS CORP.
