Installation Procedure
- Clean the BPMV surface with alcohol using a clean rag.
- Install the EBCM (1) to the BPMV.NOTE: Refer to FASTENER NOTICE .

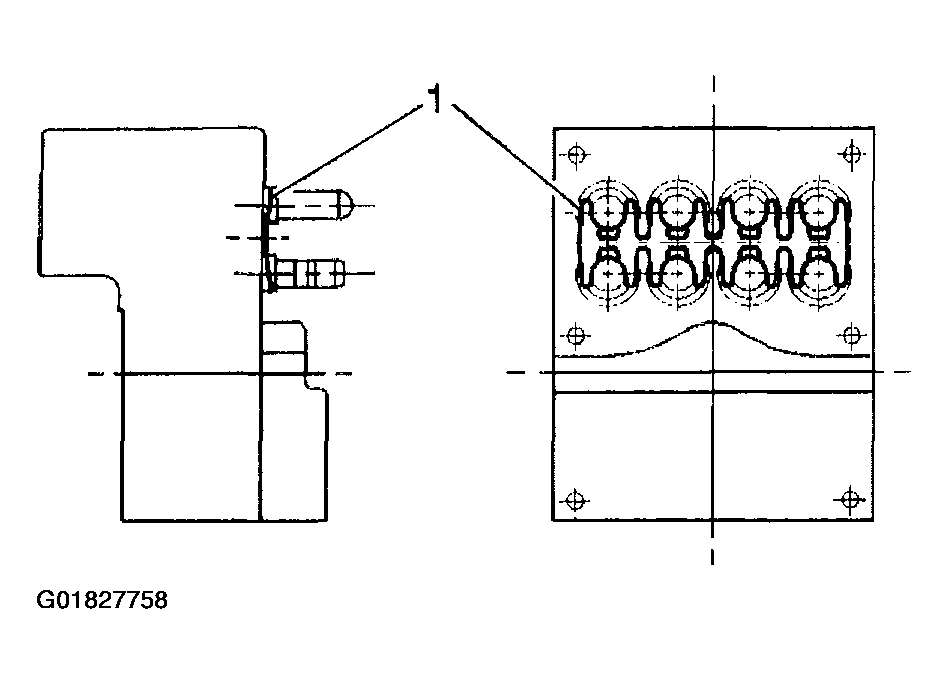

- Install the 6 screws that attaches the EBCM to BPMV.
Tighten
- Tighten the top 4 mounting screws to 2.9 N.m (26 lb in). Tighten screws in an X pattern.
- Tighten the bottom 2 mounting screws to 2.9 N.m (26 lb in).
- Install the cylinder master to the brake booster.

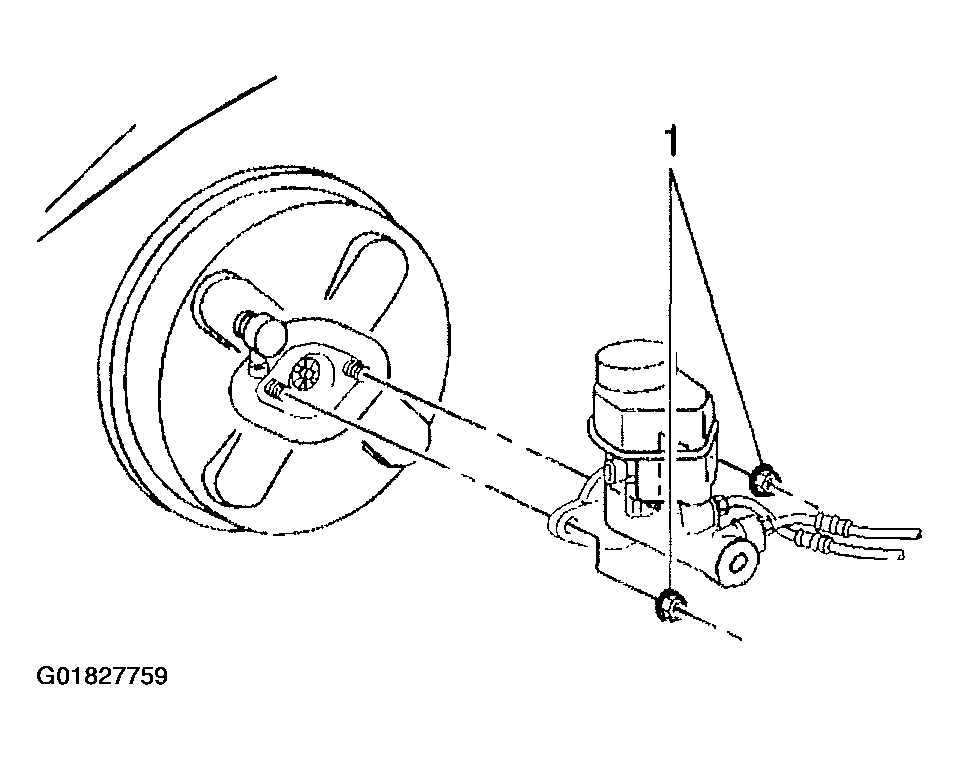

- Install the master cylinder mount nuts (1).
Tighten
Tighten the 2 nuts to 25 N.m (18 lb ft).
- Connect the pump motor connector to the bottom of the EBCM.

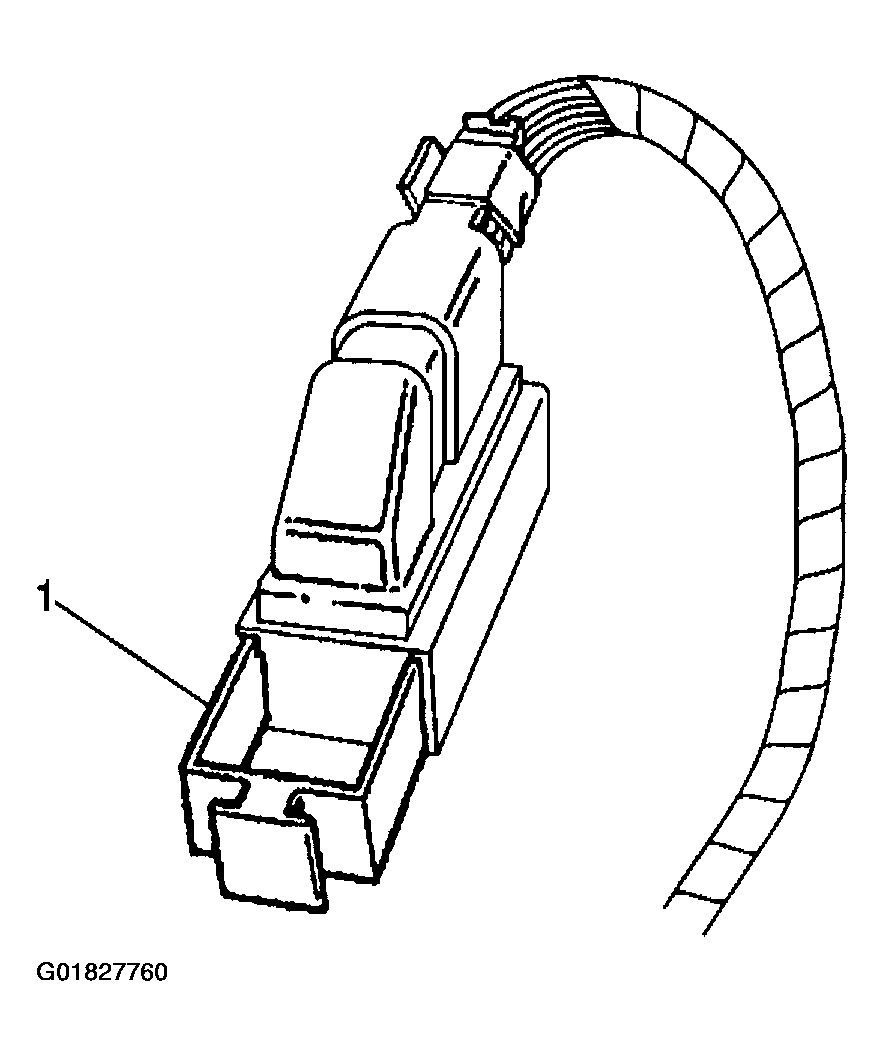

- Connect the EBCM harness connector and depress the locking tab (1) to secure.
- Install the air cleaner housing.
- Turn the ignition switch to the RUN position, do not start engine.
- Perform the DIAGNOSTIC SYSTEM CHECK - ABS .
