Installation Procedure
Important: Rotate the oil pump driveshaft as necessary in order to obtain the engagement with the oil pump drive.

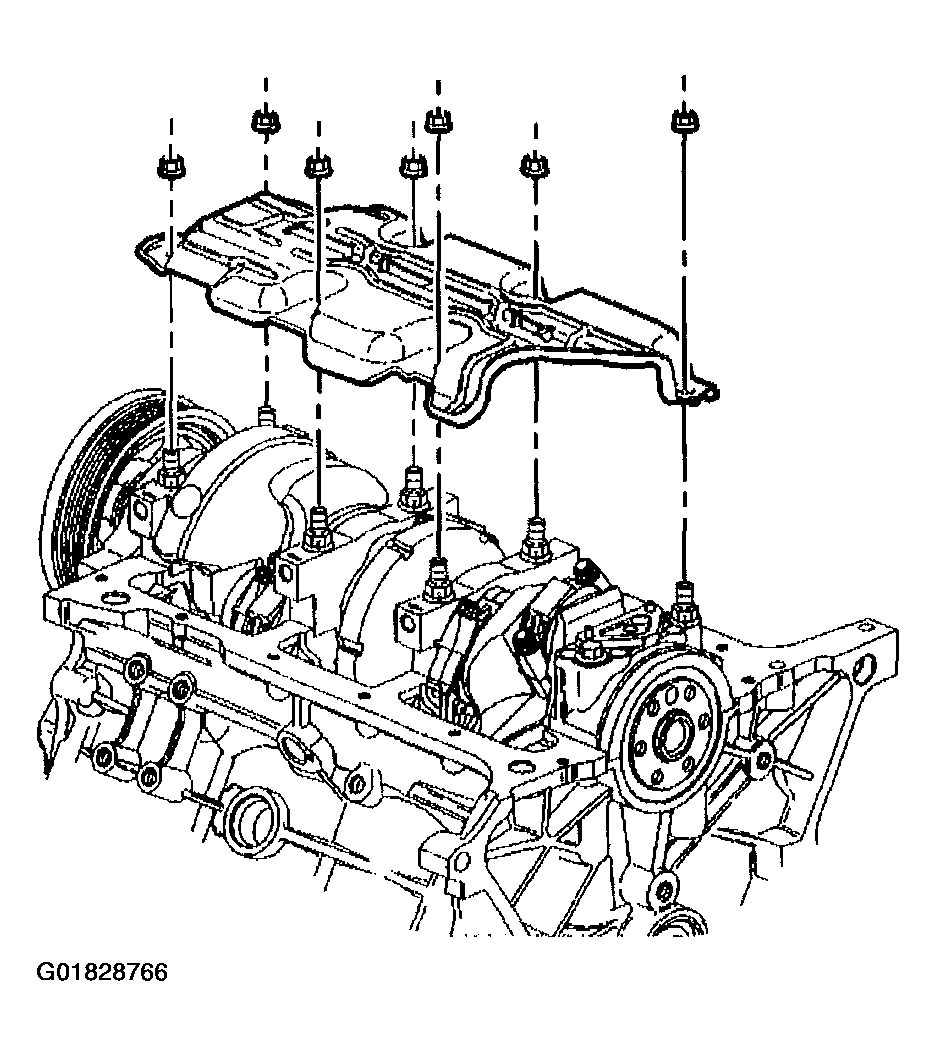

- Install the crankshaft oil deflector.NOTE: Refer to FASTENER NOTICE .
- Install the crankshaft oil deflector nuts.
Tighten
Tighten the nuts to 25 N.m (18 lb ft).

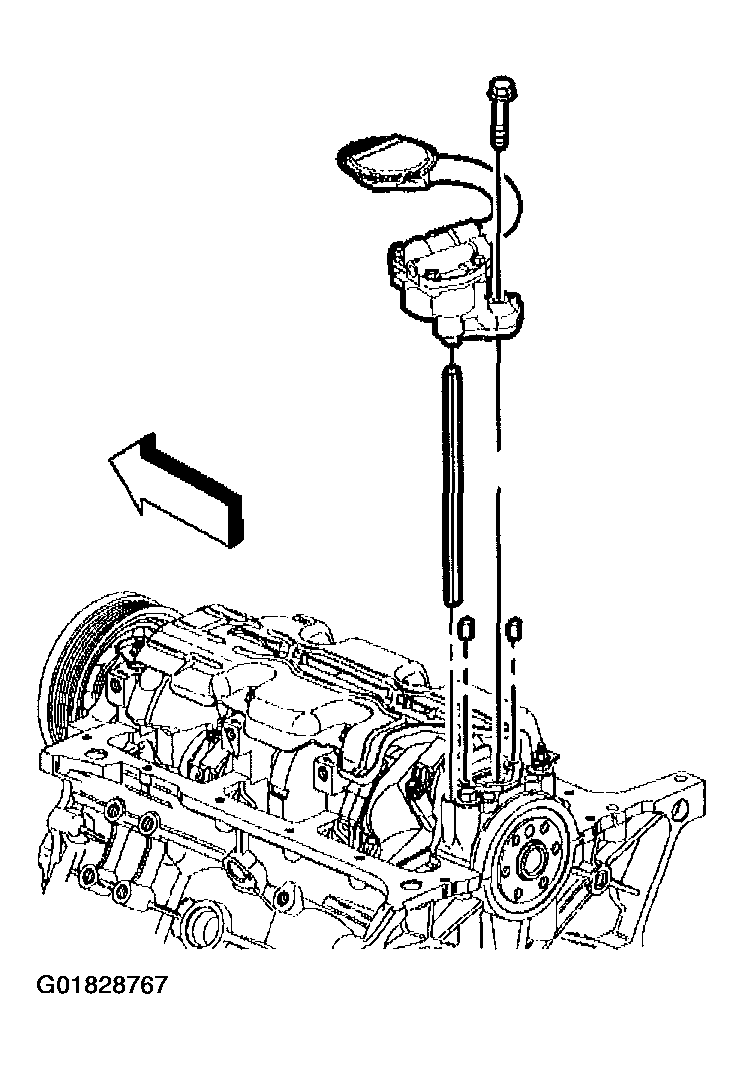

- Install the oil pump and oil pump drive shaft.
- Install the oil pump bolt.
Tighten
Tighten the bolt to 41 N.m (30 lb ft).
- Install the oil pan. Refer to Oil Pan Replacement .
