Installation Procedure
- Install the engine mount strut.NOTE: Refer to FASTENER NOTICE .

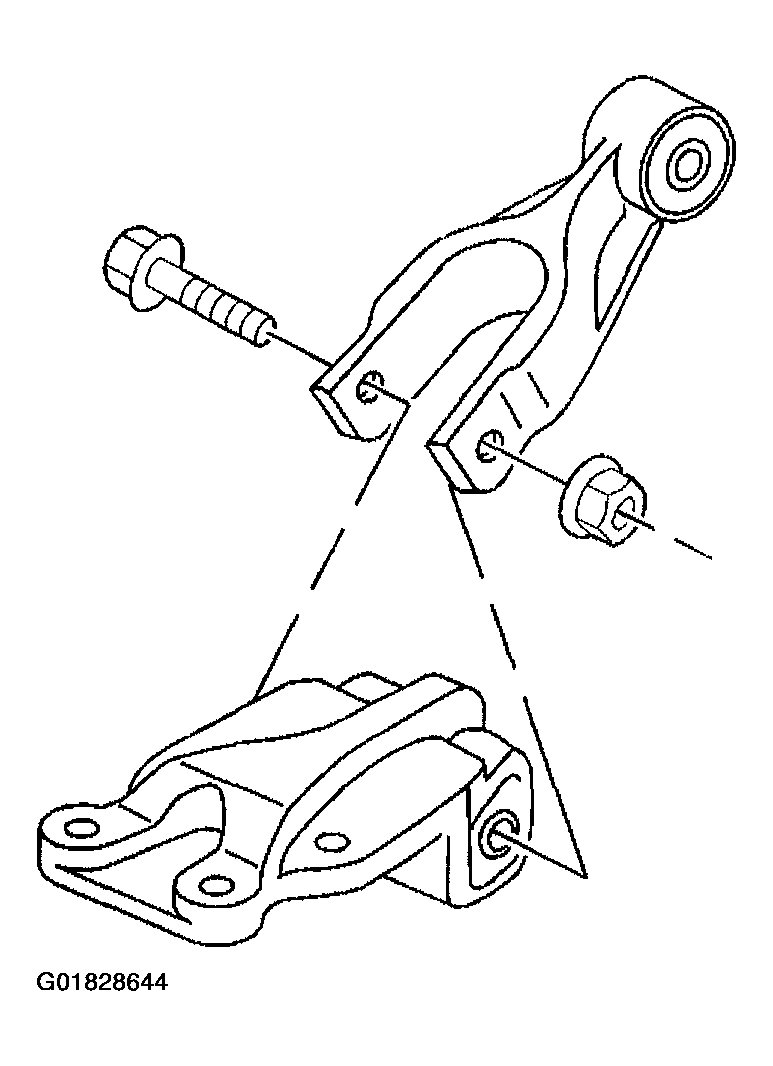

- Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.
Tighten
Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

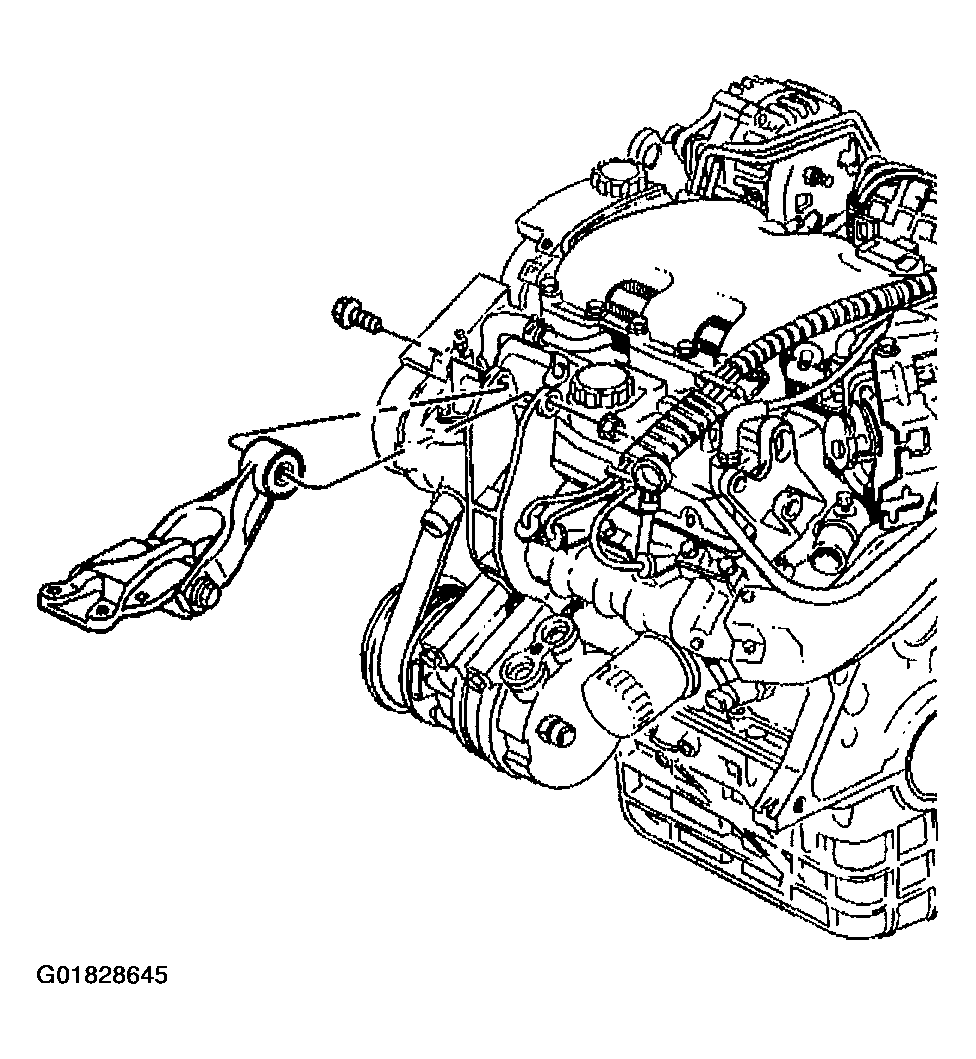

- Install the bolt and the nut to the engine mount strut at the right engine mount strut bracket on the engine.
Tighten
Tighten the engine mount strut nut to 48 N.m (35 lb ft).
