Test Description

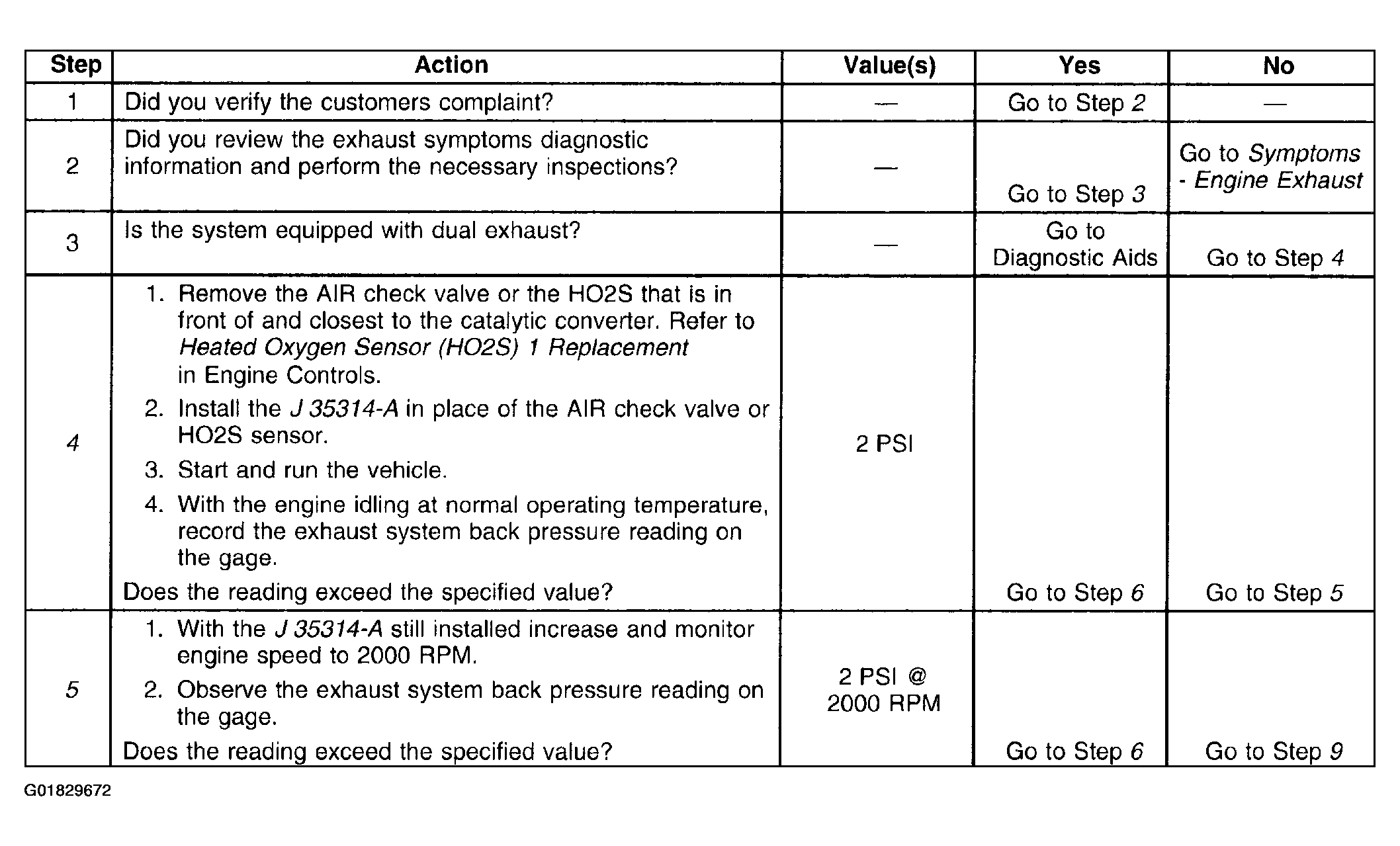

The numbers below refer to the step numbers on the diagnostic table.
- 4. The exhaust system has very low back pressure under normal conditions. If the exhaust system is restricted, a significant increase in the exhaust pressure is noticed on the J 35314-A
.
Removing the AIR check valve or HO2S sensor may set a DTC. When finishing this diagnostic table, be sure to clear all codes.
- 5. If high back pressure is not found at idle, increasing the engine speed may help find a restriction.
Perform operational check before returning vehicle to customer.
- 6. This step will isolate the catalytic converter from the remainder of the exhaust system.
- 9. Confirming that the condition has been fixed is essential. If the symptom still exists and the vehicle has a dual exhaust system, proceed to Step 2 and repeat diagnostic procedure on the opposite exhaust pipe.
