2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the air cleaner and duct assembly.
- Drain the coolant until the coolant level is below the thermostat. Refer to Draining and Filling Cooling System .
- Remove the crossover exhaust pipe. Refer to EXHAUST CROSSOVER PIPE REPLACEMENT .
- Remove the radiator hose from the thermostat housing. Refer to RADIATOR HOSE REPLACEMENT - Inlet .

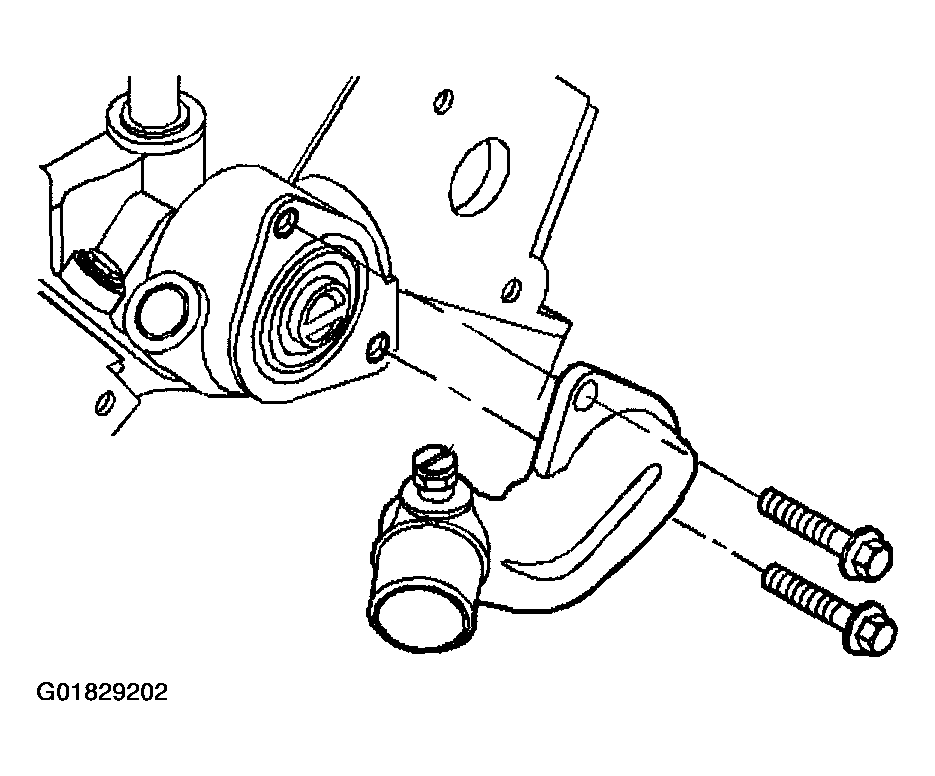

- Remove the thermostat housing bolts and clean any sealer from the bolt threads.
- Remove the thermostat housing and gasket.

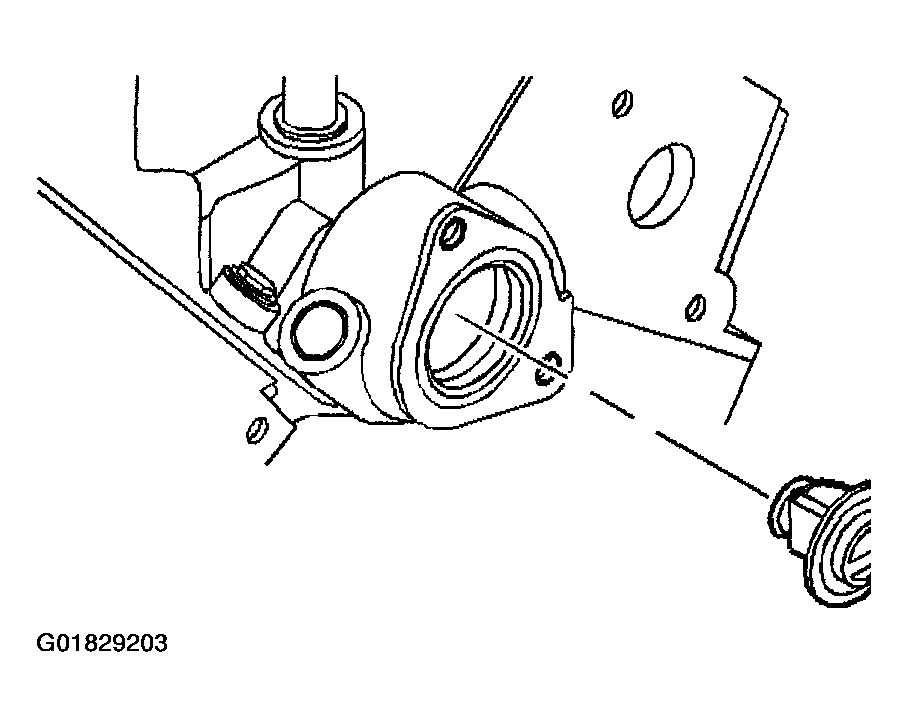

- Remove the thermostat.
- Clean the mating surfaces.
