Installation Procedure
- Apply GM P/N 9985164, or equivalent, to the coolant heater seal.

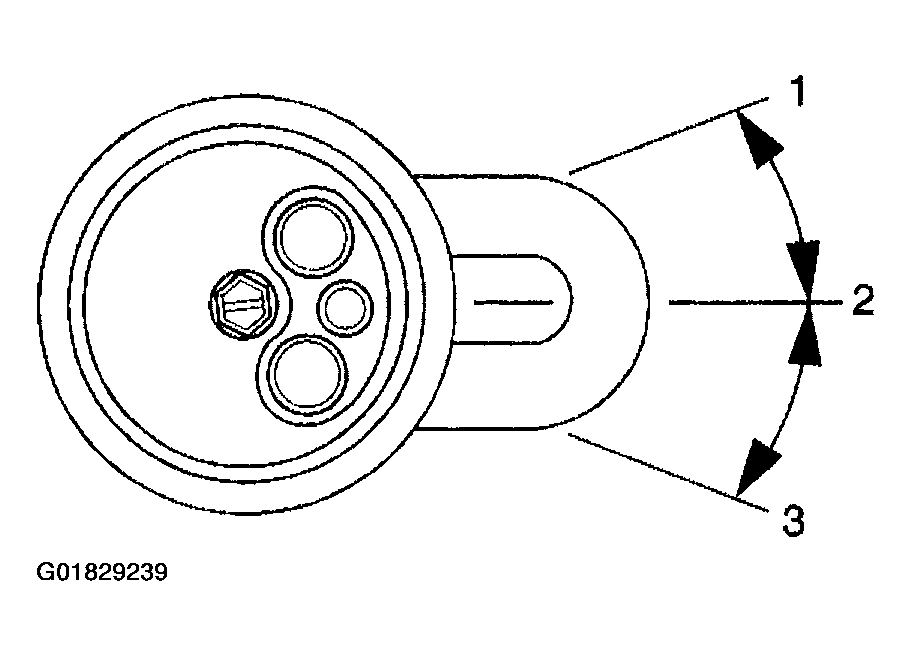

- Ensure that the coolant heater element is horizontal and pointed toward the front of the engine.
The 3 o'clock position (2) is DESIRED.
The 2 o'clock position (1) and the 4 o'clock position (3) are acceptable.

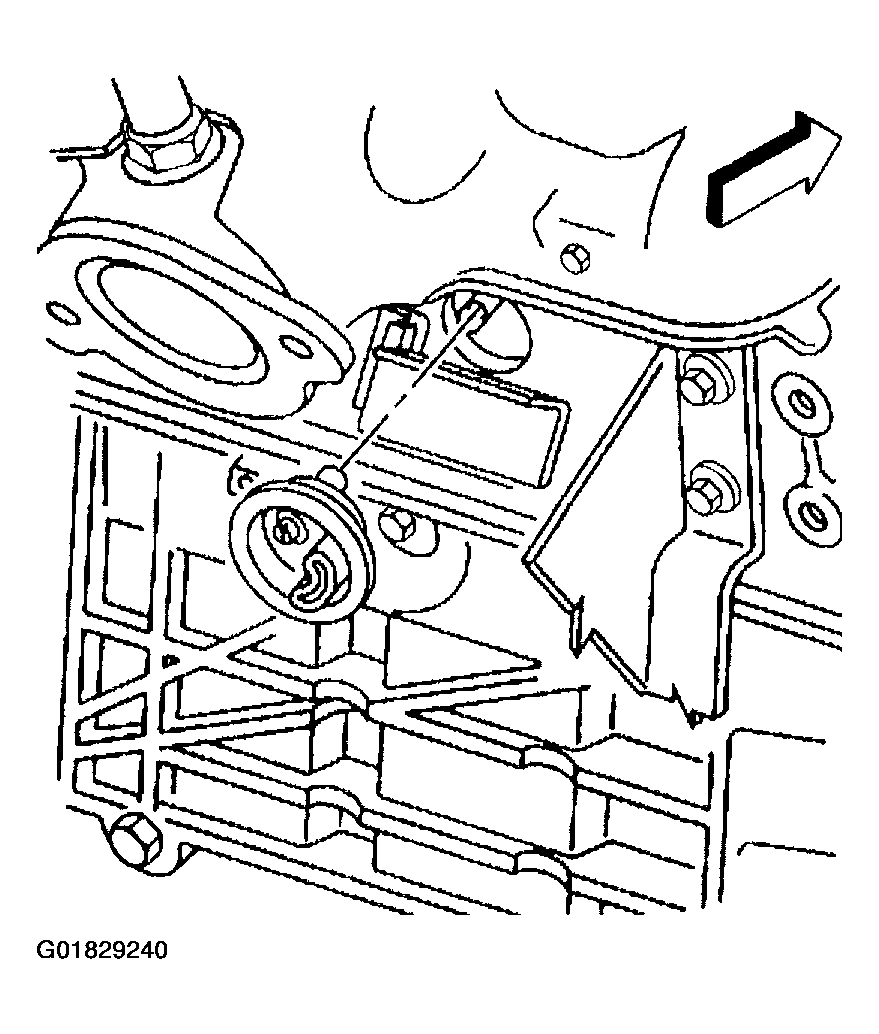

- Install the coolant heater.NOTE: Refer to FASTENER NOTICE .
- Install the coolant heater bolt/screw.
Tighten
Tighten the coolant heater bolt/screw to 2 N.m (18 lb in).

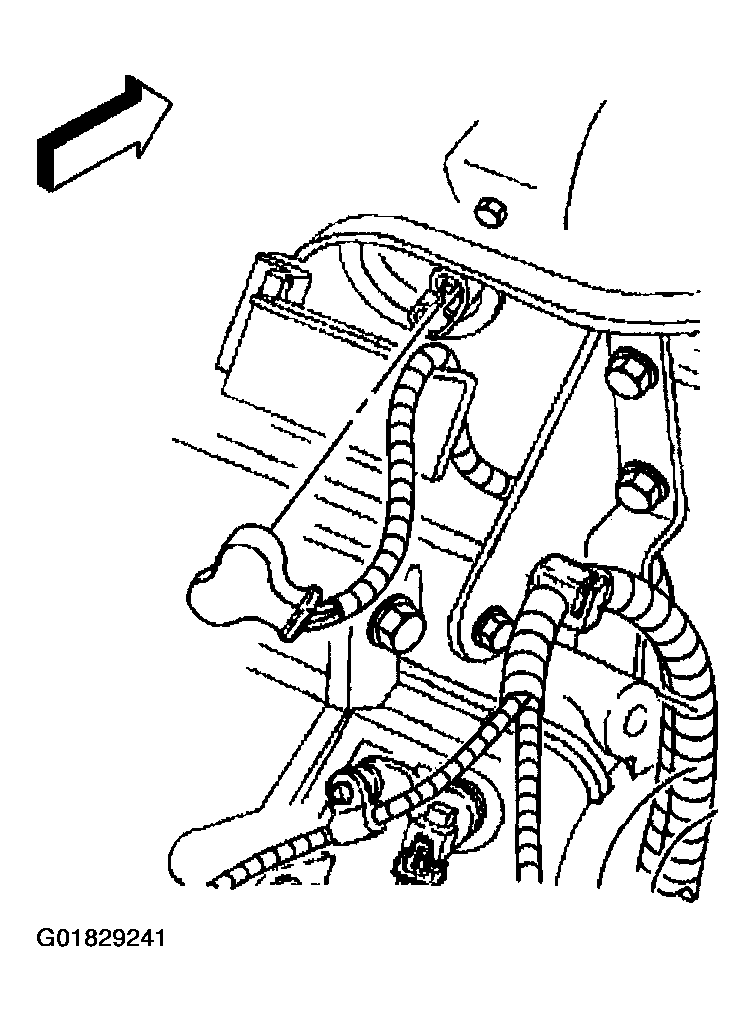

- Install the engine coolant heater cord to the engine coolant heater.
- Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
- Install the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
- Lower the vehicle.
- Fill the engine cooling system. Refer to Draining and Filling Cooling System .
