2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .

Fig 1: Removing Instrument Panel Accessory Trim Plate
Courtesy of GENERAL MOTORS CORP.
Remove the bolts/screws from the switch bank to instrument panel.
Pull straight out from the instrument panel in order to remove the switch bank from the instrument panel.

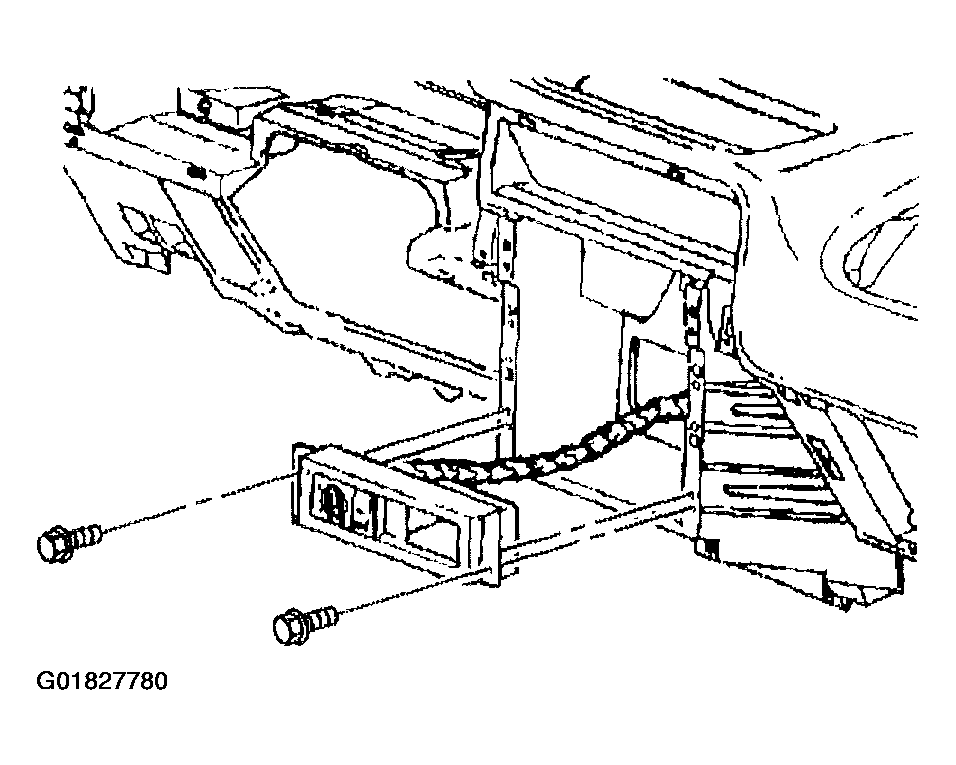

Fig 2: Removing Bolts/Screws, Switch Bank & Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors.

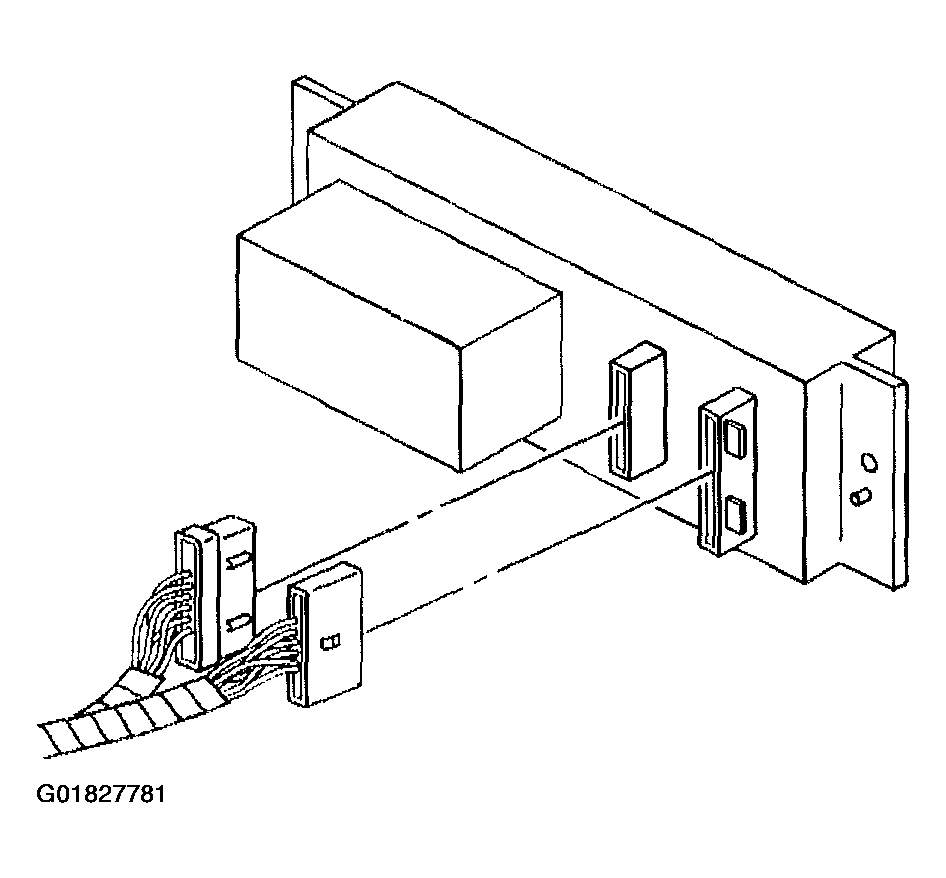

Fig 3: Disconnecting Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
