2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE

Installation Procedure

Slide the module into the mounting bracket and push until the module is fully seated.

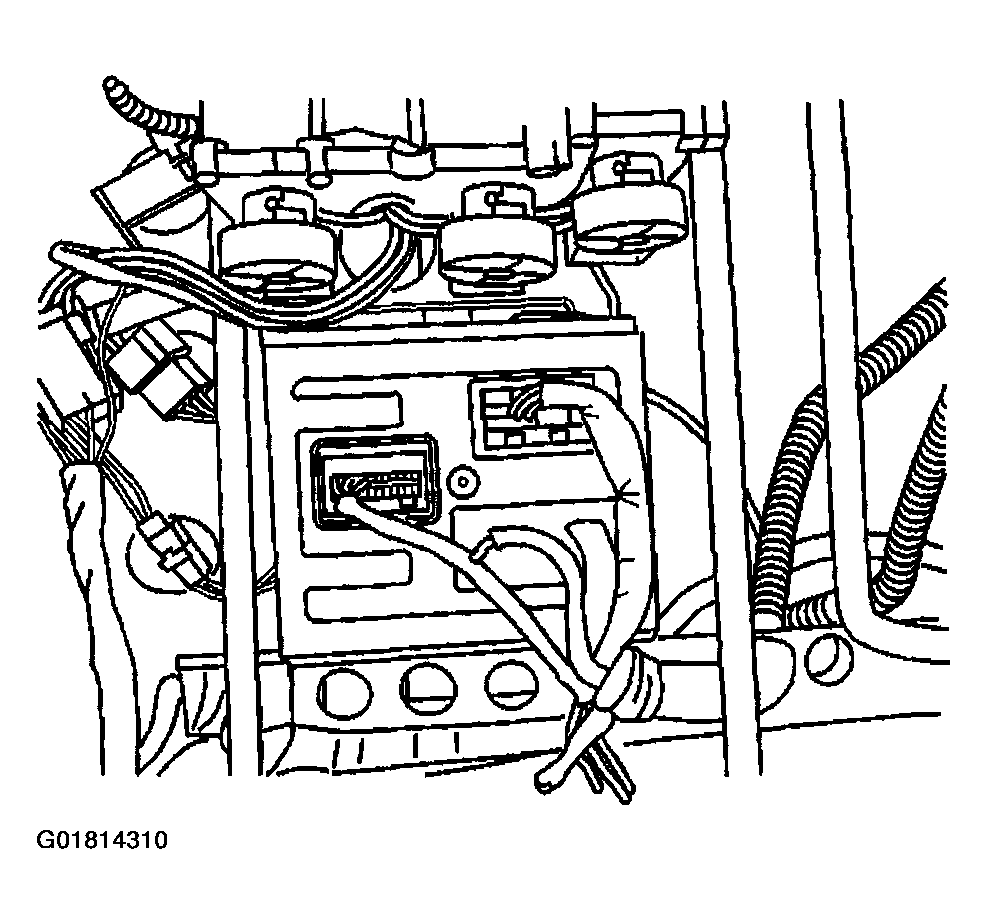

Fig 1: Installing Module Toward Rear Of Seat
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors.

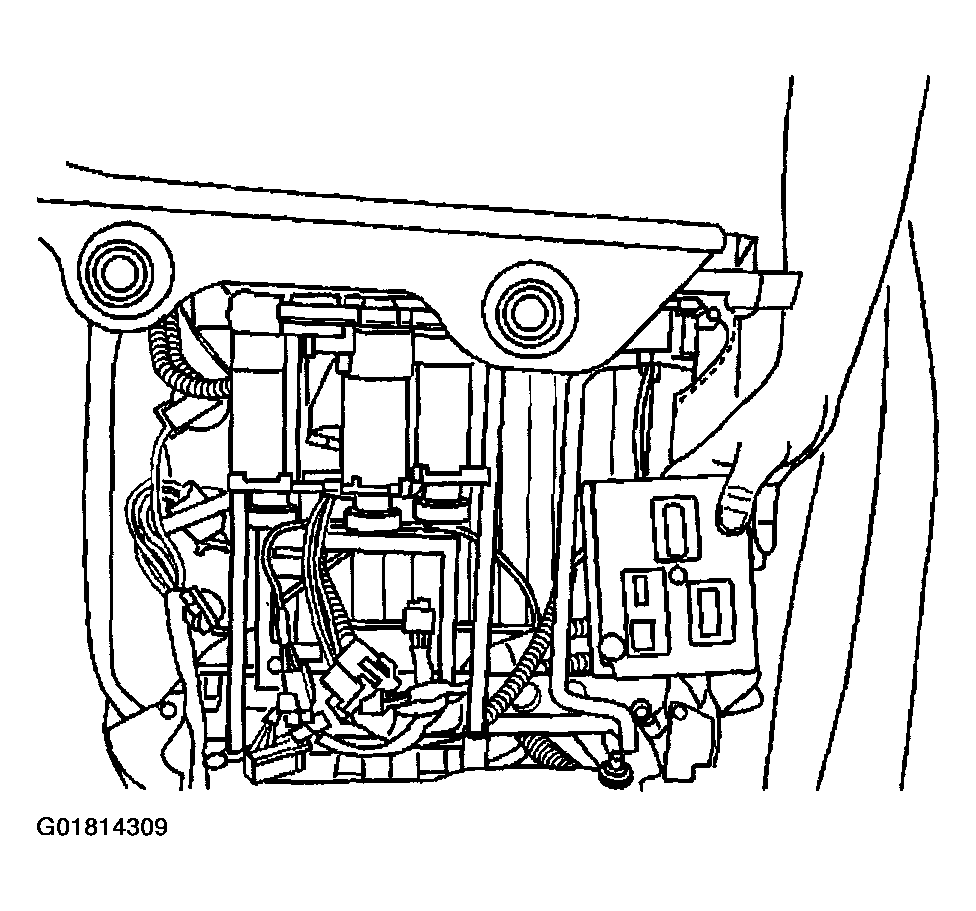

Fig 2: Installing Memory Seat Control Module
Courtesy of GENERAL MOTORS CORP.
Install the drivers seat.
Enable the SIR system. Refer to ENABLING THE SIR SYSTEM .
