Removal Procedure
- Remove the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL .
- Remove the upper trim pad. Refer to TRIM PAD REPLACEMENT - IP UPPER .
- Disconnect the red 32-way electrical connectors and the blue 32-way electrical connector.

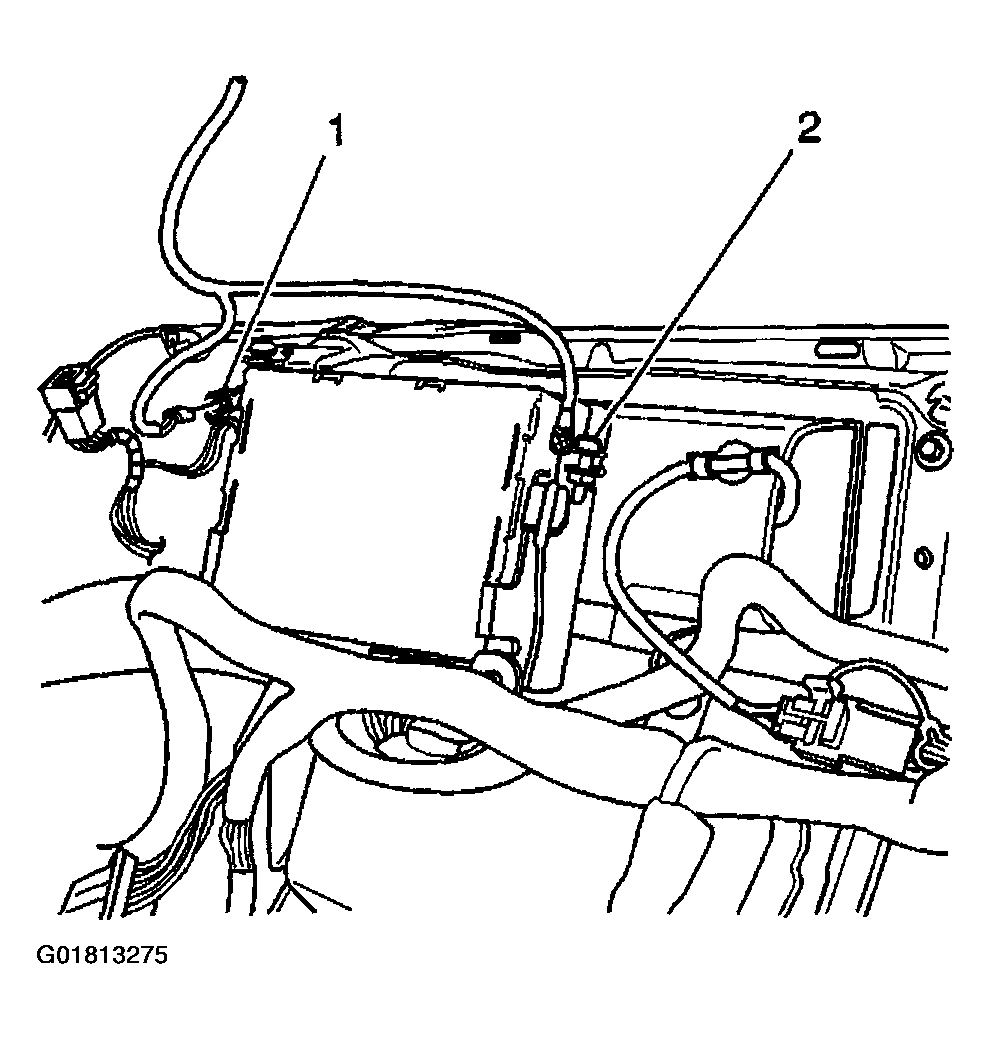

- Disconnect the global position system (GPS) cables (1) from the VIU.
Important: Do NOT remove the VIU/VCU bolts from the bracket.
- Loosen the 4 bolts and release the hook tab by rotating the module upwards in order to remove the VIU from the bracket.
- The old VIU must be returned for core credit.
