2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
Push the release tab on the bottom of the bracket to release the body control module.
Slide the body control module from the bracket.

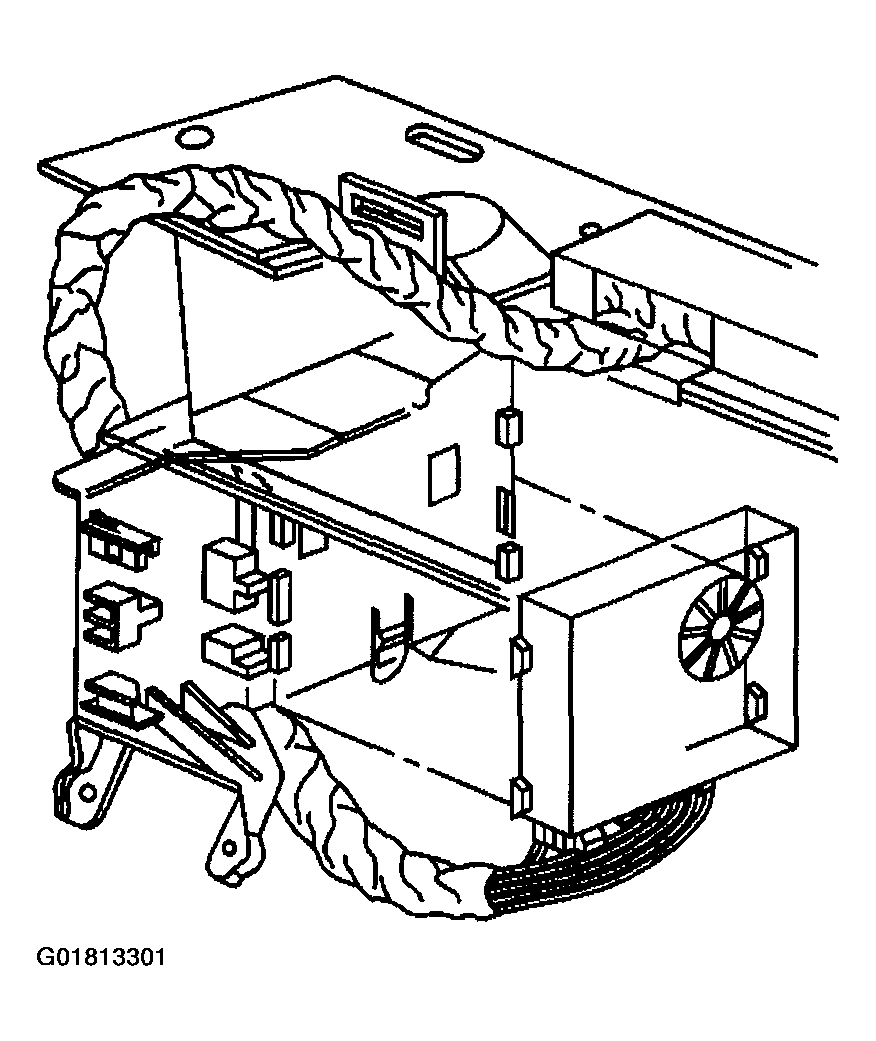

Fig 1: Removing Body Control Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors.

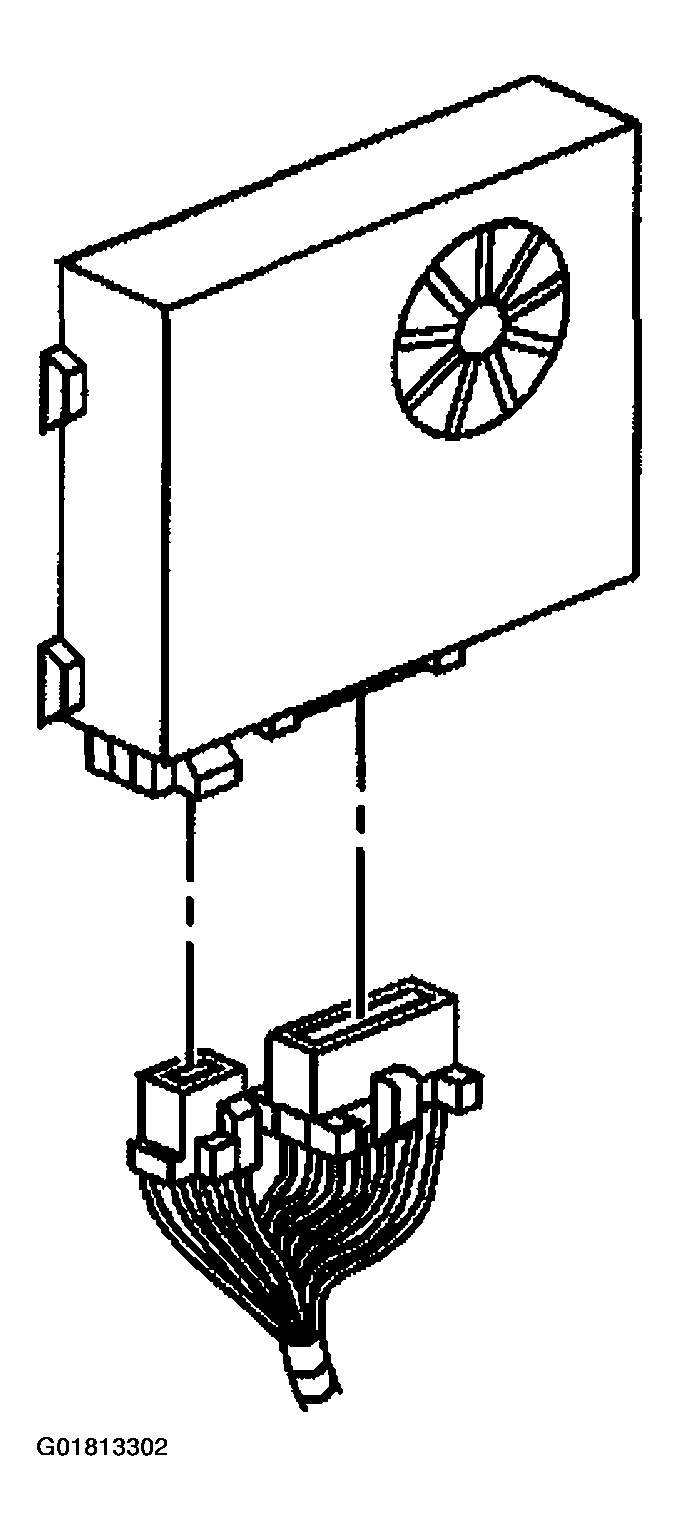

Fig 2: Disconnecting Body Control Module Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
